2013 GMC Terrain Powertrain and Engine Control Module Replacement Guide
In the 2013 GMC Terrain the Powertrain Control Module (PCM) and Engine Control Module (ECM) manage engine timing, fuel delivery, emissions and transmission coordination. Failure of either unit can cause no‑start conditions, erratic idle, loss of power, or communication errors with diagnostic tools.
Quick Summary
- PCM or ECM failure often triggers intermittent no‑crank or MIL illumination.
- Replacement typically requires 1.5 hours for each module plus relearn time.
- Electrostatic discharge can damage the ECM; avoid touching connector pins.
- Factory service bulletins note corrosion‑related communication loss.
When a 2013 GMC Terrain exhibits random no‑crank events, warning lights or diagnostic trouble codes, the underlying issue may involve the powertrain or engine control modules. This guide explains what these modules do, how to replace them, and what programming steps are needed afterward. By following the outlined procedures you can understand the labor involved, avoid common pitfalls, and know why Flagship One units can simplify the reprogramming requirement.
What the PCM Does in a 2013 GMC Terrain
The Powertrain Control Module in the 2013 GMC Terrain directs both engine and transmission functions, while the Engine Control Module focuses on engine timing, fuel injection and emissions control. Together they ensure smooth acceleration, proper gear shifts and compliance with emissions standards. Proper operation is critical because any loss of communication can halt engine start or cause erratic performance. replacement engine computers for the 2013 GMC Terrain are engineered to match these exact control strategies.

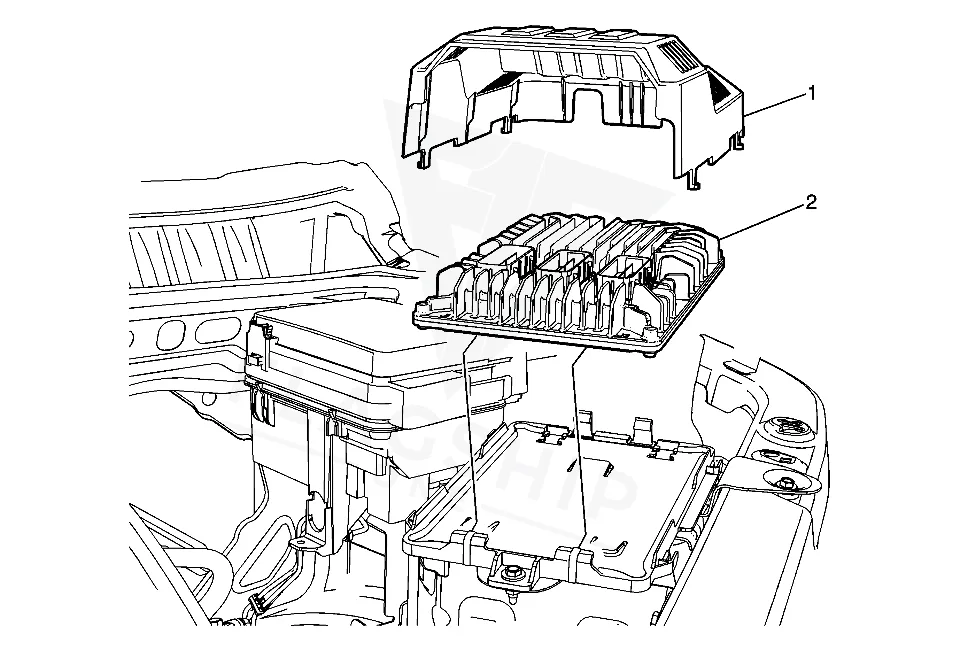

Where the PCM Is Located and What Replacement Involves
The PCM and ECM are mounted within the engine bay and are accessed by disconnecting the negative battery cable as a safety precaution. Removing a module typically requires 1.5 hours of labor, followed by a 0.5‑hour relearn procedure for each unit. The factory cautions against touching the connector pins to prevent electrostatic damage, and stresses the need to secure any added electrical equipment to the 12 V battery to avoid voltage spikes during the install.
How to Reach the PCM on the 2013 GMC Terrain
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Release the plastic retaining tabs.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.5 hr |
Programming Requirements After Replacement
After installing a new ECM in a 2013 GMC Terrain you must capture the existing module data with a scan tool, then use the correct calibration and programming equipment to reprogram the unit. Flagship One supplies a VIN‑programmed replacement unit, so the reprogramming step is already completed before you receive it. The same applies to the PCM, which also requires a relearn after installation.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in this vehicle include intermittent no‑crank or no‑start events, sudden illumination of the MIL, and loss of communication with scan tools. You may also see shifting anomalies or engine stutter. When the diagnostic trouble code Powertrain Control Module Clock Signal Failure appears, it often points directly to a control module issue that warrants further inspection.
Module Trouble Codes on the 2013 GMC Terrain
The following internal trouble codes are commonly logged by the 2013 GMC Terrain when its control modules experience faults:
Factory Service Bulletins Worth Knowing
Service bulletin #09-06-03-004 (Nov 28 2011) addresses intermittent no‑crank, MIL illumination and communication loss caused by connector corrosion; the recommended fix is to disconnect the affected connector and apply dielectric lubricant. Bulletin #PI0800C (Oct 14 2013) covers DTC C0544 and U0415 that will not clear and keep the MIL on, indicating a need for module diagnostics and possible replacement.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-06-03-004 | Intermittent No Crank/No Start, No Module Communication, MIL, Warning Lights, Vehicle Messages | Some customers may comment on any of the following conditions: An intermittent no crank/no start Intermittent malfunction indicator lamp (MIL) illumination… |
| — | DTC C0544 and/or U0415 Set and Will Not Clear, Malfunction Indicator Lamp (MIL) On – (Oct 14, 2 | — |
Protecting the PCM in Your 2013 GMC Terrain
- Maintain a healthy charging system to avoid voltage irregularities.
- Keep ground connections and module connectors clean and securely fastened.
- Use proper surge protection when jump‑starting to prevent spikes.
- Address diagnostic codes promptly before they lead to module failure.
- Inspect connector seals regularly to keep moisture out.
Frequently Asked Questions
What are the typical labor times for replacing the PCM in a 2013 GMC Terrain?
Factory labor guides assign 1.5 hours for the powertrain control module removal and installation, plus an additional 0.5 hours for the required relearn procedure.
Do I need special equipment to program the ECM after replacement in this model?
Yes, the factory requires the correct programming tools, the proper calibration file, and a scan tool to capture existing data before reprogramming the ECM.
Can corrosion on the module connector cause a no‑start condition in the 2013 GMC Terrain?
Indeed, Service Bulletin #09-06-03-004 notes that fretting corrosion at the connector can lead to intermittent communication loss and a no‑crank situation.
When the control modules in a 2013 GMC Terrain need attention, you can choose a factory‑refurbished unit or a Flagship One replacement. Both options meet the vehicle’s specifications, but a Flagship One unit arrives VIN‑programmed, eliminating the need for post‑install reprogramming and reducing shop time.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 GMC Terrain with a lifetime warranty, free shipping and no core charge. The full GMC Terrain module lineup covers other engine configurations as well.
Final Thoughts
If your 2013 GMC Terrain is experiencing intermittent start issues or warning lights, evaluating the PCM and ECM is a logical next step. Consider a Flagship One replacement to simplify the reprogramming requirement and get your vehicle back on the road.
