2016 GMC Terrain Powertrain and Engine Control Module Guide
In the 2016 GMC Terrain, the powertrain control module (PCM) and engine control module (ECM) manage fuel delivery, ignition timing, and transmission shift logic. Failure of either unit can cause loss of power, stalling, or diagnostic trouble codes such as P0601, often requiring removal, reprogramming, and relearn procedures to return the vehicle to normal operation.
Quick Summary
- PCM or ECM replacement typically needs 1.5 hours of labor per unit.
- Both modules require a 0.5‑hour relearn after installation.
- Electrostatic precautions include disconnecting the negative battery and avoiding contact with connector pins.
When a 2016 GMC Terrain experiences persistent engine or transmission glitches, the powertrain and engine control modules are common culprits. This guide explains what these computers do, how to replace them safely, and what programming steps follow. You will learn the labor expectations, required cautions, and how Flagship One’s VIN‑programmed units simplify the process, helping you decide between a new repair or a refurbished replacement.
What the PCM Does in a 2016 GMC Terrain
The PCM and ECM in the 2016 GMC Terrain act as the vehicle’s brain, processing sensor data to control fuel injection, ignition timing, and transmission shift points. Their proper operation ensures smooth acceleration and emissions compliance. Because they store critical calibrations, a faulty module may trigger multiple trouble codes and performance loss. Access to reliable replacement units, such as replacement ECMs for 2016 Terrain, is essential for restoring full functionality.

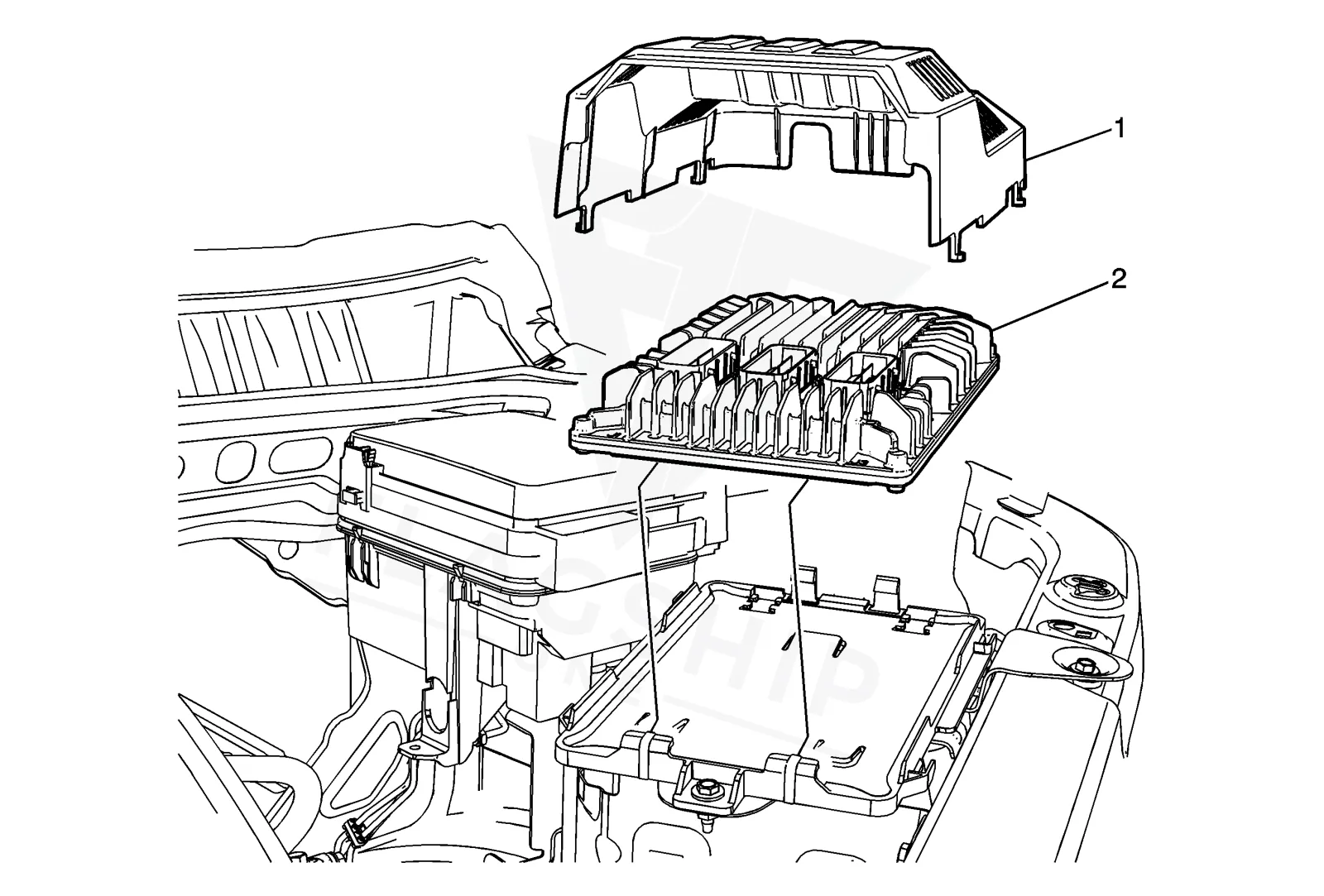

Where the PCM Is Located and What Replacement Involves
The ECM resides within the engine compartment, connected to a harness that must be unplugged after the negative battery cable is removed to prevent static discharge. Labor for removal and installation of the ECM is listed as 1.5 hours. The PCM is similarly located and follows the same safety steps, with a book time of 1.5 hours as well. After either module is fitted, a relearn procedure of 0.5 hours is required for the specific control unit.
How to Reach the PCM on the 2016 GMC Terrain
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Release the plastic retaining tabs.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.5 hr |
Programming Requirements After Replacement
Once the ECM or PCM is installed in the 2016 GMC Terrain, the factory procedure calls for a reprogramming step using the EL‑49642 SPS tool, preceded by a data capture with a scan tool. Flagship One supplies a a VIN-programmed replacement unit that arrives already calibrated, eliminating the need for on‑site programming.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2016 GMC Terrain include a no‑start condition, intermittent stalling, and erratic shift behavior. You may also see dead scan‑tool communication or see trouble codes like P0601 communication failure appear during diagnostics. Prompt attention to these symptoms can prevent further drivetrain issues.
Module Trouble Codes on the 2016 GMC Terrain
The following internal trouble codes are commonly logged by the control modules in the 2016 GMC Terrain:
Factory Service Bulletins Worth Knowing
Service bulletin #PIP5373B, dated June 11, 2018, addresses programming errors E4491 and E4423 for the ECM. This bulletin provides the recommended reprogramming steps to correct the issue.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Program ECM Error E4491/E4423 – (Jun 11, 2018) | — |
Protecting the PCM in Your 2016 GMC Terrain
- Maintain a healthy charging system to avoid voltage spikes.
- Inspect and clean ground connections regularly.
- Use proper jump‑start techniques to protect electronic modules.
- Address any diagnostic codes promptly before they recur.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What is the typical labor time to replace the ECM in a 2016 GMC Terrain?
The factory book time for removing and installing the engine control module is listed as 1.5 hours, plus an additional 0.5 hours for the relearn procedure.
Do I need special tools to program the PCM after replacement on a 2016 GMC Terrain?
Yes, the EL‑49642 SPS programming support tool is required for reprogramming the powertrain control module according to the factory procedure.
Can a VIN‑programmed replacement unit eliminate the need for on‑site reprogramming?
Flagship One’s VIN‑programmed modules arrive pre‑calibrated, so the typical reprogramming step is already completed before installation.
When the PCM or ECM in your 2016 GMC Terrain fails, you can choose a factory‑new repair or a refurbished replacement that meets the same specifications. Both options require the same safety precautions and relearn steps, but a pre‑programmed unit from Flagship One can reduce shop time and simplify the process.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 GMC Terrain with a lifetime warranty, free shipping and no core charge. The full GMC Terrain module lineup covers other engine configurations as well.
Final Thoughts
The powertrain and engine control modules are vital to the 2016 GMC Terrain’s performance. Whether you opt for a new repair or a Flagship One refurbished unit, following the proper removal, programming, and relearn procedures will help restore reliability. Consider your service goals and choose the path that best fits your schedule.
