2014 GMC Terrain 2.4L PCM/ECM Replacement Overview

If your 2014 GMC Terrain 2.4L is exhibiting sluggish acceleration, a check engine light, or intermittent stalling, the culprit may be the PCM or ECM. Understanding how these control units operate and how to replace them without damaging the vehicle’s electronics is essential for any owner or technician. This guide explains the location, labor involved, factory programming steps, common failure symptoms, and preventive measures specific to the Terrain’s 2.4L powertrain. By the end you’ll know what to expect during a module swap and how to keep your vehicle running smoothly.

What the PCM Does in a 2014 GMC Terrain

The PCM in the 2014 GMC Terrain 2.4L coordinates the engine and transmission to deliver efficient power. It processes sensor inputs, calculates ignition timing, manages fuel injection, and controls shift logic. The ECM works closely with the PCM, focusing on engine‑specific functions such as air‑fuel ratio, idle control, and emission management. replacement engine computers for the 2014 GMC Terrain 2.4L The module’s reliability is critical; a fault can trigger the MIL, reduce power, or cause erratic shifting, impacting both performance and safety.

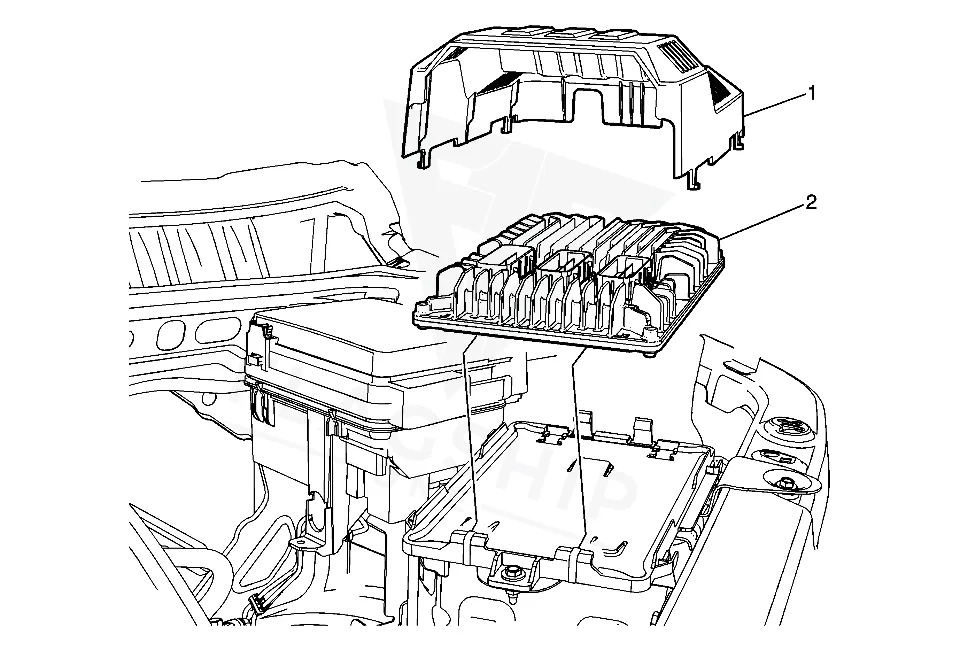

Where the PCM Is Located and What Replacement Involves

The PCM is mounted near the firewall, accessed by removing the under‑hood panel. Removing the unit requires 1.5 hours of labor. After removal, a 0.5 hour relearn restores the system’s baseline parameters. The ECM sits adjacent to the PCM; its removal also takes 1.5 hours, followed by a 0.5 hour relearn. The procedure mandates disconnecting the negative battery cable before work begins, and the connector pins must remain untouched to avoid electrostatic discharge damage.

Programming Requirements After Replacement

Once the PCM or ECM is installed, the factory procedure requires a relearn sequence to re‑establish communication between modules. Flagship One units arrive VIN‑programmed, so the relearn step is effectively complete. During the installation you should still run a basic diagnostic scan to confirm module readiness. VIN‑programmed replacement unit ensures the unit is calibrated to your vehicle’s specific parameters from the start.

Symptoms of a Failing PCM

Common signs of a failing PCM or ECM in the 2014 GMC Terrain 2.4L include a check engine light, reduced power, stalling, or misfires. Scan tools may return codes such as P0601, indicating a communication error within the engine control module. If the MIL remains on after replacement, ensure the relearn procedure was performed and that all connector pins were left undisturbed.

Module Trouble Codes on the 2014 GMC Terrain

The codes below point to the PCM itself rather than to a sensor or circuit it monitors. Each one links through to its full diagnostic guide.

Factory Service Bulletins Worth Knowing

Service Bulletin #09-06-04-026 and #09-06-04-026G address identification of non‑GM engine and transmission calibrations for V6 and V8 gasoline engines using Tech 2 or GDS2. Bulletin #PI1067 highlights MIL activation, reduced power mode, and DTCs related to poor performance or shifting issues.

Protecting the PCM in Your 2014 GMC Terrain

• Maintain a healthy charging system to prevent voltage spikes.
• Keep all electrical connectors clean and free of corrosion.
• Avoid jump‑starting the vehicle with a disconnected battery.
• Address any diagnostic trouble codes promptly to prevent escalation.
• Inspect connector seals for integrity during routine maintenance.
• Use a static‑discharge wrist strap when handling the PCM or ECM.

Frequently Asked Questions

What should I do if my 2014 GMC Terrain 2.4L shows a check engine light after a PCM replacement?

After the replacement, run a diagnostic scan to confirm the module is communicating. If the MIL remains on, verify that the relearn was completed and that all connector pins were left untouched during the swap.

Will a Flagship One PCM replace all functions of the original unit in my 2014 GMC Terrain 2.4L?

Yes, the replacement unit is fully functional and comes VIN‑programmed for the Terrain’s 2.4L powertrain, matching the original module’s performance and calibration.

Can I perform the PCM/ECM replacement myself on the 2014 GMC Terrain 2.4L?

While the labor times are moderate, the procedure requires disconnecting the battery and handling sensitive electronics. It is recommended to have a qualified technician complete the swap to avoid potential damage.

What are the most common failure codes for the ECM in the 2014 GMC Terrain 2.4L?

The most frequently observed codes are P0601 through P0606, indicating various communication or calibration errors within the engine control module.

How long does the relearn process take after installing a new PCM in my 2014 GMC Terrain 2.4L?

The relearn procedure is typically 0.5 hours, during which the PCM recalibrates its baseline parameters to match the vehicle’s current configuration.

Whether you choose a refurbished PCM/ECM or a brand‑new replacement, the 2014 GMC Terrain 2.4L benefits from a module that is pre‑programmed to match your vehicle’s VIN. This eliminates the need for manual re‑calibration and ensures a seamless return to reliable performance.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 GMC Terrain with a lifetime warranty, free shipping and no core charge. The full GMC Terrain module lineup covers other engine configurations as well.

Final Thoughts

The 2014 GMC Terrain 2.4L’s PCM and ECM are critical for engine and transmission control. By following proper replacement and relearn procedures, you can restore power and eliminate check engine lights. Consider a pre‑programmed unit for a hassle‑free repair.
