2011 GMC Terrain PCM and ECM Replacement Guide
In the 2011 GMC Terrain the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery and transmission coordination. Failure of either unit can cause erratic idle, loss of power, or communication loss with diagnostic tools, often triggering internal fault codes.
Quick Summary
- Labor for PCM removal and reinstall typically totals two hours.
- ECM replacement requires an additional hour of work.
- Both modules need a relearn procedure after installation.
- Factory cautions stress proper battery disconnect to avoid electrostatic damage.
When a 2011 GMC Terrain begins to idle roughly or loses smooth acceleration, the underlying cause may be a faulty control module. Understanding what the Powertrain Control Module (PCM) and Engine Control Module (ECM) do, how they are accessed, and what programming steps follow replacement can help you decide between a new OEM unit or a refurbished option. This guide outlines the key facts so you can evaluate the repair path with confidence.
What the PCM Does in a 2011 GMC Terrain
The PCM in a 2011 GMC Terrain oversees transmission shift logic while the ECM controls engine ignition and fuel injection. Together they ensure the powertrain runs within calibrated parameters, which is essential for emissions compliance and drivability. Proper operation of these computers is critical because any deviation can trigger performance loss or error codes. For those seeking a swap, replacement engine modules for Terrain provide a direct fit and retain the vehicle’s original calibration.

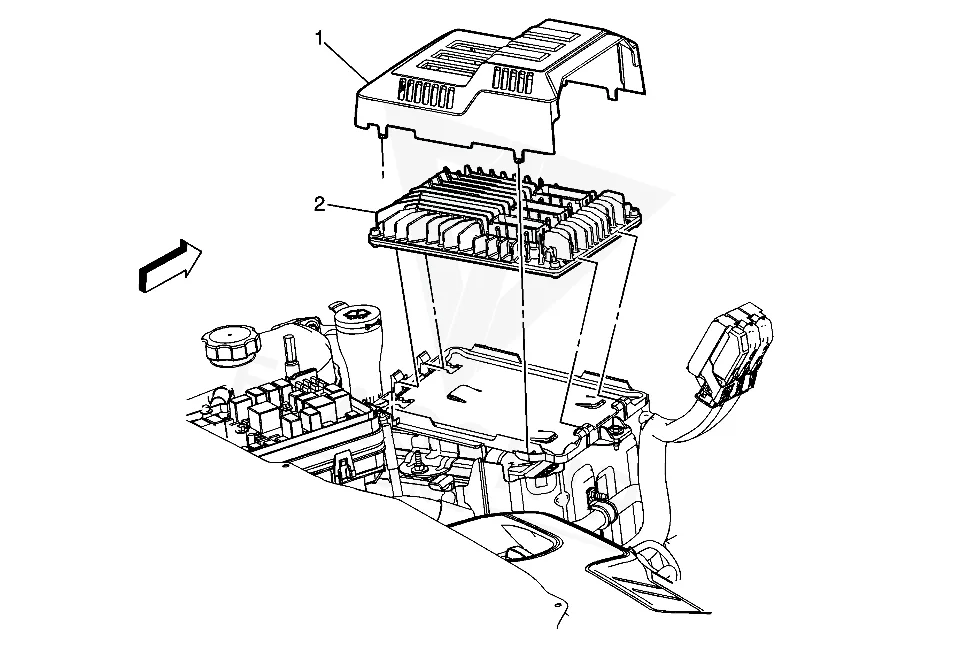

Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM are mounted within the engine compartment, accessible after disconnecting the negative battery cable to satisfy the factory electrostatic caution. Removing the PCM typically requires 1.5 hours of labor, followed by a 0.5‑hour relearn step. The ECM follows the same pattern: 1.5 hours to remove and replace, then an additional half hour for the relearn. No torque specifications are listed, so the focus remains on the documented book times and battery safety steps.
How to Reach the PCM on the 2011 GMC Terrain
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.5 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure calls for a specific reprogramming sequence that includes a PCM relearn and an ECM relearn, each taking about half an hour. Flagship One units arrive VIN‑programmed, so the required reprogramming is already completed when you receive a VIN-programmed replacement unit. This eliminates the need for special equipment or additional calibration time on the shop floor.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2011 GMC Terrain include rough idle, hesitation during acceleration, and intermittent loss of power. You may also see dead scan‑tool communication or unexpected transmission shifts. When the internal processor fault occurs, the system logs processor fault code which often appears alongside other powertrain codes.
Module Trouble Codes on the 2011 GMC Terrain
The following internal fault codes are documented for the 2011 GMC Terrain’s control modules:
Factory Service Bulletins Worth Knowing
Service Bulletin #11195B, dated September 20, 2011, addresses rough idle and poor driveability by recommending an ECM reprogram. This bulletin provides the official factory remedy for related emission concerns.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Product Emission – Rough Idle, Poor Driveability – Reprogram Engine Control Module – (Sep 20, 2 | — |
Protecting the PCM in Your 2011 GMC Terrain
- Maintain a healthy charging system to avoid voltage spikes.
- Ensure all ground connections are clean and secure.
- Use proper battery disconnect procedures before any work.
- Address any stored fault codes promptly.
- Inspect connector seals for wear or damage.
Frequently Asked Questions
What labor time should I expect for PCM replacement on a 2011 GMC Terrain?
The factory book time lists 1.5 hours for removal and reinstall, plus an additional 0.5 hour for the required relearn procedure.
Do I need special equipment to reprogram the ECM after replacement?
Factory guidance requires special programming tools, but a VIN‑programmed replacement from Flagship One eliminates that need.
Can a rough idle be caused by something other than the ECM?
Yes, issues like a weak battery, dirty fuel injectors, or vacuum leaks can also produce similar symptoms, so a full diagnosis is recommended.
When the control modules in your 2011 GMC Terrain need service, you can choose a brand‑new OEM part or a refurbished unit that meets factory specifications. Both options require the same labor and relearn steps, but a refurbished module from Flagship One arrives pre‑programmed to match your vehicle, potentially reducing shop time.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2011 GMC Terrain with a lifetime warranty, free shipping and no core charge. The full GMC Terrain module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in a 2011 GMC Terrain restores proper engine and transmission control, helping you regain smooth performance. Consider a VIN‑programmed replacement to simplify the post‑install process and get back on the road sooner.
