2012 GMC Terrain Powertrain and Engine Control Module Replacement
The powertrain control module (PCM) and engine control module (ECM) in a 2012 GMC Terrain manage engine speed, transmission shifting, and emissions. Failure of either unit can cause loss of power, stalling, or error codes that prevent normal operation.
Quick Summary
- PCM removal and reinstall typically requires 1.5 hours of labor.
- ECM removal and reinstall also usually takes about 1.5 hours.
- Both modules need a relearn step of roughly half an hour after installation.
- Improper handling can lead to electrostatic damage to the ECM.
When a 2012 GMC Terrain experiences powertrain or engine control issues, the PCM and ECM become focal points for diagnosis. Understanding how these modules function, the labor involved in swapping them, and the programming requirements helps you make an informed decision about repair versus replacement. This guide outlines the key steps and considerations so you can keep your vehicle running smoothly.
What the PCM Does in a 2012 GMC Terrain
In the 2012 GMC Terrain, the PCM oversees transmission shifting and fuel delivery while the ECM monitors engine sensors and controls ignition timing. Together they ensure the engine runs efficiently and meets emissions standards. Proper operation is critical because any fault can trigger a range of drivability problems. The vehicle relies on these computers to interpret sensor data and adjust performance in real time, and replacement engine computers for the 2012 GMC Terrain are engineered to match these exact specifications.

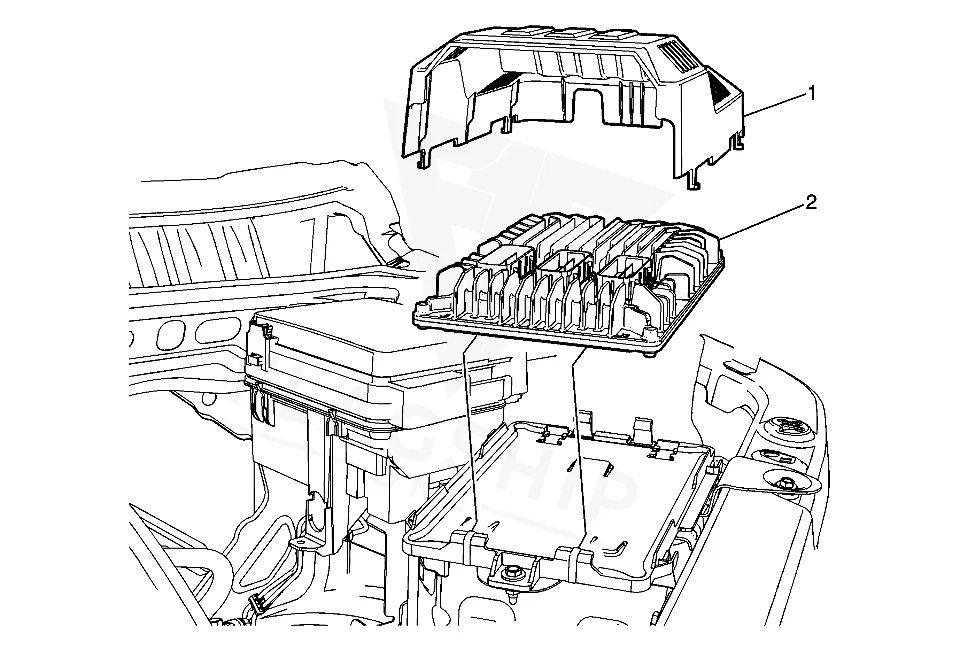

Where the PCM Is Located and What Replacement Involves
The PCM is accessed from the engine compartment and typically requires 1.5 hours of labor to remove and reinstall, followed by a 0.5‑hour relearn procedure. The ECM resides nearby, also needing about 1.5 hours for removal and replacement, with an additional 0.5 hour relearn step. Before any work, disconnect the negative battery cable to protect against electrostatic discharge. No torque specifications are provided, so follow standard fastener practices for secure mounting.
How to Reach the PCM on the 2012 GMC Terrain
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Release the plastic retaining tabs.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.5 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM in a 2012 GMC Terrain, the factory process calls for a specific reprogramming sequence using the correct calibration files and special equipment. The vehicle’s scan tool must capture existing ECM data before removal, and the replacement must be programmed with the appropriate software. Flagship One supplies a VIN-programmed replacement unit that arrives already calibrated, eliminating the need for those on‑site programming steps.
Symptoms of a Failing PCM
Common signs of a failing PCM or ECM in a 2012 GMC Terrain include rough idle, unexpected stalling, transmission shift delays, and the appearance of diagnostic trouble codes such as P0601 powertrain control module fault. You may also notice a loss of communication with scan tools or a complete no‑start condition if the module is not functioning properly.
Module Trouble Codes on the 2012 GMC Terrain
The following diagnostic trouble codes are documented for the 2012 GMC Terrain’s control modules:
Factory Service Bulletins Worth Knowing
Service bulletin PIP4653D, dated June 20 2012, addresses stored codes P0601, P0603, P0604, P062F, and P1621 in the transmission control module for this vehicle.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | DTC’s P0601 P0603 P0604 P062F Or P1621 (Stored in the TCM) – (Jun 20, 2012) | — |
Protecting the PCM in Your 2012 GMC Terrain
- Maintain a healthy charging system to avoid voltage spikes.
- Keep all ground connections and connector pins clean and secure.
- Avoid jump‑starting the vehicle, which can introduce harmful surges.
- Address any stored trouble codes promptly to prevent escalation.
- Ensure connector seals remain intact to protect against moisture.
Frequently Asked Questions
What labor time is typical for replacing the PCM on a 2012 GMC Terrain?
The standard book time for removing and reinstalling the powertrain control module is about 1.5 hours, plus an additional 0.5 hour for the relearn procedure.
Do I need special equipment to reprogram the ECM in my 2012 GMC Terrain?
Factory guidelines require a scan tool and the correct calibration files. A VIN‑programmed replacement from Flagship One arrives pre‑calibrated, so no extra equipment is needed on site.
Can electrostatic discharge damage the ECM during replacement?
Yes, touching the ECM connector pins can cause damage. Disconnect the negative battery cable before handling the module to reduce this risk.
When the PCM or ECM in your 2012 GMC Terrain needs service, you can choose a factory‑spec repair or a refurbished replacement. Both options aim to restore proper engine and transmission control, but a pre‑programmed unit may reduce shop time and eliminate on‑site coding steps.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 GMC Terrain with a lifetime warranty, free shipping and no core charge. The full GMC Terrain module lineup covers other engine configurations as well.
Final Thoughts
For owners of a 2012 GMC Terrain, addressing PCM or ECM issues promptly helps maintain performance and reliability. Consider a VIN‑programmed replacement to simplify the reprogramming process and get back on the road sooner.
