2010 GMC Terrain PCM and ECM Replacement Guide
In the 2010 GMC Terrain, the powertrain control module (PCM) and engine control module (ECM) manage engine timing, fuel delivery, and transmission shifting. Failure of either unit may trigger loss of power, erratic shifting, or communication loss with diagnostic tools, often accompanied by specific fault codes.
Quick Summary
- PCM and ECM share similar labor times of 1.5 hours for removal and replacement.
- Both modules require a 0.5‑hour re‑learn procedure after installation.
- Electrostatic discharge can damage the ECM; disconnect the negative battery first.
- A service bulletin (PIT5065E) addresses a specific SES indicator issue linked to ECM reprogramming.
When a 2010 GMC Terrain experiences no‑start conditions, unexpected stalling, or transmission irregularities, the underlying cause often relates to the powertrain control module or engine control module. Understanding how these computers function, where they sit, and what steps are needed after replacement can help you diagnose and resolve the issue efficiently. This guide outlines the essential information you need to replace and re‑program the PCM or ECM, keeping your vehicle running as intended.
What the PCM Does in a 2010 GMC Terrain
The PCM and ECM in the 2010 GMC Terrain act as the vehicle’s central nervous system, interpreting sensor data to control fuel injection, ignition timing, and transmission shift points. Their operation is critical for smooth power delivery and emissions compliance. replacement engine computers for the 2010 GMC Terrain ensures that the vehicle maintains optimal performance and diagnostic communication after a failure.

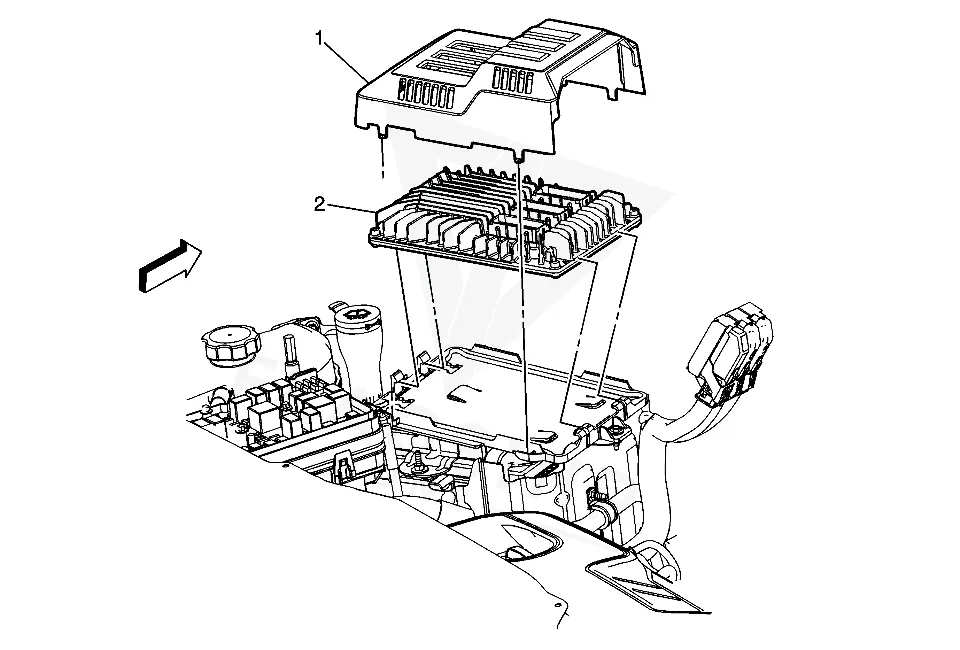

Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM are mounted within the engine compartment, typically secured to the firewall or near the intake manifold. Removal involves disconnecting the 12 V battery negative cable to prevent electrostatic damage, then unplugging the connector harnesses. The factory book time lists 1.5 hours for each module’s removal and replacement, reflecting the need to access wiring and fasteners. After installation, a 0.5‑hour re‑learn procedure is required for each unit to calibrate the vehicle’s control strategies.
How to Reach the PCM on the 2010 GMC Terrain
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.5 hr |
Programming Requirements After Replacement
If you replace the ECM, the factory procedure calls for reprogramming the unit using specialized equipment and the correct calibration file. Flagship One supplies a VIN‑specific replacement that arrives already programmed, so the re‑program step is effectively completed. a VIN-programmed replacement unit eliminates the need for additional on‑site programming while still meeting the required re‑learn steps.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2010 GMC Terrain include a no‑start condition, intermittent stalling, rough idle, or transmission shifting issues. Diagnostic scans may reveal communication loss or specific fault codes such as processor communication error which points to a processor internal fault. Addressing these symptoms promptly can prevent further drivability problems.
Module Trouble Codes on the 2010 GMC Terrain
The following internal fault codes have been documented for the 2010 GMC Terrain and may appear when the PCM or ECM experiences issues:
Factory Service Bulletins Worth Knowing
Service bulletin PIT5065E, dated January 10, 2013, advises reprogramming the ECM to resolve a SES indicator problem associated with DTC P0690. This bulletin outlines the required reprogramming steps and calibration updates.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | SES Indicator Due To DTC P0690 – Reprogram ECM – (Jan 10, 2013) | — |
Protecting the PCM in Your 2010 GMC Terrain
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean ground straps and connector pins regularly.
- Avoid jump‑starting or high‑current spikes that can stress electronic modules.
- Clear fault codes promptly to prevent prolonged abnormal operation.
- Ensure connector seals remain intact to protect against moisture.
Frequently Asked Questions
What causes a no‑start condition in a 2010 GMC Terrain after PCM replacement?
A no‑start can result from incomplete re‑learn procedures, a loose connector, or residual fault codes that prevent the PCM from establishing proper engine control.
Do I need special tools to reprogram the ECM in a 2010 GMC Terrain?
Factory reprogramming requires dedicated diagnostic equipment and the correct calibration file, which Flagship One units already include.
How long does it typically take to replace the ECM in a 2010 GMC Terrain?
The labor guide indicates about 1.5 hours for removal and installation, plus an additional 0.5 hours for the required re‑learn process.
When your 2010 GMC Terrain requires PCM or ECM service, you can choose between a factory‑repaired unit or a refurbished replacement that matches the original specifications. Both options involve the same removal, installation, and re‑learn steps, allowing you to restore vehicle performance with confidence.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 GMC Terrain with a lifetime warranty, free shipping and no core charge. The full GMC Terrain module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in a 2010 GMC Terrain can resolve many drivability issues. Follow the outlined steps and consider a VIN‑programmed replacement to simplify the process and keep your vehicle reliable.
