2010 Chevrolet Silverado PCM and ECM Replacement Guide
In the 2010 Chevrolet Silverado, the powertrain control module (PCM) and engine control module (ECM) manage engine timing, fuel delivery, and transmission shifting. Failure of either unit can trigger loss of power, engine stalls, or loss of communication with diagnostic tools.
Quick Summary
- PCM removal typically requires 1.4 hours of labor.
- ECM replacement also takes about 1.4 hours according to the shop guide.
- A 0.5‑hour relearn procedure follows PCM swaps.
- Capture ECM data with a scan tool before removal.
When a 2010 Chevrolet Silverado begins to exhibit intermittent power loss, rough idle, or an inability to start, the engine and power‑train computers are often the first suspects. This guide defines the PCM and ECM functions for your truck, outlines the steps needed for a proper swap, and explains what you can expect after the repair. By following the outlined process, you can reduce diagnostic time and ensure the new unit operates correctly.
What the PCM Does in a 2010 Chevrolet Silverado
The PCM in a 2010 Chevrolet Silverado controls both engine and transmission functions, interpreting sensor data to adjust fuel, spark, and gear shifts. The ECM focuses on engine‑specific tasks such as ignition timing and emissions control. Together they keep the power‑train running smoothly, and any malfunction can lead to drivability issues. Understanding these roles helps you see why a proper replacement is critical, especially when dealing with replacement engine computers for the Silverado during service.

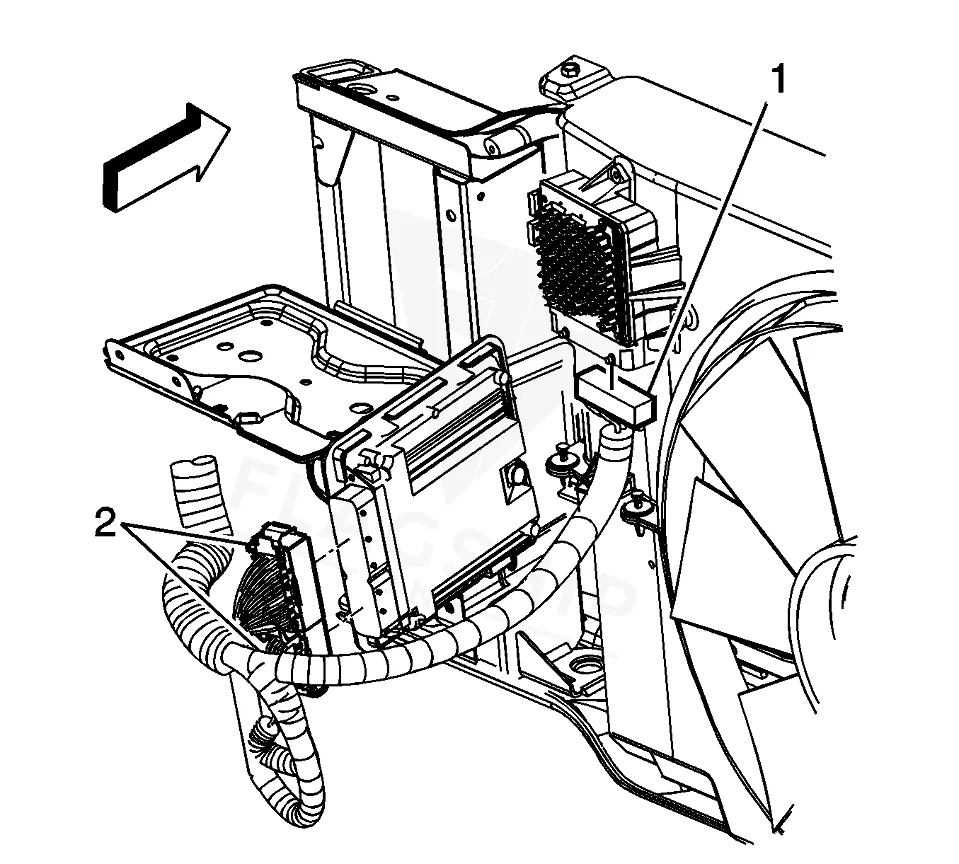

Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM are mounted within the engine compartment, accessible after removing the upper intake cover. The shop manual lists a labor time of 1.4 hours for removing and installing each module. After the unit is secured, a 0.5‑hour relearn step is required for the PCM to synchronize with the vehicle’s control networks. No additional torque specifications are provided in the source data.
How to Reach the PCM on the 2010 Chevrolet Silverado
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the ECM electrical.
- Release the ECM upper retaining tabs.
- Remove the ECM from the bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Silverado 1500 | 1.4 hr |
| Powertrain Control Module R&R | Silverado 2500 HD | 1.4 hr |
| Powertrain Control Module R&R | Silverado 3500 HD | 1.4 hr |
| Powertrain Control Module Relearn | Silverado 1500 | 0.5 hr |
| Powertrain Control Module Relearn | Silverado 2500 HD | 0.5 hr |
| Powertrain Control Module Relearn | Silverado 3500 HD | 0.5 hr |
| Engine Control Module R&R | Silverado 1500 | 1.4 hr |
| Engine Control Module R&R | Silverado 2500 HD | 1.4 hr |
Programming Requirements After Replacement
Factory service procedures call for capturing all ECM data with a scan tool before the module is removed, then performing a relearn after installation. Flagship One supplies a VIN‑programmed replacement unit, so those capture and relearn steps are already completed when the part arrives, simplifying the post‑install process. a VIN‑programmed replacement unit eliminates the need for on‑site data capture.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2010 Silverado include engine no‑start, sudden stalling, rough idle, and loss of transmission shifting. Diagnostic trouble codes such as Powertrain Control Module internal failure often appear, and you may notice the scan tool cannot communicate with the vehicle’s computer network. These symptoms usually indicate the control module needs attention.
Module Trouble Codes on the 2010 Chevrolet Silverado
The following internal trouble codes are documented for the 2010 Chevrolet Silverado and relate directly to PCM and ECM performance:
Factory Service Bulletins Worth Knowing
Service bulletin #08-06-04-006 (and its L variant) provides guidance on identifying non‑GM ECM calibrations and power‑up hardware detection for Duramax diesel engines, including steps to photograph Tech 2 calibration IDs and verify CVNs.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-06-04-006 | Information for Identifying Non-GM ECM Calibration Use and Power-up Hardware Detection in Duram | — |
Protecting the PCM in Your 2010 Chevrolet Silverado
- Maintain a healthy charging system to avoid voltage drops.
- Inspect and clean all ground straps and connector pins regularly.
- Avoid jump‑starting the vehicle, which can introduce voltage spikes.
- Address any diagnostic codes promptly before they worsen.
- Ensure connector seals remain intact to protect against moisture.
Frequently Asked Questions
What are the common causes of PCM failure in a 2010 Chevrolet Silverado?
PCM failures often stem from water intrusion, voltage spikes, or internal component wear. Regular electrical system checks can help identify early signs.
Do I need special tools to replace the ECM on my 2010 Silverado?
The replacement uses standard hand tools, but a scan tool is required to capture ECM data before removal, as noted in the factory procedure.
How long will my Silverado be without power‑train control after a PCM swap?
The shop manual estimates 1.4 hours for removal and installation, plus a 0.5‑hour relearn, during which the vehicle will be inoperative.
When a PCM or ECM needs attention on a 2010 Chevrolet Silverado, you can choose a professional repair or opt for a refurbished replacement that meets factory specifications. Both paths require the same labor time, but a refurbished unit from Flagship One arrives pre‑programmed, reducing on‑site steps and helping you return the truck to service faster.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Chevrolet Silverado with a lifetime warranty, free shipping and no core charge. The full Chevrolet Silverado module lineup covers other engine configurations as well.
Final Thoughts
If your 2010 Chevrolet Silverado is showing control‑module symptoms, a timely PCM or ECM replacement can restore reliable performance. Consider a VIN‑programmed refurbished unit to simplify the process and keep your truck on the road.
