2011 Chevrolet Silverado Powertrain Control Module Replacement Guide
In the 2011 Chevrolet Silverado the Powertrain Control Module (PCM) manages engine and transmission commands. Failure can cause loss of power, MIL illumination, and multiple diagnostic codes, disrupting performance and drivability.
Quick Summary
- PCM removal typically requires 1.4 hours of labor.
- Relearn procedures for the PCM take about 0.5 hours.
- Factory service bulletins list specific codes that trigger reprogramming.
- Flagship One units arrive VIN‑programmed, eliminating post‑install steps.
When a 2011 Chevrolet Silverado exhibits a lit malfunction indicator lamp and reduced engine power, the powertrain control module often becomes the focus of diagnosis. This guide explains what the PCM does, how it is accessed, the programming steps required after replacement, and what you can expect from a refurbished unit. By the end, you will know the labor effort, the necessary relearn actions, and how to avoid common pitfalls.
What the PCM Does in a 2011 Chevrolet Silverado
The Powertrain Control Module in a 2011 Chevrolet Silverado acts as the central computer that interprets sensor data and controls fuel delivery, ignition timing, and transmission shifting. Its role is critical because any miscommunication can degrade performance and trigger warning lights. Proper operation ensures smooth power delivery and compliance with emissions standards. Understanding the module helps you evaluate repair options, and it also clarifies why replacement engine computers for the Silverado are essential when the original fails.
Where the PCM Is Located and What Replacement Involves
The PCM resides within the engine compartment and is secured with bolts that typically require 1.4 hours to remove and replace, according to the labor guide. Access involves disconnecting the battery, removing the cover, and unfastening the mounting hardware. After the unit is swapped, a relearn process of about 0.5 hours is needed to synchronize the module with the vehicle’s systems. No additional torque specifications are listed, so standard factory procedures apply.

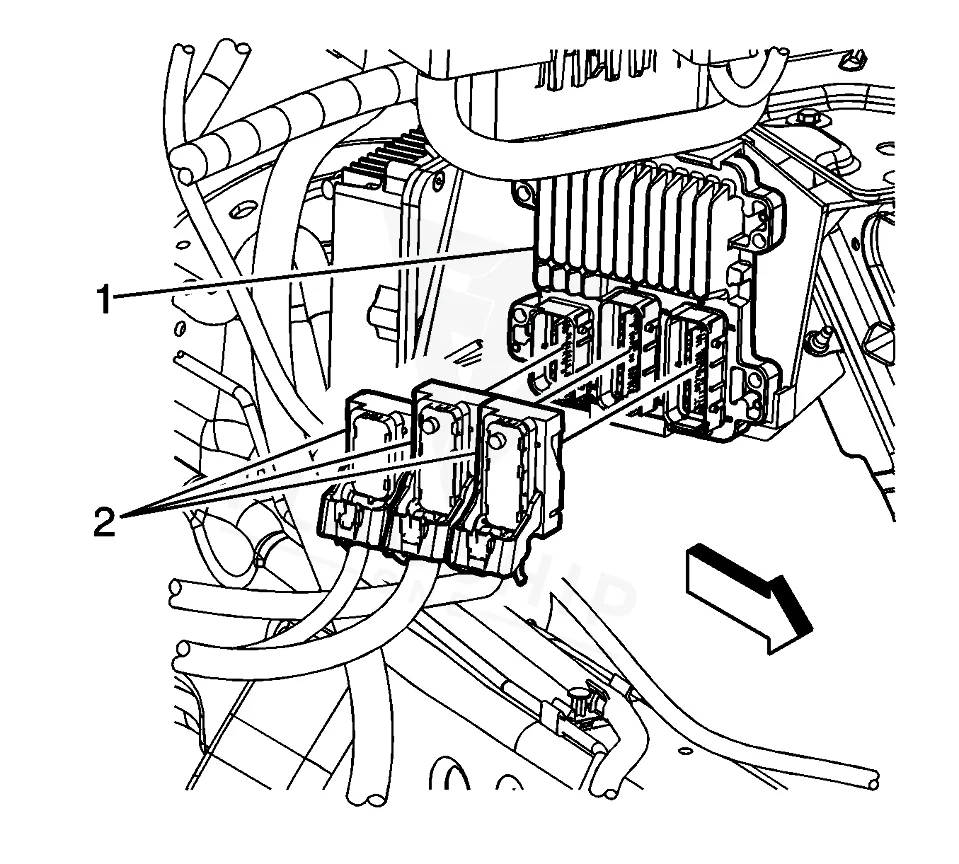

How to Reach the PCM on the 2011 Chevrolet Silverado
- Release the tab on the rear of the cover while rotating the cover upward.
- Remove any debris from around the control module connector.
- Disconnect the engine control module harness connectors.
- Release the three tabs retaining the engine control module to the module bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Silverado 2500 HD | 1.4 hr |
| Powertrain Control Module R&R | Silverado 3500 HD | 1.4 hr |
| Powertrain Control Module R&R | Silverado 1500 | 1.4 hr |
| Powertrain Control Module Relearn | Silverado 2500 HD | 0.5 hr |
| Powertrain Control Module Relearn | Silverado 3500 HD | 0.5 hr |
| Powertrain Control Module Relearn | Silverado 1500 | 0.5 hr |
| Engine Control Module R&R | Silverado 2500 HD | 1.4 hr |
| Engine Control Module R&R | Silverado 3500 HD | 1.4 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure calls for a module relearn and several calibration steps, including reprogramming the engine control module, turbocharger, and glow plug control module. Flagship One supplies a a VIN‑programmed replacement unit that arrives already matched to your vehicle, so those programming actions are completed before the unit reaches you.
Symptoms of a Failing PCM
Typical signs of a failing PCM in a 2011 Chevrolet Silverado include a steady MIL, reduced engine power, and intermittent stalling. Diagnostic scans often reveal codes such as PCM internal communication failure among others, indicating internal module issues. These symptoms can also appear as rough idle, hesitation during acceleration, or transmission shift irregularities.
Module Trouble Codes on the 2011 Chevrolet Silverado
The following internal trouble codes have been documented for the 2011 Chevrolet Silverado and may appear when the PCM is compromised:
Factory Service Bulletins Worth Knowing
Service bulletin #11-06-04-001 and its revision #11-06-04-001A note MIL illumination and low power with codes P0299, P0513, P0606, P0622, P207F, P20EE, P2202, or P22A0, recommending ECM reprogramming. Bulletin #PI0597 addresses DTC P2610 related to the ignition off timer, and #PIT5134C covers intermittent compass inaccuracies tied to ECM reprogramming.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 11-06-04-001 | Malfunction Indicator Lamp (MIL) Illuminated, Poor Engine Performance with Low Power, DTC P0299 | Some customers may comment that the malfunction indicator lamp (MIL) is illuminated and the engine performance is poor with low power. The technician may… |
| — | Engine Control Module DTC P2610 (Control Module Ignition Off Timer Performance) Setting Malfunc | — |
| — | Intermittently Compass Inaccurate (Exhaust DPF Regeneration-Reprogram ECM) – (Aug 8, 2012) | — |
Protecting the PCM in Your 2011 Chevrolet Silverado
- Maintain a healthy charging system to avoid voltage fluctuations.
- Ensure all ground straps and connector pins are clean and secure.
- Avoid jump‑starting the vehicle, which can introduce voltage spikes.
- Promptly address any diagnostic codes before they recur.
- Inspect connector seals regularly to keep moisture out.
Frequently Asked Questions
What labor time is required to replace the PCM in a 2011 Chevrolet Silverado?
The standard labor estimate for removing and installing the PCM on this model is about 1.4 hours.
Do I need to perform a relearn after installing a new PCM in my Silverado?
Yes, a relearn procedure of roughly 0.5 hours is typically required to sync the new module with the vehicle’s systems.
Can a VIN‑programmed replacement eliminate the need for post‑install coding?
A VIN‑programmed unit from Flagship One arrives pre‑matched, so the factory programming steps are already completed.
When the PCM in your 2011 Chevrolet Silverado needs attention, you can choose a repair that follows the factory steps or opt for a refurbished unit that arrives pre‑programmed. Both paths aim to restore performance, but a pre‑programmed replacement may reduce shop time and simplify the process.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2011 Chevrolet Silverado with a lifetime warranty, free shipping and no core charge. The full Chevrolet Silverado module lineup covers other engine configurations as well.
Final Thoughts
If your 2011 Chevrolet Silverado shows PCM‑related symptoms, consider a VIN‑programmed replacement to streamline the fix. Contact Flagship One for more details on how to protect your vehicle’s powertrain control system.
