2009 Chevrolet Silverado PCM and ECM Replacement Guide
In the 2009 Chevrolet Silverado the powertrain control module (PCM) and engine control module (ECM) manage engine timing, fuel delivery, and transmission coordination. Failure typically results in loss of powertrain function, erratic idle, or inability to start, and may trigger internal fault codes.
Quick Summary
- PCM and ECM removal each require about 1.4 hours of labor.
- Relearn procedures for each module add roughly 0.5 hours.
- A service bulletin (09-08-68-001) links cruise‑control shutoff to low battery charge.
- Capture ECM data with a scan tool before removal.
When a 2009 Chevrolet Silverado shows irregular cruise‑control behavior or engine‑control fault codes, the powertrain control module (PCM) or engine control module (ECM) may be at fault. This guide explains what these modules do, how they are accessed, the labor involved, and the programming steps required after replacement. By the end you will understand the typical repair process, the time you might expect in the shop, and how Flagship One’s VIN‑programmed units simplify the procedure.
What the PCM Does in a 2009 Chevrolet Silverado
The PCM in a 2009 Silverado integrates engine and transmission control, while the ECM focuses on engine management alone. Both modules interpret sensor data to adjust fuel injection, ignition timing, and shift timing, ensuring smooth performance and emissions compliance. replacement engine computers for the Silverado are critical because any miscommunication can lead to drivability issues, and the vehicle relies on them for diagnostic reporting.

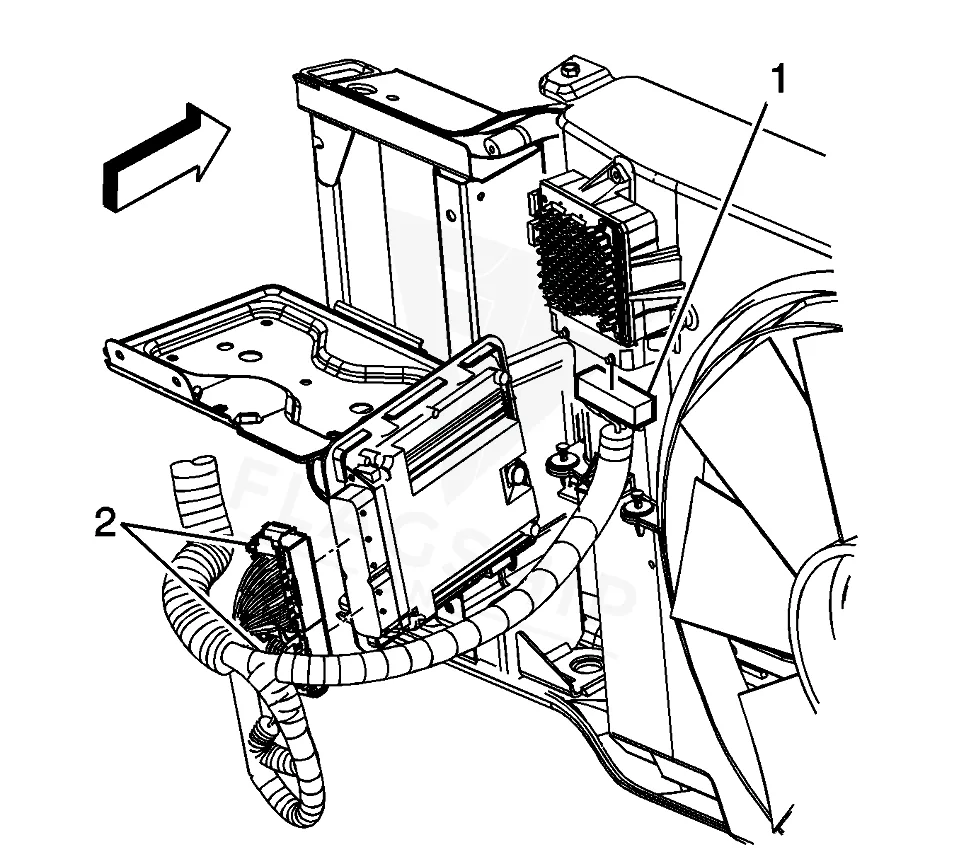

Where the PCM Is Located and What Replacement Involves
The PCM and ECM are mounted within the engine compartment, typically secured with bolts that require standard torque specifications. Removing either unit follows the same book time of 1.4 hours, reflecting the steps to disconnect wiring harnesses, unbolt the module, and gain access to the mounting location. After installation, a relearn procedure of 0.5 hours is needed to sync the new unit with the vehicle’s systems. No additional torque values are provided in the source data.
How to Reach the PCM on the 2009 Chevrolet Silverado
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the ECM electrical.
- Release the ECM upper retaining tabs.
- Remove the ECM from the bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Silverado 3500 HD | 1.4 hr |
| Powertrain Control Module R&R | Silverado 2500 HD | 1.4 hr |
| Powertrain Control Module R&R | Silverado 1500 | 1.4 hr |
| Powertrain Control Module Relearn | Silverado 3500 HD | 0.5 hr |
| Powertrain Control Module Relearn | Silverado 2500 HD | 0.5 hr |
| Powertrain Control Module Relearn | Silverado 1500 | 0.5 hr |
| Engine Control Module R&R | Silverado 3500 HD | 1.4 hr |
| Engine Control Module R&R | Silverado 2500 HD | 1.4 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM, the factory process calls for a post‑install relearn using a scan tool, and the ECM data must be captured before removal. Flagship One supplies a VIN‑programmed replacement unit, a VIN-programmed replacement unit that arrives already calibrated, eliminating the need for manual data entry and reducing the chance of programming errors.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2009 Silverado include engine cranking without start, intermittent stalling, erratic idle, and loss of cruise‑control function. Scan‑tool communication may be absent, and you might see transmission shift irregularities. One documented fault is Processor Performance Monitor (PCM) failure, which can appear alongside other internal codes such as P0602 or P0603.
Module Trouble Codes on the 2009 Chevrolet Silverado
The following internal trouble codes have been recorded for the 2009 Silverado’s PCM and ECM:
Factory Service Bulletins Worth Knowing
Service bulletin #09-08-68-001 notes that cruise control may turn off during operation, especially when both driver‑door window switches are used or the heated washer fluid is activated in cold weather with a battery charge below 80%. The bulletin recommends reprogramming the ECM to address the issue.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-08-68-001 | Cruise Control Turns Off During Operation (Reprogram ECM) – (Nov 13, 2009) | On rare occasions, some customers may comment that the cruise control turned off. This typically occurs during operation and while pulling up and releasing… |
Protecting the PCM in Your 2009 Chevrolet Silverado
- Maintain a healthy charging system to keep battery voltage above 80%.
- Inspect and clean ground straps and connector pins regularly.
- Avoid voltage spikes from jump‑starts or improper accessory use.
- Address any stored fault codes promptly to prevent module stress.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What are the labor hours for replacing the PCM in a 2009 Chevrolet Silverado?
The book time for removing and installing the PCM on a 2009 Silverado is listed as 1.4 hours, plus an additional 0.5 hours for the relearn procedure.
Do I need to capture data before removing the ECM on my 2009 Silverado?
Yes, the factory procedure advises using a scan tool to capture ECM data before the module is removed.
Can a low battery cause cruise‑control issues in my 2009 Silverado?
According to service bulletin 09-08-68-001, a battery charge below 80% can contribute to cruise‑control shutdown during certain operations.
When your 2009 Chevrolet Silverado requires PCM or ECM service, you can choose a new factory‑spec unit or a refurbished replacement. Both options involve the same labor times and post‑install steps, but a VIN‑programmed unit from Flagship One may reduce shop time. Consider your vehicle’s mileage and budget to decide which path best fits your repair plan.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Chevrolet Silverado with a lifetime warranty, free shipping and no core charge. The full Chevrolet Silverado module lineup covers other engine configurations as well.
Final Thoughts
If the PCM or ECM in your 2009 Chevrolet Silverado is showing fault codes or drivability problems, a timely replacement can restore normal operation. Flagship One’s calibrated units simplify the process, helping you get back on the road with confidence.
