2005 Saturn L-Series PCM and ECM Replacement Guide
In the 2005 Saturn L-Series the Powertrain Control Module and Engine Control Module manage fuel delivery, ignition timing, and emissions. Failure typically results from internal software corruption or component wear, leading to loss of engine control, diagnostic trouble codes, and reduced drivability.
Quick Summary
- PCM and ECM removal each require about three‑tenths of an hour of labor.
- Relearn procedures add roughly half an hour after each module swap.
- Incorrect oil‑life data will default to 100 % if not transferred.
- Passlock security must be relearned with the SSS after replacement.
When a 2005 Saturn L-Series experiences engine‑control issues, the Powertrain Control Module or Engine Control Module may need to be replaced. This guide explains what the modules do, how to access them, and what programming steps are required after a swap. By following these points you can understand the work involved and ensure the vehicle returns to normal operation.
What the PCM Does in a 2005 Saturn L-Series
The PCM in a 2005 Saturn L-Series coordinates fuel injection, ignition timing, and emissions controls while the ECM focuses on engine speed and sensor feedback. Both modules communicate with the transmission and security system to keep the powertrain running smoothly. Proper operation is essential for fuel efficiency and emissions compliance. The vehicle relies on accurate data from these computers, which is why replacement engine computers for the 2005 Saturn L-Series must be matched to the original specifications.

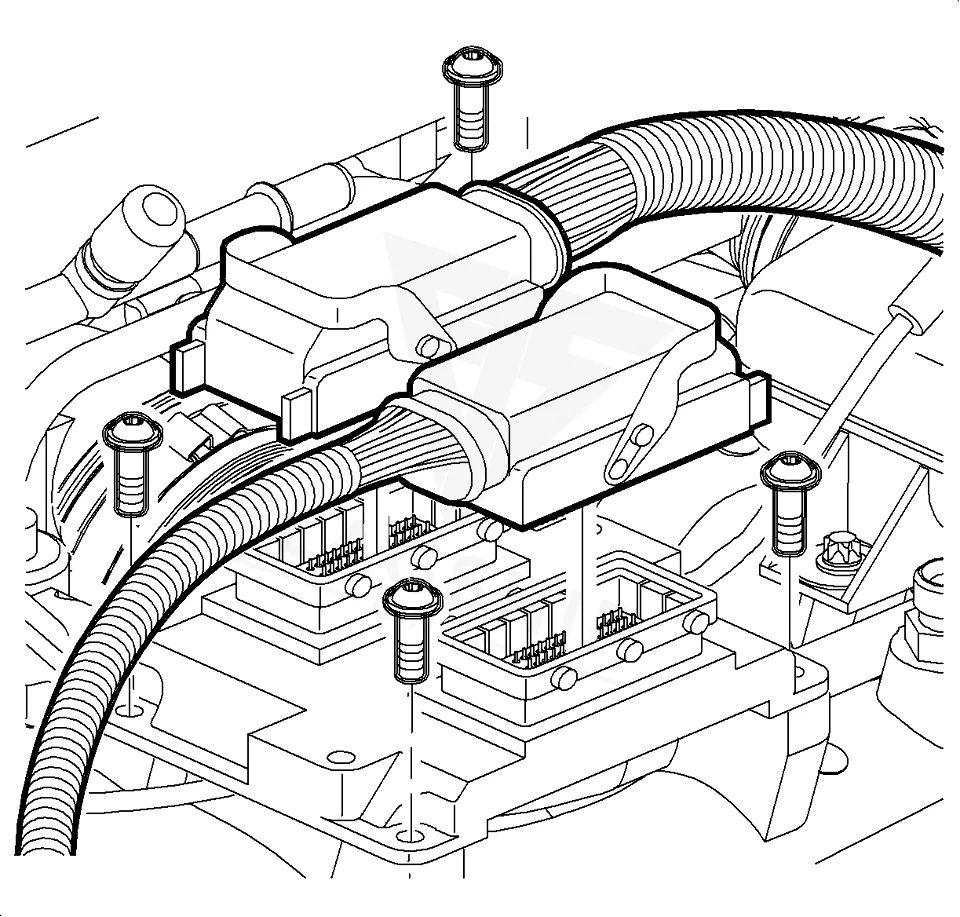

Where the PCM Is Located and What Replacement Involves
The PCM and ECM are mounted within the engine compartment, typically secured to the firewall or near the intake manifold. Removing either unit involves disconnecting electrical connectors and unbolting the housing, a task estimated at 0.3 hours in the factory labor guide. After the module is taken out, a relearn step of 0.5 hours is required to sync the new unit with the vehicle’s systems. No torque specifications were provided, so standard connector handling applies.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.3 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure calls for recording the remaining oil life and performing the Passlock relearn using the SSS. The replacement must also be loaded with the correct software and calibrations. Flagship One supplies a VIN-programmed replacement unit that already includes the required software, eliminating the need for additional programming steps.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2005 Saturn L-Series include a no‑start condition, rough idle, intermittent stalling, and loss of transmission shift quality. Diagnostic scans often reveal codes such as internal control module memory error or related communication faults. You may also notice dead scan‑tool connections or unexpected engine‑oil‑life resets.
Module Trouble Codes on the 2005 Saturn L-Series
The following internal trouble codes are documented for the 2005 Saturn L-Series powertrain and engine modules:
Factory Service Bulletins Worth Knowing
Service bulletin #05-06-04-060, dated September 23, 2005, addresses shared DTCs P0601 through P0604 and P1621 across the PCM, ECM, and transmission controllers. The bulletin outlines diagnostic steps and recommended software updates for these modules.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
Protecting the PCM in Your 2005 Saturn L-Series
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and clean all ground connections and connector pins regularly.
- Use proper jump‑start techniques to prevent voltage spikes.
- Address any diagnostic trouble codes promptly before they worsen.
- Verify that connector seals remain intact to keep moisture out.
Frequently Asked Questions
What causes the PCM to lose its calibration in a 2005 Saturn L-Series?
Loss of calibration can result from power interruptions, software corruption, or exposure to extreme temperatures, which may trigger internal memory errors.
Do I need a special tool to relearn the Passlock system on this vehicle?
Yes, the factory procedure requires the SSS (Saturn Service Scanner) to complete the Passlock relearn after a module replacement.
Can a faulty ECM affect transmission shifting in the 2005 Saturn L-Series?
Because the ECM shares data with the transmission controller, a malfunctioning ECM can cause delayed or harsh shifts, especially if related DTCs appear.
When the PCM or ECM needs attention on a 2005 Saturn L-Series, you can choose a new factory‑spec unit or a refurbished replacement that meets the same standards. Both options require the same removal and relearn steps, but a refurbished part from Flagship One arrives VIN‑programmed, reducing post‑install work.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Saturn L-Series with a lifetime warranty, free shipping and no core charge. The full Saturn L-Series module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in a 2005 Saturn L-Series restores engine control and security functions. Follow the documented labor times and programming cautions to ensure reliable operation, and consider a VIN‑programmed replacement for a streamlined repair.
