2001 Saturn L-Series PCM Replacement Guide
The Powertrain Control Module in a 2001 Saturn L-Series manages engine and transmission functions, translating sensor data into fuel, spark, and shift commands. When the PCM fails, the vehicle may lose power, exhibit rough shifting, or trigger multiple diagnostic codes, often requiring removal and replacement of the unit.
Quick Summary
- PCM removal typically takes 0.7 hours per labor guide.
- Relearn procedures are required after any new PCM is installed.
- Failure to record remaining oil life may reset the oil‑life monitor to 100 %.
- Passlock password must be learned from the BCM after reprogramming.
When the Service Engine Soon lamp or harsh shifting appears on your 2001 Saturn L-Series, the Powertrain Control Module is a common culprit. Understanding what the PCM does, how it is accessed, and the post‑install programming steps can help you decide whether to repair the original unit or install a refurbished replacement. This guide outlines the key facts you need to evaluate the repair and keep your vehicle running reliably.
What the PCM Does in a 2001 Saturn L-Series
In the 2001 Saturn L-Series, the Powertrain Control Module serves as the central computer that monitors engine speed, throttle position, transmission inputs and emission sensors, then commands fuel injection, ignition timing and shift strategy. It also stores calibration data for the Passlock anti‑theft system and the engine oil‑life monitor. Proper operation is essential for smooth acceleration, fuel efficiency and emissions compliance. 2001 Saturn L-Series replacement modules ensure the vehicle maintains its designed performance standards.
Where the PCM Is Located and What Replacement Involves
The PCM is mounted within the engine compartment, typically attached to the firewall near the intake manifold. Labor guides list a removal and reinstall time of 0.7 hours for each replacement. Access may require disconnecting battery cables and removing a few fasteners, but no torque specifications are provided in the source data. Once the old unit is withdrawn, the new module is positioned in the same bracket and secured with the original hardware.
How to Reach the PCM on the 2001 Saturn L-Series
- Disconnect the negative battery cable.

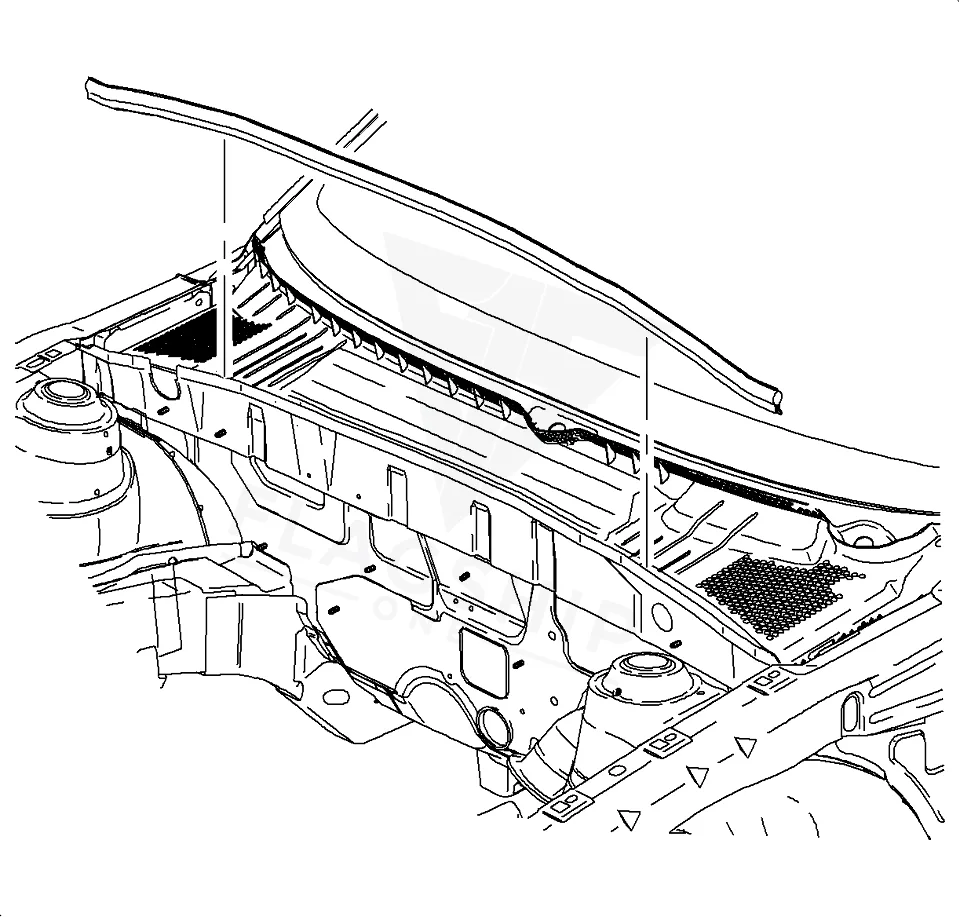

- Remove the rear hood seal.
- Raise the right side front corner of the air inlet grill in.
- Remove the PCM J1 and J2 harness connector boot.
- Disconnect the PCM J1 and J2 harness connectors by.
- Open the glove compartment door and remove the glove.
- Disconnect the glove compartment lamp harness connector and.
- Remove the glove compartment lamp.
- Remove the glove compartment door attachment screws and glove.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | LW200 | 0.7 hr |
| Powertrain Control Module R&R | L100 | 0.7 hr |
| Powertrain Control Module R&R | L200 | 0.7 hr |
| Powertrain Control Module Relearn | LW200 | 0.5 hr |
| Powertrain Control Module Relearn | L100 | 0.5 hr |
| Powertrain Control Module Relearn | L200 | 0.5 hr |
| Engine Control Module R&R | LW200 | 0.7 hr |
| Engine Control Module R&R | L100 | 0.7 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure calls for reprogramming the module with the latest software and calibrations, then performing a Passlock relearn using the Service Stall System. Flagship One supplies a VIN-programmed replacement unit that already includes the correct software, oil‑life data and Passlock credentials, so those steps are completed before the unit arrives at your shop.
Symptoms of a Failing PCM
A failing PCM in a 2001 Saturn L-Series may cause a no‑start condition, intermittent stalling, rough idle, or erratic transmission shifts. You might also see the Service Engine Soon lamp illuminated along with diagnostic trouble codes such as code P0601 indicating internal PCM communication faults. Communication loss with the scan tool and unusual throttle response are additional clues that the module may need attention.
Module Trouble Codes on the 2001 Saturn L-Series
The following internal diagnostic codes are documented for the 2001 Saturn L-Series PCM:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P1621 | Control module long-term memory performance | Full P1621 guide → |
| P1640 | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
Service Bulletin #02‑T‑17 (30 Apr 2003) notes SES lamp illumination with P0130 or P0150. Bulletin #00‑T‑70 (7 Jan 2003) addresses harsh or erratic transaxle shifting and SES lamp activation. Bulletin #04‑06‑04‑085 (22 Nov 2004) describes SES or Reduced Power lamp illumination after cold starts in sub‑freezing temperatures with codes P0638, P1510 or P1516.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | SES Lamp Illuminated with P0130 and/or P0150 Set in ECM Memory – (Apr 30, 2003) | Some customers may comment the service engine soon (SES) lamp is |
| — | Harsh or Erratic Transaxle Shifting and/or Service Engine Soon Lamp Illuminated with One or Mor | Customers may comment the Service Engine Soon Lamp is illuminated and/or the transaxle shifts are harsh or |
| 04-06-04-085 | Service Engine Soon (SES) and/or Reduced Power Lamp Illuminating Following Cold Engine Start Up | Some customers may comment on the Service Engine Soon (SES) and/or Reduced Power lamp illuminating and limited throttle response immediately following cold… |
Protecting the PCM in Your 2001 Saturn L-Series
- Maintain a healthy charging system to avoid voltage spikes.
- Inspect and clean all PCM grounds and connector pins regularly.
- Use proper jump‑start techniques to protect electronic modules.
- Address any diagnostic codes promptly before they recur.
- Ensure connector seals remain intact to prevent moisture ingress.
Frequently Asked Questions
What are the typical labor times for replacing the PCM on a 2001 Saturn L-Series?
The labor guide lists 0.7 hours for removal and reinstall of the Powertrain Control Module on this model.
Do I need to perform a Passlock relearn after installing a new PCM in my 2001 Saturn L-Series?
Yes, the factory procedure requires a Passlock relearn using the Service Stall System after the PCM is reprogrammed.
Will a VIN‑programmed replacement PCM from Flagship One require any additional programming steps?
No, Flagship One units arrive pre‑loaded with the correct software, calibrations and Passlock data, eliminating the need for further programming.
When the PCM in your 2001 Saturn L-Series needs attention, you can either repair the original unit or install a refurbished replacement. Both options restore the vehicle’s control functions, but a pre‑programmed replacement can reduce shop time and ensure the oil‑life and Passlock data are correctly set.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 Saturn L-Series with a lifetime warranty, free shipping and no core charge. The full Saturn L-Series module lineup covers other engine configurations as well.
Final Thoughts
For owners of a 2001 Saturn L-Series, addressing PCM issues promptly helps maintain performance and emissions compliance. Consider a VIN‑programmed replacement to simplify the reprogramming steps and get back on the road sooner.
