2002 Saturn L‑Series PCM Replacement Overview
In the 2002 Saturn L‑Series, the Powertrain Control Module (PCM) manages engine timing, fuel delivery, and communication between systems. Failure can trigger engine misfires, loss of power, or warning lights such as the Service Engine Soon indicator.
Quick Summary
- PCM replacement typically takes 0.7 hours per unit.
- Relearning is required for each module variant.
- The ECM automatically learns crankshaft variation, no manual procedure needed.
- Security System Passlock relearn must be performed.
- Programming must match the correct software and calibrations.
If your 2002 Saturn L‑Series has been showing warning lights or diagnostic trouble codes, you may need to replace the Powertrain Control Module. This guide explains what the PCM does, why it is critical to your vehicle’s operation, and what steps are involved in a proper replacement. By understanding the process, you can ensure your vehicle remains reliable and safe.
What the PCM Does in a 2002 Saturn L-Series
The Powertrain Control Module controls engine functions like fuel injection and ignition timing, and it communicates with the Engine Control Module. replacement powertrain computers for the 2002 Saturn L‑Series ensures that the vehicle’s performance and emissions stay within specifications. A malfunctioning PCM can lead to engine misfires, reduced power, or the appearance of service engine warnings.
Where the PCM Is Located and What Replacement Involves

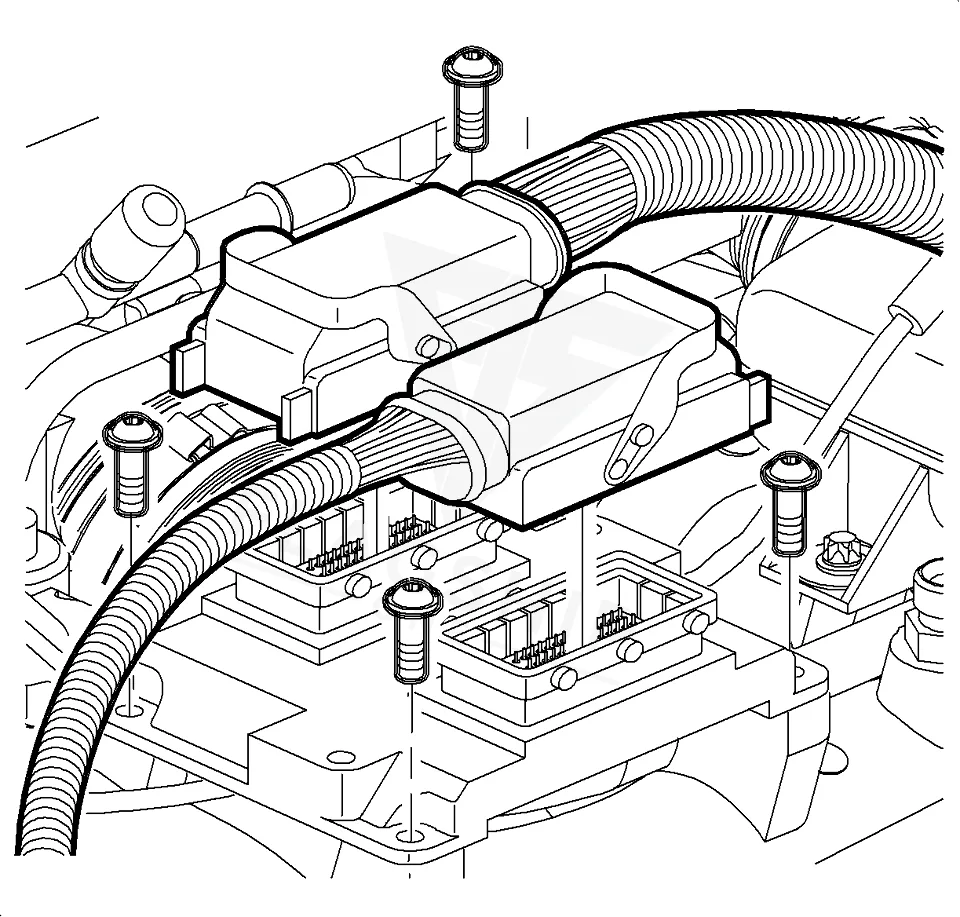

The PCM is located behind the driver’s side dash panel, near the steering column. Replacing it involves removing the dash trim, disconnecting the connector, and installing the new unit. The book time for a PCM replacement is 0.7 hours. After installation, the unit must be reprogrammed to reflect the vehicle’s specific settings.
How to Reach the PCM on the 2002 Saturn L-Series
- Disconnect the negative battery cable.
- Disconnect the PCM J1 and J2 harness.
- Release the 2 retaining clips on the forward edge.
- Remove the PCM by lifting forward edge of PCM and slide.
- Slide the PCM into the rear lip of the PCM bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | L100 | 0.7 hr |
| Powertrain Control Module R&R | L200 | 0.7 hr |
| Powertrain Control Module R&R | LW200 | 0.7 hr |
| Powertrain Control Module Relearn | L100 | 0.5 hr |
| Powertrain Control Module Relearn | L200 | 0.5 hr |
| Powertrain Control Module Relearn | LW200 | 0.5 hr |
| Engine Control Module R&R | L100 | 0.7 hr |
| Engine Control Module R&R | L200 | 0.7 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure requires relearning and security system pass‑lock relearn steps. Flagship One units arrive VIN‑programmed, so those steps are already completed. The PCM will automatically learn the crankshaft variation while driving, eliminating the need for manual learning.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
Typical symptoms of a failing PCM include engine stalling, misfires, or a non‑start condition. If you see diagnostic codes, such as PCM internal error, it often indicates a communication or memory issue within the module. Other signs are a flashing Service Engine Soon light or reduced throttle response.
Module Trouble Codes on the 2002 Saturn L-Series
The following list contains internal trouble codes that can appear in the PCM of a 2002 Saturn L‑Series. These codes are specific to the module’s internal diagnostics and may require replacement if persistent.
Factory Service Bulletins Worth Knowing
Service bulletin #02‑T‑17 notes that the SES lamp may illuminate with codes P0130 or P0150 stored in the ECM memory. Bulletin #04‑06‑04‑085 indicates that in subfreezing temperatures, the SES or reduced power lamp may light and DTCs P0638, P1510, or P1516 can be stored. Bulletin #07‑00‑89‑043 addresses warranty administration for parts not issued through General Motors.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | SES Lamp Illuminated with P0130 and/or P0150 Set in ECM Memory – (Apr 30, 2003) | Some customers may comment the service engine soon (SES) lamp is |
| 04-06-04-085 | Service Engine Soon (SES) and/or Reduced Power Lamp Illuminating Following Cold Engine Start Up | Some customers may comment on the Service Engine Soon (SES) and/or Reduced Power lamp illuminating and limited throttle response immediately following cold… |
| 07-00-89-043 | Warranty Admin. – Use of Parts and Components (Including Control Module Calibrations) Not Issue | — |
Protecting the PCM in Your 2002 Saturn L-Series
- Keep the charging system in good condition to avoid voltage spikes that can damage the PCM.
- Ensure all connectors are clean and free of corrosion to maintain reliable communication.
- Avoid using a jump‑start cable that exceeds the PCM’s voltage tolerance.
- Address any diagnostic codes promptly to prevent further damage.
- Check connector seals regularly to prevent moisture ingress.
Frequently Asked Questions
What should I do if my 2002 Saturn L‑Series shows a P0601 code after a PCM replacement?
If a P0601 code appears after a replacement, it usually indicates a communication fault. Verify that the PCM is properly seated, connectors are clean, and the module is correctly programmed. If the code persists, a diagnostic scan for additional faults is recommended.
Is the PCM in my 2002 Saturn L‑Series required to relearn the crankshaft variation?
No. The ECM will automatically learn the crankshaft variation while driving. No manual procedure is necessary for this part of the relearn process.
Can I skip the Security System Passlock relearn after installing a new PCM?
The factory procedure requires a Security System Passlock relearn. However, if you use a VIN‑programmed unit from Flagship One, that step is already completed, so you do not need to perform it again.
When dealing with PCM issues on your 2002 Saturn L‑Series, you have the option of a traditional repair or a refurbished replacement. A refurbished unit can offer a cost‑effective solution while still meeting the vehicle’s performance needs.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Saturn L-Series with a lifetime warranty, free shipping and no core charge. The full Saturn L-Series module lineup covers other engine configurations as well.
Final Thoughts
A PCM replacement on a 2002 Saturn L‑Series restores essential engine functions and can resolve warning lights or codes. If you’re experiencing related symptoms, consider a professional evaluation to determine the best course of action.
