2003 Saturn L-Series PCM & ECM Replacement Guide
The Powertrain Control Module (PCM) and Engine Control Module (ECM) on your 2003 Saturn L-Series is the central computer managing engine operation, transmission shifting, emissions controls, and the Passlock security system. Module failure typically stems from internal electrical faults, voltage spikes, or moisture intrusion.
Quick Summary
- PCM and ECM share identical labor times of 0.3 hours for removal and replacement on both L200 and LW200 models
- Relearn procedures add 0.5 hours per module after replacement to calibrate the new unit to your vehicle
- Factory caution requires recording remaining engine oil life before replacement to avoid it resetting to 100%
- Module-internal codes like P0601-P0607 indicate various internal memory and processor failures specific to this vehicle
- The Passlock security relearn procedure is mandatory after programming a new or refurbished module
If your 2003 Saturn L-Series is experiencing starting problems, stalling, or illuminated warning lamps, the Powertrain Control Module or Engine Control Module may be the culprit. This guide explains what these modules do, common failure symptoms, the factory-recommended replacement procedure, and your repair options. Whether you’re a DIY technician or gathering information before a shop visit, understanding the process helps you make informed decisions about your vehicle’s computer system.
What the PCM Does in a 2003 Saturn L-Series
The replacement engine computers for the L-Series serves as the primary electronic brain for your Saturn’s 2.2L engine. The PCM integrates engine and transmission control functions, managing fuel injection, ignition timing, emissions systems, and shift points. The ECM monitors and controls engine operating parameters including airflow, fuel delivery, and catalyst efficiency. Both modules communicate with the Passlock theft-deterrent system to enable starting. When these modules fail, your vehicle may not start, run poorly, or display multiple diagnostic trouble codes. The modules are essentially non-repairable — replacement with a programmed unit is the only fix when internal faults occur.
What Replacing the PCM Involves

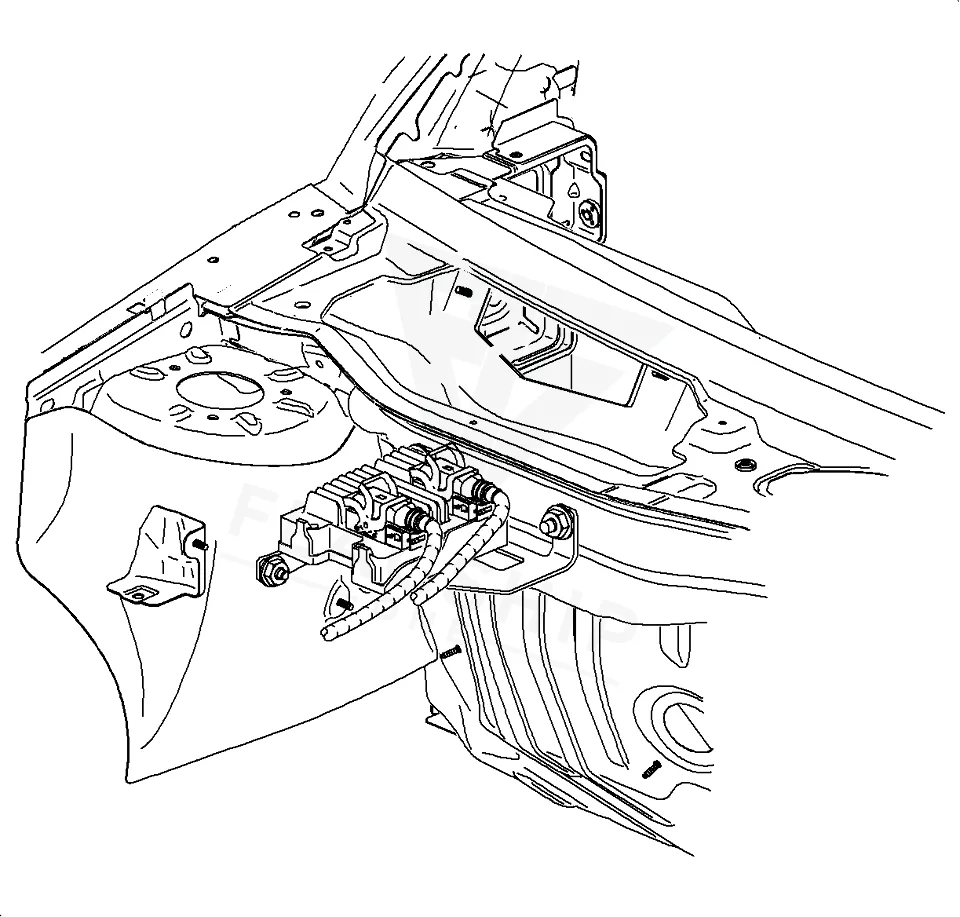

How to Reach the PCM on the 2003 Saturn L-Series
- Disconnect the negative battery cable.
- Disconnect the powertrain control module (PCM) J1.
- Release the 2 retaining clips on the forward edge.
- Remove the PCM by lifting forward edge of PCM and slide.
- Slide the PCM into the rear lip of the PCM bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | L200 | 0.3 hr |
| Powertrain Control Module R&R | LW200 | 0.3 hr |
| Powertrain Control Module Relearn | L200 | 0.5 hr |
| Powertrain Control Module Relearn | LW200 | 0.5 hr |
| Engine Control Module R&R | L200 | 0.3 hr |
| Engine Control Module R&R | LW200 | 0.3 hr |
| Engine Control Module Relearn | L200 | 0.5 hr |
| Engine Control Module Relearn | LW200 | 0.5 hr |
Programming Requirements After Replacement
After installing a new or refurbished PCM, the factory procedure requires reprogramming the module with the correct software and calibrations using the Service Stall System (SSS) tool. Once reprogramming is complete, you must perform the Passlock Relearn Procedure using the SSS to enable the theft-deterrent system to recognize the new module. Additionally, technicians should record the remaining engine oil life from the old module and program that value into the replacement — otherwise the oil life monitor defaults to 100%, which could lead to overdue oil changes. A VIN-programmed replacement unit arrives pre-programmed with the correct software for your specific vehicle identification number, eliminating most of these programming steps and reducing overall repair time.
Symptoms of a Failing PCM
When the PCM or ECM fails on your 2003 Saturn L-Series, common symptoms include no-start conditions where the engine cranks but won’t run, intermittent stalling, and poor acceleration. You may notice the Service Engine Soon lamp illuminated along with multiple diagnostic trouble codes. In some cases, the scan tool may not communicate with the module at all, or you might experience transmission shifting problems, rough idle, and cylinder misfire codes. The internal memory check sum code is one of several module-internal faults that can trigger the check engine light. Voltage spikes from jump-starting or a weak charging system can contribute to premature module failure.
Module Trouble Codes on the 2003 Saturn L-Series
The 2003 Saturn L-Series may store module-internal trouble codes when the internal processor, memory, or calibration circuits fail. These codes include P0601 through P0607 covering various memory and processor integrity issues, along with P1600 and P1621-P1632 codes related to communication and calibration faults, plus P1680, P1681, and P1683 indicating additional processor or circuit failures. These codes typically require module replacement rather than repair.
Factory Service Bulletins Worth Knowing
Factory service bulletin #04-06-04-085 addresses an issue where the Service Engine Soon lamp and Reduced Power lamp may illuminate following cold starts in subfreezing temperatures, with diagnostic trouble codes P0638, P1510, and P1516 stored in the ECM. Bulletin #03-00-89-025 clarifies the labor codes used for reprogramming vehicle controllers, while bulletin #07-00-89-043 covers warranty administration regarding the use of parts and components not issued through General Motors.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-06-04-085 | Service Engine Soon (SES) and/or Reduced Power Lamp Illuminating Following Cold Engine Start Up | Some customers may comment on the Service Engine Soon (SES) and/or Reduced Power lamp illuminating and limited throttle response immediately following cold… |
| 07-00-89-043 | Warranty Admin. – Use of Parts and Components (Including Control Module Calibrations) Not Issue | — |
| 03-00-89-025 | Info – Clarification of Labor Codes Used for Reprogramming Vehicle Controllers – (Aug 29, 2003) | — |
Protecting the PCM in Your 2003 Saturn L-Series
- Maintain your vehicle’s charging system — a failing alternator or weak battery can cause voltage fluctuations that damage the module
- Ensure all ground connections to the PCM/ECM are clean and secure to prevent electrical noise and erratic operation
- Avoid jump-starting from another vehicle when possible, or use proper voltage surge protection to prevent voltage spikes
- Address diagnostic trouble codes promptly — ignoring codes can lead to secondary damage to the control module
- Keep engine compartment seals intact and inspect module connectors for corrosion or moisture intrusion regularly
Frequently Asked Questions
Can I replace the PCM on my 2003 Saturn L-Series with a used unit from a salvage yard?
A used PCM requires reprogramming with GM software and the Passlock Relearn Procedure to function in your specific vehicle. Without proper programming, the engine may not start. Flagship One units arrive VIN-programmed, eliminating most post-install programming steps.
Will my 2003 Saturn L-Series run normally after PCM replacement?
After replacement and relearn, your vehicle should run normally provided the new module is correctly programmed. The oil life monitor must be reset to your recorded remaining percentage to avoid premature oil change reminders.
How do I know if my Saturn L-Series has a PCM or ECM problem versus another issue?
Symptoms like no-start, multiple random trouble codes, failed scan-tool communication, or transmission shifting problems point to the control module. A qualified technician can diagnose by checking for module-internal codes and verifying power and ground connections.
When your 2003 Saturn L-Series requires a new control module, you have two primary options: a brand-new OEM unit from the dealer at higher cost, or a refurbished or remanufactured replacement. Flagship One offers VIN-programmed replacement units configured specifically for your vehicle, which means the Passlock system and calibrations are pre-loaded — your mechanic completes the relearn procedure without needing full software reprogramming. This can reduce labor time and overall repair cost while providing a reliable solution for your L-Series.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Saturn L-Series with a lifetime warranty, free shipping and no core charge. The full Saturn L-Series module lineup covers other engine configurations as well.
Final Thoughts
The PCM and ECM in your 2003 Saturn L-Series are critical components that manage your vehicle’s engine and transmission functions. When failure occurs, replacement with a properly programmed unit restores full operation. Whether you choose dealer parts or a VIN-programmed replacement from Flagship One, understanding the labor requirements and programming procedures helps ensure a successful repair on your Saturn.
