2002 Saturn S-Series PCM Replacement and Reprogramming Guide
The Powertrain Control Module (PCM) in your 2002 Saturn S-Series manages engine and transmission functions. Failures may cause starting issues, poor performance, or stored trouble codes related to internal memory or communication faults.
Quick Summary
- PCM controls engine and transmission operations in the 2002 Saturn S-Series.
- Replacement typically requires 0.7 hours of labor, plus relearn procedures.
- Factory cautions include battery disconnect and mandatory reprogramming for new modules.
- Internal trouble codes like P0601 may indicate PCM failure.
- Flagship One units arrive pre-programmed to your VIN, simplifying installation.
If your 2002 Saturn S-Series is experiencing starting problems, stalling, or unusual engine behavior, the Powertrain Control Module (PCM) may be at fault. This critical component oversees engine and transmission functions, and its failure can lead to a range of issues. Replacing the PCM involves specific steps, including disconnecting the battery and performing a relearn procedure. Factory guidelines also require reprogramming for new modules to ensure proper communication with other vehicle systems. Understanding these requirements helps you make informed decisions about repairs or replacements, ensuring your Saturn runs reliably.
What the PCM Does in a 2002 Saturn S-Series
The Powertrain Control Module (PCM) in your 2002 Saturn S-Series acts as the brain for engine and transmission operations. It regulates fuel delivery, ignition timing, and emissions controls while monitoring sensor inputs to optimize performance. A faulty PCM may disrupt these functions, leading to poor drivability or even a no-start condition. When replacement becomes necessary, choosing replacement engine computers for the Saturn S-Series ensures compatibility with your vehicle’s specific calibration needs. The module’s role is critical, as it directly impacts how your engine responds to driving conditions and maintains efficiency.
Where the PCM Is Located and What Replacement Involves
In the 2002 Saturn S-Series, the PCM is typically located near the engine bay or under the dashboard, depending on the model variant. Replacing the module involves disconnecting the negative battery cable as a safety precaution. Labor time for removal and reinstallation is estimated at 0.7 hours for both the SC1 and SL1 models. After installation, a relearn procedure of 0.5 hours is required to synchronize the PCM with the vehicle’s systems. If a new PCM is installed, factory guidelines specify that steps 6–10 of the procedure must be followed to ensure proper functionality.

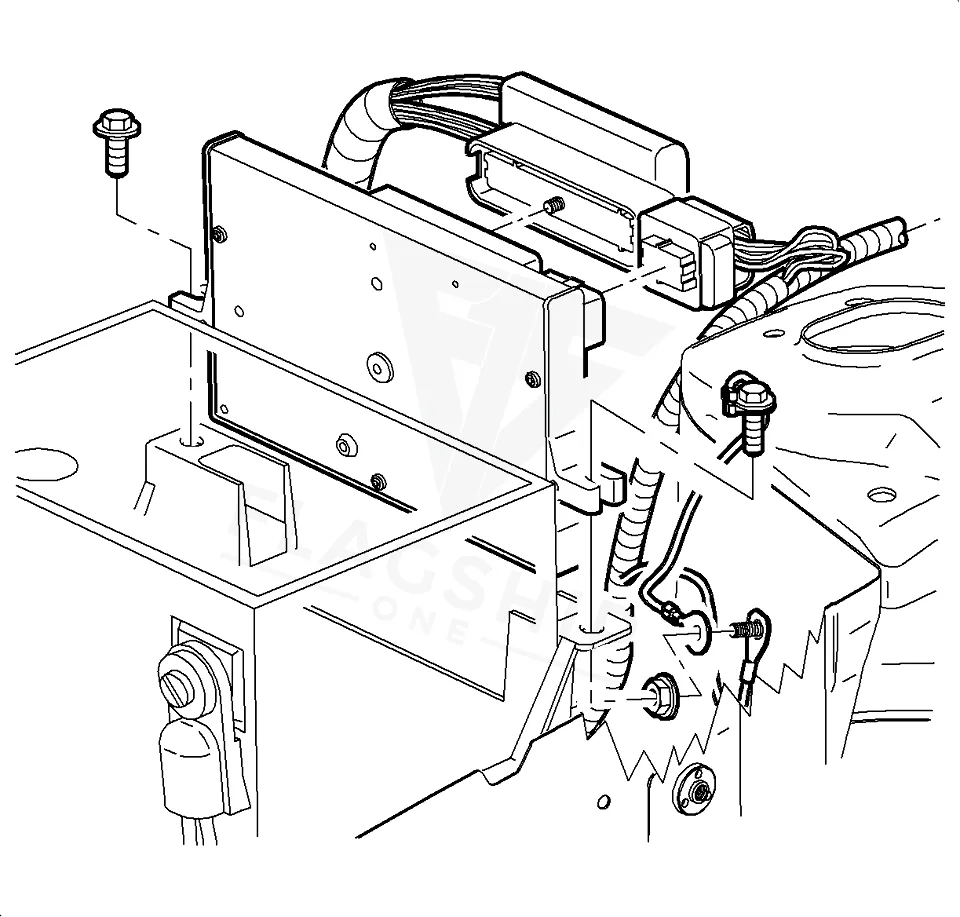

How to Reach the PCM on the 2002 Saturn S-Series
- Disconnect the negative battery cable.
- Disconnect the PCM J2 black 28-way harness.
- Remove the PCM J1 black 80-way connector bolt and.
- Remove the powertrain control module (PCM) attachment bolts.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | SC1 | 0.7 hr |
| Engine Control Module R&R | SL1 | 0.7 hr |
| Engine Control Module Relearn | SC1 | 0.5 hr |
| Engine Control Module Relearn | SL1 | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM in your 2002 Saturn S-Series, factory procedures require reprogramming the module with updated software and calibrations. This step is essential for the PCM to learn the Passlock password from the body control module (BCM) and allow the engine to start. The ignition must be cycled once reprogramming is complete to finalize the process. Opting for a VIN-programmed replacement unit eliminates the need for these additional steps, as the module arrives ready to install and operate with your vehicle’s existing systems.
Symptoms of a Failing PCM
A failing PCM in your 2002 Saturn S-Series may cause symptoms like intermittent stalling, rough idling, or a no-start condition. You might also notice poor acceleration, shifting issues, or the check engine light illuminating with codes related to internal module faults. Common trouble codes include internal control module memory checksum error, which often points to a corrupted or failing PCM. Other indicators may include erratic sensor readings or a complete loss of communication with a scan tool, signaling the need for further diagnosis or replacement.
Module Trouble Codes on the 2002 Saturn S-Series
The 2002 Saturn S-Series PCM may generate specific trouble codes when internal faults occur. These codes help identify issues related to memory, communication, or calibration errors within the module itself.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P1621 | Control module long-term memory performance | Full P1621 guide → |
| P1624 | Module-internal fault | — |
| P1626 | Module-internal fault | — |
| P1635 | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 2002 Saturn S-Series address important considerations for PCM replacement and reprogramming. Bulletin #07-00-89-043 emphasizes using only General Motors-issued parts and calibrations to avoid compatibility issues. Bulletin #03-00-89-025 clarifies labor codes for reprogramming vehicle controllers, ensuring proper billing and procedure documentation. Additionally, bulletin #06-06-04-037 explains normal Malfunction Indicator Lamp (MIL) behavior during OBD inspections, helping distinguish expected operations from potential faults.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 07-00-89-043 | Warranty Admin. – Use of Parts and Components (Including Control Module Calibrations) Not Issue | — |
| 03-00-89-025 | Info – Clarification of Labor Codes Used for Reprogramming Vehicle Controllers – (Aug 29, 2003) | — |
| 06-06-04-037 | Info – Normal Characteristics of Malfunction Indicator Lamp (MIL) During On-Board Diagnostic (O | — |
Protecting the PCM in Your 2002 Saturn S-Series
- Maintain a healthy charging system to prevent voltage spikes that may damage the PCM.
- Ensure clean, tight electrical connections at the battery and module harness.
- Avoid jump-starting with improper voltage, which can harm sensitive electronics.
- Address trouble codes promptly to prevent cascading system failures.
- Keep the PCM connector seals intact to prevent moisture intrusion.
- Use dielectric grease on connectors to reduce corrosion risk.
Frequently Asked Questions
Why does my 2002 Saturn S-Series need a PCM relearn after replacement?
The relearn procedure synchronizes the new PCM with the vehicle’s body control module (BCM) and other systems. This step ensures proper communication, including the Passlock password exchange, which is necessary for the engine to start. Skipping this process may result in a no-start condition or poor performance.
Can I install a used PCM in my 2002 Saturn S-Series without reprogramming?
A used PCM may require reprogramming to match your vehicle’s VIN and calibration settings. Without this step, the module may not communicate correctly with other systems, leading to drivability issues or stored trouble codes. Factory guidelines recommend reprogramming for all new or used PCM installations.
What causes PCM failure in a 2002 Saturn S-Series?
PCM failure may result from voltage spikes, moisture intrusion, or internal component degradation over time. Poor electrical connections or exposure to extreme temperatures can also contribute to premature failure. Regular maintenance and addressing trouble codes early can help extend the module’s lifespan.
If your 2002 Saturn S-Series requires a PCM replacement, you have options between a repair attempt or a refurbished replacement. Given the labor and programming requirements, a pre-programmed module can save time and ensure proper functionality. Consider the vehicle’s age and condition when deciding the best approach for reliable performance.
