2017 Hyundai Sonata Hybrid ECM/PCM Replacement Guide
In the 2017 Hyundai Sonata Hybrid, the engine control module manages fuel delivery, ignition timing and communication with the powertrain. A failure typically results from internal circuitry loss, causing loss of drive‑train control and diagnostic trouble codes such as P0605.
Quick Summary
- ECM removal usually takes about half an hour of labor.
- Factory torque for ECM bolts and nuts ranges from 9.8 to 11.8 N·m.
- VIN must be programmed into the new ECM after installation.
- Typical fault code for this vehicle is P0605.
When the engine control module in your 2017 Hyundai Sonata Hybrid begins to malfunction, you may notice rough idle, loss of power or a complete no‑start condition. Understanding what the ECM does, where it sits, and how to replace it can help you avoid unnecessary downtime. This guide walks you through the location, removal, reinstall torque, required programming steps and common symptoms, so you know exactly what to expect before starting the job.
What the PCM Does in a 2017 Hyundai Sonata Hybrid
The engine control module in a 2017 Hyundai Sonata Hybrid regulates engine speed, fuel injection and coordinates with the transmission. It also stores the vehicle identification number for authentication. Proper operation is essential for fuel efficiency and emissions compliance. The module is part of the vehicle’s electronic architecture and works closely with the powertrain control module. For replacement, you may encounter Sonata Hybrid replacement computers that match the original specifications.

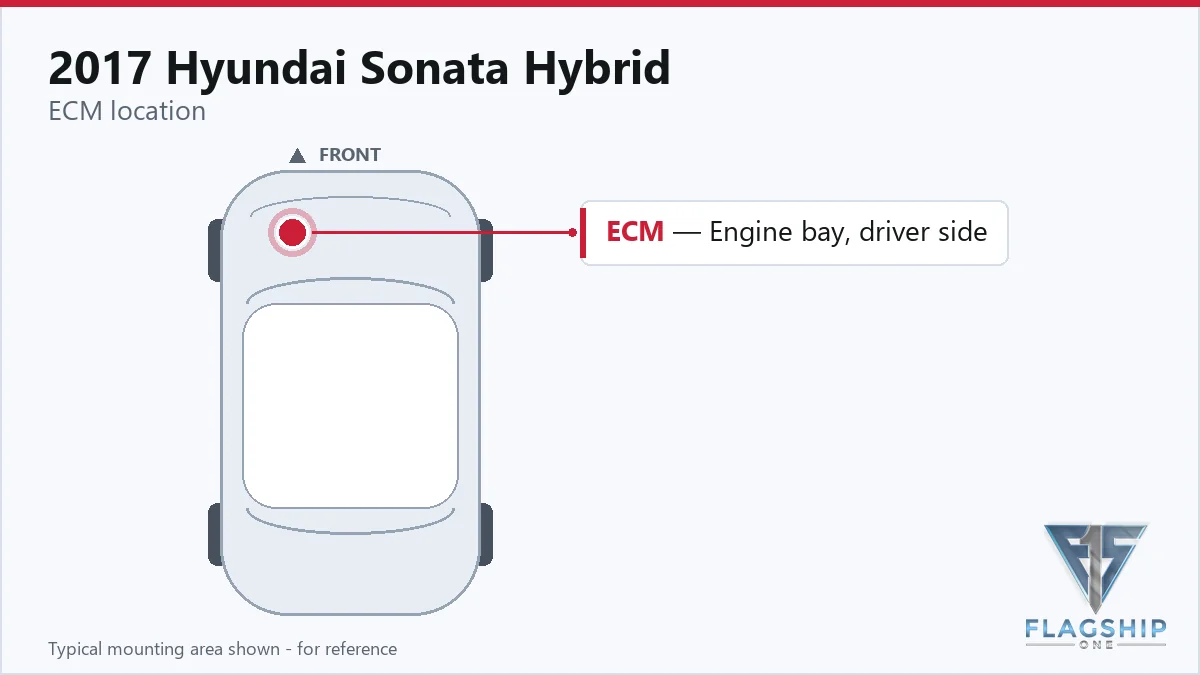

Where the PCM Is Located and What Replacement Involves
The ECM is mounted adjacent to the air cleaner assembly, allowing factory technicians to reach it without removing major components. The service book lists a removal and reinstall time of 0.5 hours for both the engine control module and the powertrain control module. When reinstalling, tighten the mounting bolts and nuts to a torque value between 9.8 and 11.8 N·m. The same torque applies to both fasteners, ensuring a secure fit and proper electrical grounding.
How to Reach the PCM on the 2017 Hyundai Sonata Hybrid
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Disconnect the ECM Connector.
- Remove the air cleaner assembly.
- Remove the mounting bolts and nut, and then remove the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the ECM is physically installed, the factory procedure requires programming the vehicle identification number into the new unit. Flagship One supplies a a VIN-programmed replacement unit that arrives already coded, eliminating the need for on‑site VIN entry and reducing the chance of programming errors.
Symptoms of a Failing PCM
A failing ECM in the 2017 Hyundai Sonata Hybrid may cause the engine to refuse to start, stall unexpectedly, or trigger rough idle. You might also see loss of transmission shifting or a complete loss of communication with the scan tool. When the internal fault occurs, the system often logs ECM internal fault P0605, indicating a problem with the module’s internal circuitry.
Module Trouble Codes on the 2017 Hyundai Sonata Hybrid
The following diagnostic trouble code is commonly associated with ECM issues in this vehicle:
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin #04-36-019 addresses VIN writing during ECM and PCM replacement for model years beginning in 2005. Bulletin 15‑GI‑001 provides general information on updating the ECU using a tablet‑based GDS mobile system.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-36-019 | TSB • Fuel System • [04-36-019] 2005MY ECM AND PCM VIN WRITING DURING CONTROL MODULE REPLACEMEN | — |
| — | TSB • General Information • [15-GI-001] ECU UPDATE PROCEDURE FOR TABLET-BASED GDS MOBILE | — |
Protecting the PCM in Your 2017 Hyundai Sonata Hybrid
- Maintain a healthy charging system to avoid voltage spikes.
- Inspect and clean ground connections and connector pins regularly.
- Avoid jump‑starting the vehicle unless absolutely necessary.
- Address any stored trouble codes promptly before they worsen.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What labor time is required to replace the ECM on a 2017 Hyundai Sonata Hybrid?
The factory service book lists about half an hour of labor for removal and the same for reinstall, totaling roughly one hour.
Do I need special tools to torque the ECM bolts on a 2017 Hyundai Sonata Hybrid?
A torque wrench set to between 9.8 and 11.8 N·m is sufficient to secure both the bolts and nuts to the correct specification.
Is VIN programming required after installing a new ECM in a 2017 Hyundai Sonata Hybrid?
Yes, the factory procedure calls for programming the VIN into the new module, which Flagship One units already include.
When the ECM fails, you can choose to have a qualified shop perform a repair or install a refurbished replacement that meets original specifications. Both options require the same torque and programming steps, but a pre‑programmed unit may reduce shop time and the chance of errors.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2017 Hyundai Sonata Hybrid with a lifetime warranty, free shipping and no core charge. The full Hyundai Sonata Hybrid module lineup covers other engine configurations as well.
Final Thoughts
For owners of a 2017 Hyundai Sonata Hybrid, understanding ECM replacement helps you keep the vehicle running smoothly. Whether you opt for a repair or a certified refurbished unit, following the proper steps ensures reliable performance.
