2016 Hyundai Sonata Hybrid ECM and PCM Control Module Guide
The engine and powertrain control modules act as the primary processing centers for the 2016 Hyundai Sonata Hybrid. These computers manage fuel injection and ignition timing, and a failure typically results in poor engine performance or a complete no-start condition.
Quick Summary
- The control module is situated adjacent to the air filter housing.
- Installing the ECM requires a torque of 9.8 to 11.8 N·m for bolts and nuts.
- Factory replacements require the VIN to be written into the module memory.
- Internal hardware faults may trigger the P0605 diagnostic trouble code.
Owning a 2016 Hyundai Sonata Hybrid means relying on a complex integration of electric and gasoline power. At the center of this system are the Engine Control Module (ECM) and Powertrain Control Module (PCM), which serve as the digital brain for the vehicle. When these components experience internal hardware failure or software corruption, the car may behave unpredictably, ranging from minor efficiency losses to a total failure to ignite. For many owners, identifying the root cause of a driveability issue often leads back to these critical computers. Understanding the role of these modules, how they are accessed, and the specific requirements for replacing them is essential for a successful repair. By reviewing the technical requirements for installation and the necessity of vehicle identification programming, you can better understand the process of restoring your vehicle to factory operating standards and ensuring the hybrid system functions as intended.
What the PCM Does in a 2016 Hyundai Sonata Hybrid
The ECM and PCM in the 2016 Hyundai Sonata Hybrid are responsible for monitoring a vast array of sensors to ensure the 2.0L engine operates efficiently. These modules calculate the precise amount of fuel to inject and the exact moment to spark the cylinders, while also managing the transition between electric propulsion and internal combustion. Because the hybrid system requires seamless coordination, the computer must constantly adjust parameters based on battery state and driver demand. Over time, heat cycles and electrical stress may cause internal circuitry to degrade, necessitating the use of replacement engine computers for the 2016 Hyundai Sonata Hybrid to restore function. If the module cannot process data correctly, the vehicle may enter a limp mode to protect the powertrain. This ensures that the engine does not sustain physical damage when the electronic control signals become erratic or stop entirely, making the health of these modules paramount for the longevity of the hybrid drivetrain.
Where the PCM Is Located and What Replacement Involves

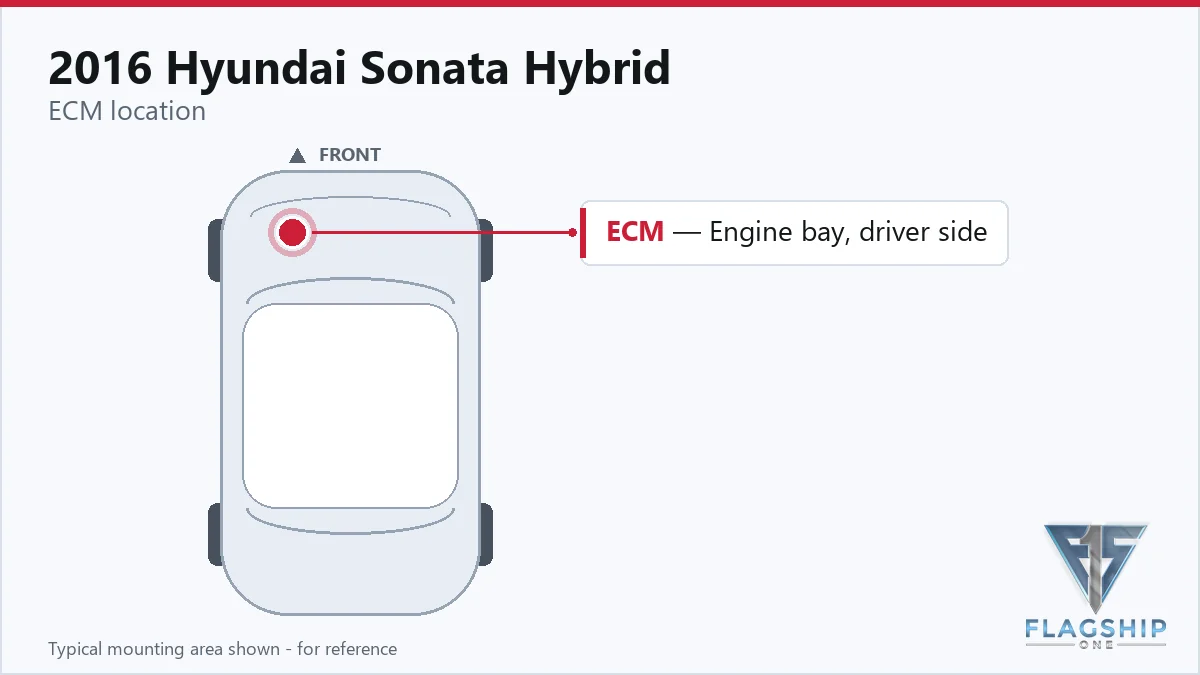

The control module is located in the engine compartment, specifically adjacent to the air filter housing. Accessing the unit is relatively straightforward, with the removal and installation of the ECM typically taking 0.5 hours. Similarly, the PCM removal and installation is also listed at 0.5 hours. When securing the ECM, it is important to use a torque wrench to tighten both the installation bolts and the nuts to a specification of 9.8 to 11.8 N·m. Beyond the physical swap, the process involves a reset period of 0.3 hours and a relearn procedure that typically requires 0.5 hours for the ECM and 0.5 hours for the PCM. Following these precise factory steps helps ensure the module is seated correctly and the electronic connections are secure.
How to Reach the PCM on the 2016 Hyundai Sonata Hybrid
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Disconnect the ECM Connector.
- Remove the air cleaner assembly.
- Remove the mounting bolts and nut, and then remove the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After a new factory module is installed in a 2016 Hyundai Sonata Hybrid, the technician must program the Vehicle Identification Number (VIN) into the unit. Without this specific identifier, the module may not communicate correctly with other vehicle systems, potentially preventing the car from starting or triggering various warning lights. To simplify this process, Flagship One provides a VIN-programmed replacement unit that arrives with the necessary identification already stored in the memory. This eliminates the need for specialized dealership scanning tools and the labor associated with manual VIN writing, allowing the vehicle to return to service more quickly while ensuring the computer is perfectly matched to your specific vehicle.
Symptoms of a Failing PCM
A failing control module in the 2016 Hyundai Sonata Hybrid often manifests as a total no-start condition or sudden stalling while driving. You may notice that the engine struggles to maintain a steady idle or experiences intermittent misfires that affect overall smoothness. In some cases, the scan tool may show a complete lack of communication with the PCM, meaning the computer is no longer responding to requests. A common indicator of internal failure is the presence of an internal control module error P0605, which points directly to a problem within the computer’s own circuitry. Other symptoms may include erratic shifting patterns or a failure of the hybrid system to engage the gasoline engine when the battery is low. These issues typically stem from corrupted memory or failed capacitors within the module housing.
Module Trouble Codes on the 2016 Hyundai Sonata Hybrid
The following internal diagnostic trouble codes are specifically associated with the control modules for this vehicle.
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Factory Service Bulletins Worth Knowing
Technical Service Bulletin #04-36-019 addresses the process of VIN writing during the replacement of the ECM and PCM. This bulletin provides guidance on ensuring the correct vehicle identification is programmed into the new control modules to maintain proper system operation.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-36-019 | TSB • Fuel System • [04-36-019] 2005MY ECM AND PCM VIN WRITING DURING CONTROL MODULE REPLACEMEN | — |
Protecting the PCM in Your 2016 Hyundai Sonata Hybrid
- Maintain a healthy charging system to prevent voltage drops.
- Ensure all ground connections are clean and tight.
- Avoid using jump-starters that can cause high-voltage spikes.
- Address diagnostic trouble codes immediately to prevent further damage.
- Keep the module connector seals intact to block moisture.
- Keep the engine bay free of excessive debris and contaminants.
Frequently Asked Questions
Where is the ECM located on the 2016 Hyundai Sonata Hybrid?
The module is positioned in the engine bay next to the air cleaner assembly. This placement allows for relatively quick access during replacement.
What torque should I use for the 2016 Hyundai Sonata Hybrid ECM bolts?
Both the bolts and nuts used to secure the ECM should be tightened to between 9.8 and 11.8 N·m.
Does the 2016 Hyundai Sonata Hybrid require VIN programming for a new PCM?
Yes, the factory procedure requires the VIN to be programmed into the module for it to function correctly with the vehicle’s systems.
How long does it typically take to replace the ECM in this vehicle?
The physical removal and installation are estimated at 0.5 hours, with additional time needed for the reset and relearn processes.
What does code P0605 mean for my 2016 Hyundai Sonata Hybrid?
This code generally indicates an internal malfunction within the engine control module’s hardware or software.
When facing a module failure in your 2016 Hyundai Sonata Hybrid, you have a choice between attempting a complex circuit repair or opting for a professional replacement. While some may try to solder internal components, a refurbished replacement is often the more reliable path for maintaining the strict tolerances of a hybrid powertrain. Choosing a pre-programmed unit ensures that the vehicle’s electronic harmony is restored without the need for expensive dealership programming appointments.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Hyundai Sonata Hybrid with a lifetime warranty, free shipping and no core charge. The full Hyundai Sonata Hybrid module lineup covers other engine configurations as well.
Final Thoughts
The 2016 Hyundai Sonata Hybrid relies heavily on its ECM and PCM to balance its dual-power system. Addressing internal faults like P0605 quickly can prevent further drivetrain issues. By following the correct torque and programming requirements, you can ensure a lasting repair. If you need a reliable replacement, consider a VIN-programmed module to get your vehicle back on the road efficiently.
