2017 GMC Terrain Engine Control Module Replacement Guide
In the 2017 GMC Terrain the Engine Control Module (ECM) acts as the vehicle’s brain, interpreting sensor data to manage fuel injection, ignition timing and emissions. A failure typically disables engine management, leading to loss of power, rough idle, or a complete no‑start condition. The ECM also stores diagnostic codes that point to internal processor or communication faults.
Quick Summary
- ECM removal takes about 1.5 hours of labor.
- Relearn procedures add roughly 1 hour total.
- Electrostatic precautions require disconnecting the negative battery.
- Factory programming is required after any ECM swap.
When a 2017 GMC Terrain begins to exhibit irregular idle, stalling, or refuses to start, the engine control module often lies at the heart of the issue. Understanding how this component functions, where it resides, and what the factory mandates for replacement can save you time and prevent unnecessary damage. This guide walks you through the essential steps—from safe removal to post‑install programming—so you know exactly what to expect and how to protect your vehicle’s powertrain electronics.
What the PCM Does in a 2017 GMC Terrain
The Engine Control Module in a 2017 GMC Terrain receives input from dozens of sensors, processes that information, and commands actuators that control fuel delivery, spark timing and emission systems. By continuously monitoring engine conditions, it ensures optimal performance and compliance with emissions standards. When the ECM fails, the vehicle may lose power, run erratically, or generate internal fault codes. Proper replacement is critical because the module also stores calibration data unique to each engine. For owners seeking a direct swap, Terrain engine control module replacements provide a ready‑made solution that matches the original specifications.

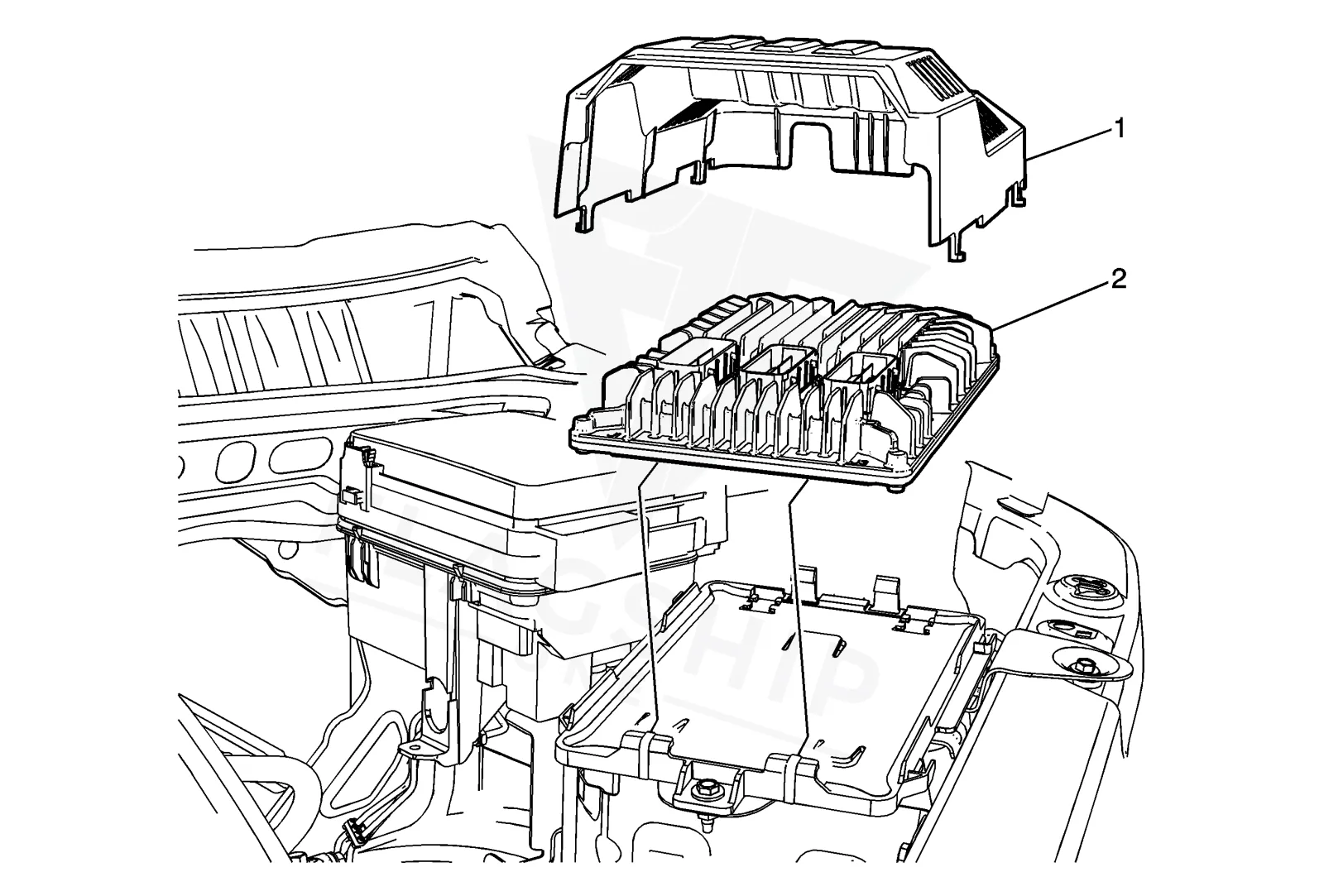

Where the PCM Is Located and What Replacement Involves
The ECM is mounted within the engine compartment, typically attached to the firewall near the intake manifold. Access requires removal of the negative battery cable to prevent electrostatic discharge, as highlighted in the factory caution. Once the battery is disconnected, the module can be unbolted and unplugged; the labor book time for removal and reinstall is listed as 1.5 hours. After the unit is secured, the negative cable is reconnected and the system is ready for the relearn procedures, which together add an additional hour of shop time.
How to Reach the PCM on the 2017 GMC Terrain
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Release the plastic retaining tabs.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.5 hr |
Programming Requirements After Replacement
After installing a new ECM, the factory procedure calls for a full reprogramming sequence that includes a powertrain control module relearn (0.5 hours), an engine control module relearn (0.5 hours) and a complete ECM reset using the EL‑49642 SPS programming support tool. Flagship One supplies a VIN-programmed replacement unit that arrives already calibrated for your vehicle, eliminating the need for those on‑site programming steps and reducing the overall turnaround time.
Symptoms of a Failing PCM
Owners of a 2017 GMC Terrain may notice a sudden loss of power, intermittent stalling, or an inability to start the engine when the ECM is compromised. Diagnostic scans often reveal internal communication faults such as processor communication fault, which point directly to the module itself. Additional signs include erratic idle, poor fuel economy, and illumination of the check‑engine light with codes related to processor or data bus errors. These symptoms typically persist until the ECM is either repaired or replaced and the required relearn procedures are completed.
Module Trouble Codes on the 2017 GMC Terrain
The following internal fault codes are documented for the 2017 GMC Terrain’s engine control module:
Factory Service Bulletins Worth Knowing
Service bulletin #PIP5373B, dated June 11 2018, addresses ECM error codes E4491 and E4423, providing guidance on diagnostic and reprogramming steps.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Program ECM Error E4491/E4423 – (Jun 11, 2018) | — |
Protecting the PCM in Your 2017 GMC Terrain
- Maintain a healthy charging system to avoid voltage spikes.
- Ensure all ground connections are clean and secure.
- Protect the ECM connector pins from direct contact.
- Address any diagnostic codes promptly before they worsen.
- Avoid jump‑starting the vehicle unless absolutely necessary.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What are the typical labor hours for replacing the ECM in a 2017 GMC Terrain?
Factory labor guides list about 1.5 hours for removal and installation, plus roughly one hour for the required relearn procedures.
Do I need special tools to program a new ECM in a 2017 GMC Terrain?
The factory recommends the EL‑49642 SPS programming support tool for a complete reprogram, but a VIN‑programmed replacement from Flagship One eliminates that step.
Can I reuse the original ECM after it has been repaired?
If the original unit is restored to factory specifications, it must still undergo the same relearn and programming steps as a new module.
What precaution should I take to avoid damaging the ECM during removal?
Disconnect the negative battery cable and avoid touching the connector pins to prevent electrostatic discharge.
Is there a specific service bulletin that covers ECM errors for this model?
Yes, bulletin #PIP5373B from June 2018 provides procedures for addressing error codes E4491 and E4423.
When the engine control module fails in a 2017 GMC Terrain, you can choose a factory‑approved repair or a refurbished replacement. Both options restore functionality, but a VIN‑programmed unit from Flagship One arrives pre‑calibrated, saving you the extra programming time and ensuring a seamless fit for your vehicle.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2017 GMC Terrain with a lifetime warranty, free shipping and no core charge. The full GMC Terrain module lineup covers other engine configurations as well.
Final Thoughts
Replacing the ECM in your 2017 GMC Terrain restores reliable engine performance and clears internal fault codes. Consider a pre‑programmed replacement to streamline the process and get back on the road with confidence.
