2012 GMC Canyon Powertrain and Engine Control Module Replacement Overview
In the 2012 GMC Canyon the Powertrain Control Module (PCM) and Engine Control Module (ECM) manage engine timing, fuel delivery, transmission shifting and emissions. A failure typically disrupts communication, triggers diagnostic codes and may prevent the engine from starting or running smoothly.
Quick Summary
- Intermittent no‑crank or MIL illumination often points to PCM/ECM corrosion or connection issues.
- Factory labor times are 0.8 h for removal and 0.8 h for installation of each module.
- Relearn procedures after replacement require 0.5 h for PCM and 0.5 h for ECM.
- Proper handling of connector pins prevents ESD damage during service.
When a 2012 GMC Canyon experiences random no‑start events, flashing warning lights or loss of scan‑tool communication, the PCM or ECM may be at fault. Understanding how these modules function, where they reside, and what the factory recommends for removal, installation and programming can help you decide between a repair or a refurbished replacement. This guide outlines the essential steps, labor estimates and precautions so you can address the issue with confidence.
What the PCM Does in a 2012 GMC Canyon
The PCM in a 2012 GMC Canyon controls powertrain functions such as fuel injection, ignition timing and transmission shift strategy, while the ECM oversees engine sensor data and emissions controls. Both modules exchange information across the vehicle network, making them critical for reliable operation. Proper operation ensures the engine starts, runs smoothly and meets emissions standards. replacement engine computers for the Canyon are engineered to match these responsibilities and integrate with the existing wiring harness.

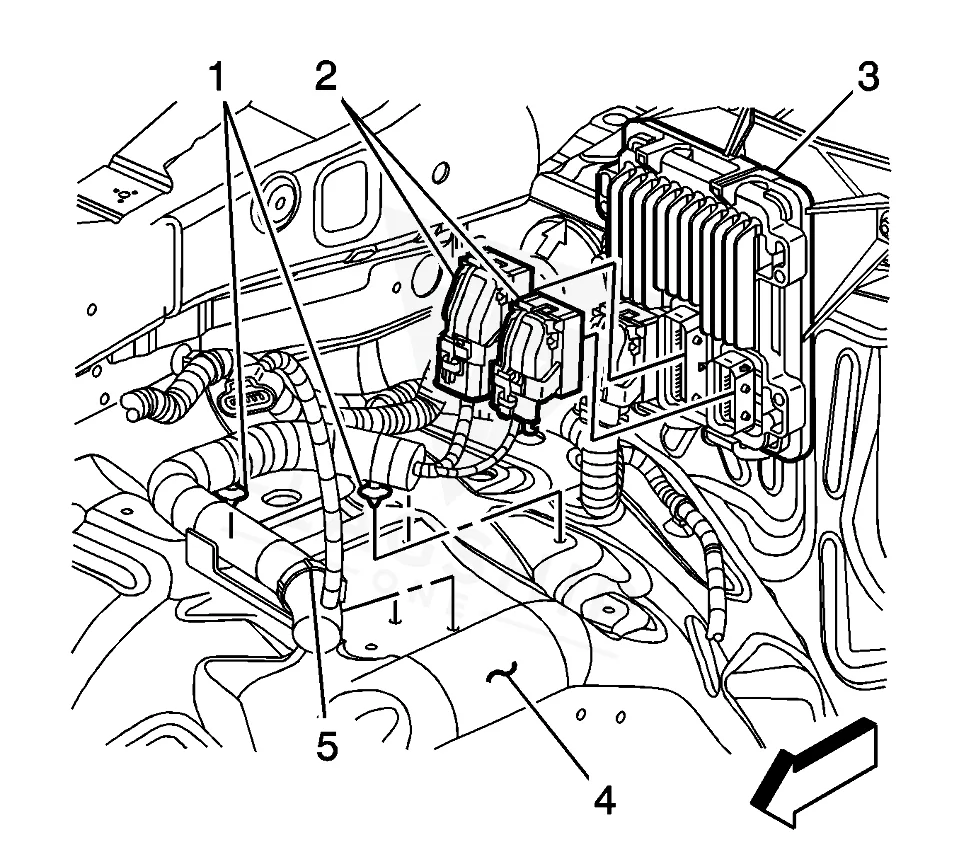

Where the PCM Is Located and What Replacement Involves
The PCM and ECM are mounted within the engine compartment, secured by brackets that must be disengaged before removal. To extract the ECM, first disconnect the bracket mounting tabs as instructed, then lift the unit clear of its housing. Removal of each module typically takes about 0.8 hours, while reinstall follows the same steps in reverse. Avoid touching the connector pins or any soldered components on the circuit board to reduce the risk of electrostatic discharge damage.
How to Reach the PCM on the 2012 GMC Canyon
- Remove the faulty ECM and install the new service ECM.
- Remove any debris from around the control module connector.
- Disconnect the ECM harness connectors from the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure calls for a PCM relearn of 0.5 hours and an ECM relearn of another 0.5 hours, using a scan tool to capture pre‑removal data and then applying the correct program and calibration. Flagship One units arrive as a VIN-programmed replacement unit, so those programming steps are already completed before the part reaches your shop.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2012 GMC Canyon include intermittent no‑crank, occasional MIL illumination, loss of communication with the scan tool and erratic shifting. You may also see diagnostic trouble codes such as communication fault that indicate internal module issues.
Module Trouble Codes on the 2012 GMC Canyon
The following trouble codes have been documented for this vehicle and may appear when the PCM or ECM is malfunctioning:
Factory Service Bulletins Worth Knowing
Service Bulletin #09-06-03-004 (Nov 28 2011) addresses intermittent no‑crank, MIL illumination and other warnings caused by fretting corrosion at the connector. The bulletin recommends disconnecting the affected connector and applying dielectric lubricant to restore reliable contact.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-06-03-004 | Intermittent No Crank/No Start, No Module Communication, MIL, Warning Lights, Vehicle Messages | Some customers may comment on any of the following conditions: An intermittent no crank/no start Intermittent malfunction indicator lamp (MIL) illumination… |
Protecting the PCM in Your 2012 GMC Canyon
- Maintain a healthy charging system to avoid voltage spikes.
- Inspect and clean ground straps and connector pins regularly.
- Use proper jump‑start techniques to limit high‑voltage transients.
- Address diagnostic codes promptly before they recur.
- Ensure connector seals remain intact to keep out moisture.
Frequently Asked Questions
Can a faulty PCM cause a 2012 GMC Canyon to stall while driving?
Yes, because the PCM regulates fuel and ignition timing, a malfunction can result in intermittent stalling or loss of power.
Is it necessary to perform a relearn after replacing the ECM in a 2012 GMC Canyon?
Factory guidance specifies an ECM relearn of about 0.5 hours after installation to ensure the new unit synchronizes with the vehicle’s sensors.
What does Service Bulletin #09-06-03-004 recommend for intermittent no‑crank issues?
The bulletin advises cleaning the affected connector, applying dielectric lubricant, and checking for corrosion that may interrupt communication.
When the PCM or ECM shows signs of failure in a 2012 GMC Canyon, you can either repair the existing unit or replace it with a refurbished module that meets factory specifications. Considering labor times and the required relearn procedures, a properly programmed replacement often offers a quicker return to service while preserving vehicle reliability.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 GMC Canyon with a lifetime warranty, free shipping and no core charge. The full GMC Canyon module lineup covers other engine configurations as well.
Final Thoughts
For owners of a 2012 GMC Canyon, addressing PCM or ECM problems promptly can restore dependable start‑up and performance. Evaluating repair versus a VIN‑programmed replacement helps you choose the most efficient path forward.
