2011 Chevrolet HHR ECM Replacement: What Owners Should Know
The engine control module (ECM) in your 2011 Chevrolet HHR manages fuel delivery, ignition timing, and emissions systems. Failures may cause stalling, poor performance, or diagnostic trouble codes related to internal memory or processor errors.
Quick Summary
- The ECM controls critical engine functions in the 2011 HHR’s 2.2L engine.
- Replacement typically requires 0.9 hours of labor plus a 0.5-hour relearn procedure.
- Factory cautions warn against exposing the ECM’s metal case to battery voltage.
- Aftermarket electrical add-ons must connect directly to the battery to avoid damage.
- Flagship One units arrive pre-programmed to your VIN, eliminating additional setup steps.
If your 2011 Chevrolet HHR is experiencing unexplained stalling, a no-start condition, or persistent check-engine lights, the engine control module (ECM) may be the culprit. This small but critical computer oversees everything from fuel injection to spark timing, and when it fails, your vehicle’s performance can suffer dramatically. Replacing it isn’t just about swapping a part—it involves careful handling to avoid voltage damage, proper programming to match your vehicle’s specifications, and a relearn procedure to ensure everything runs smoothly. Understanding the process helps you avoid common pitfalls, whether you’re tackling the job yourself or working with a shop. You’ll also learn how to recognize early warning signs, prevent unnecessary damage, and decide between repair and replacement options tailored to your HHR’s needs.
What the PCM Does in a 2011 Chevrolet HHR
The engine control module in your 2011 Chevrolet HHR acts as the brain of the engine, continuously monitoring sensors and adjusting fuel, air, and spark to keep the 2.2L engine running efficiently. It ensures optimal performance while meeting emissions standards, and a failure can disrupt everything from idle quality to throttle response. Unlike generic engine computers, the HHR’s ECM is calibrated specifically for its powertrain, meaning a direct replacement must match the vehicle’s exact specifications. When issues arise, they often stem from internal memory corruption, voltage spikes, or connector problems, leading to symptoms like rough running or a complete no-start. If replacement becomes necessary, you’ll need replacement engine control modules for the HHR that are pre-programmed to avoid additional setup steps. Without proper calibration, even a new module won’t communicate correctly with the vehicle’s systems, so choosing the right unit is critical for restoring reliable operation.
Where the PCM Is Located and What Replacement Involves
The ECM in your 2011 Chevrolet HHR is located near the engine bay, typically mounted on the firewall or inner fender for protection from heat and moisture. Accessing it requires removing the plastic engine cover and possibly some wiring harness clips, though the exact steps may vary slightly depending on your vehicle’s configuration. Replacement involves disconnecting the battery, unplugging the electrical connector, and removing the mounting bolts to free the module. Labor time for removal and reinstallation is typically 0.9 hours, according to factory estimates. After installing the new unit, a 0.5-hour relearn procedure is required to synchronize the ECM with the vehicle’s sensors and systems. This step ensures proper fuel trim, idle control, and emissions compliance, so skipping it may result in poor drivability or persistent warning lights.

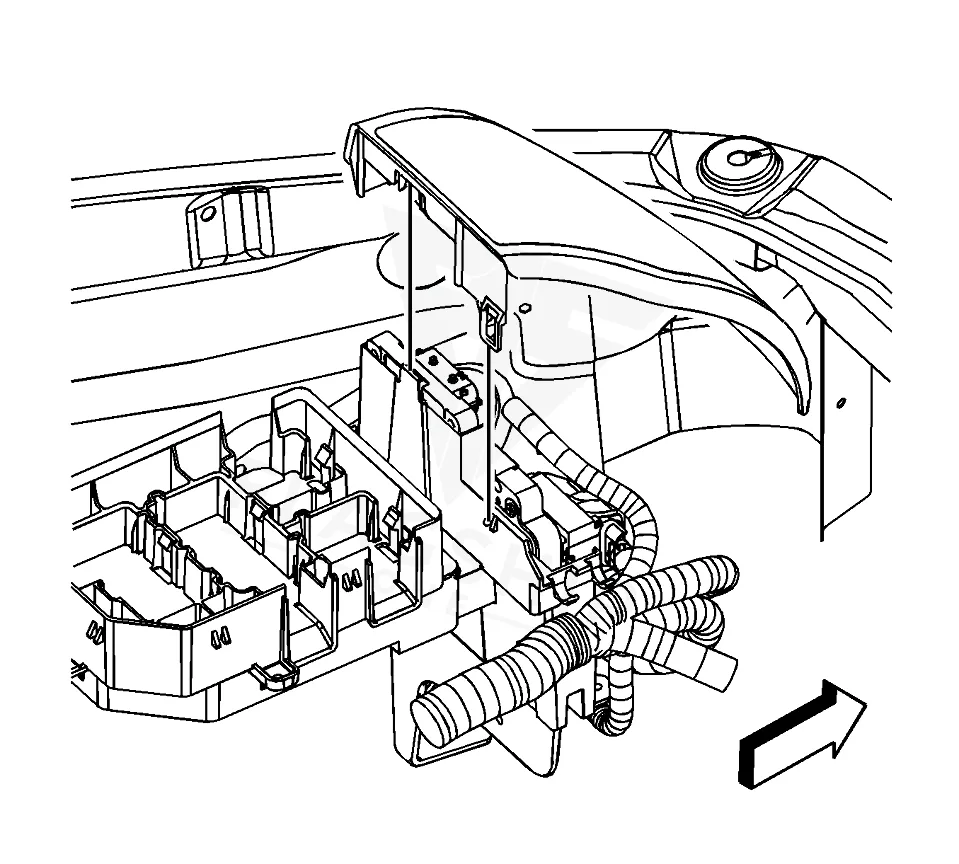

How to Reach the PCM on the 2011 Chevrolet HHR
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the ECM/TCM cover.
- Disconnect the ECM electrical connectors.
- Release the retaining tab in order to release the ECM from the underhood junction.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the ECM in your 2011 Chevrolet HHR, the factory procedure requires capturing the original module’s data using a scan tool before removal. This data helps ensure the new unit is programmed with the correct calibration for your vehicle’s specific configuration. Specialized equipment and software are necessary for this process, as the ECM must be reprogrammed to match the VIN and other critical parameters. However, if you install a VIN-programmed replacement unit, these steps are already completed, saving you time and reducing the risk of programming errors. Without proper programming, the ECM may fail to communicate with the vehicle’s sensors, leading to issues like poor fuel economy, rough idle, or even a no-start condition. Flagship One units arrive ready to install, eliminating the need for additional setup beyond the standard relearn procedure.
Symptoms of a Failing PCM
When the ECM in your 2011 Chevrolet HHR begins to fail, you may notice a range of symptoms that can vary from subtle to severe. Common signs include intermittent stalling, especially at idle or during deceleration, as the module struggles to maintain proper fuel and spark delivery. A no-start condition may also occur if the ECM fails to send the correct signals to the fuel pump or ignition system. Rough running or misfires can develop if the module’s internal memory becomes corrupted, leading to erratic sensor readings or fuel trim adjustments. In some cases, the check-engine light will illuminate, often accompanied by trouble codes related to the ECM’s internal functions. For example, a memory controller fault may appear if the module’s self-check detects an error in its programming. Other codes like P0603 or P0606 could indicate processor issues or communication failures with the vehicle’s sensors. If your scan tool fails to communicate with the ECM at all, the module itself may be completely unresponsive, requiring replacement. Shifting issues are less common in the HHR but can occur if the ECM fails to relay data to the transmission control module, leading to delayed or harsh gear changes.
Module Trouble Codes on the 2011 Chevrolet HHR
The 2011 Chevrolet HHR’s ECM is associated with several internal trouble codes that indicate potential failures within the module itself. These codes often point to issues with memory, processor function, or communication errors, and they typically require module replacement rather than sensor or wiring repairs.
Factory Service Bulletins Worth Knowing
Factory service bulletin #PIC5356A addresses an issue where the air conditioning compressor in the 2011 Chevrolet HHR fails to engage, despite no diagnostic trouble codes being present. The bulletin notes that the ECM may incorrectly read the AC pressure as 0 PSI, preventing the system from activating. This issue is specific to the ECM’s data interpretation and may require reprogramming or replacement to resolve. If your HHR’s AC system isn’t working and no other faults are found, this bulletin could explain the problem.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | AC Compressor Will Not Engage – AC Pressure In The ECM Data Reads 0 PSI – No DTCs – (Jun 22, 20 | — |
Protecting the PCM in Your 2011 Chevrolet HHR
- Always disconnect the battery before working on or near the ECM to avoid voltage spikes.
- Use a battery charger or maintainer when performing electrical work to prevent low-voltage conditions that could corrupt the module.
- Avoid jump-starting the vehicle with improper techniques, as voltage surges can damage the ECM’s internal components.
- Inspect the ECM’s electrical connector regularly for signs of corrosion or loose pins, which can disrupt communication.
- Address check-engine lights or trouble codes promptly to prevent minor issues from escalating into module failures.
- Keep the engine bay clean and dry to minimize moisture exposure, which can lead to connector or circuit board damage.
Frequently Asked Questions
Can I drive my 2011 Chevrolet HHR with a bad ECM?
Driving with a failing ECM may lead to stalling, poor performance, or a no-start condition. If the module is intermittently failing, you might experience unpredictable behavior, such as rough idling or misfires. In some cases, the vehicle may run but with reduced power or fuel efficiency. It’s best to address ECM issues promptly to avoid being stranded.
How do I know if my 2011 HHR’s ECM is bad or if it’s just a sensor issue?
Sensor issues typically trigger codes related to specific components, like the oxygen sensor or throttle position sensor. ECM failures, on the other hand, often produce internal module codes such as P0601 or P0606. If your scan tool can’t communicate with the ECM at all, the module itself may be the problem. A professional diagnostic can help confirm whether the issue lies with the ECM or another component.
What happens if I don’t perform the ECM relearn procedure on my 2011 HHR?
Skipping the relearn procedure may result in poor drivability, including rough idle, hesitation, or incorrect fuel trim. The ECM relies on this process to synchronize with the vehicle’s sensors and systems, so without it, the engine may not run efficiently. In some cases, the check-engine light may remain illuminated, and the vehicle may fail emissions tests.
Can a weak battery cause ECM problems in my 2011 Chevrolet HHR?
A weak or failing battery can lead to low-voltage conditions, which may corrupt the ECM’s memory or cause it to malfunction. Voltage spikes during jump-starting or charging can also damage the module. It’s important to maintain a healthy charging system and address battery issues promptly to protect the ECM and other electronic components.
Is it safe to replace the ECM in my 2011 HHR myself?
Replacing the ECM is a straightforward process, but it requires careful handling to avoid damaging the module or its connectors. You’ll need to disconnect the battery, remove the old unit, and install the new one, followed by a relearn procedure. If you’re not comfortable working with electrical components, it’s best to have a professional perform the replacement to ensure proper installation and programming.
If your 2011 Chevrolet HHR is showing signs of ECM failure, you have options for getting it back on the road. A repair may be possible if the issue is limited to a specific circuit or connector, but if the module itself is faulty, replacement is often the most reliable solution. Flagship One offers VIN-programmed replacement units designed specifically for your HHR, eliminating the need for additional programming steps. Whether you choose a new or refurbished module, ensuring it’s properly calibrated for your vehicle is key to restoring performance and reliability.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2011 Chevrolet HHR with a lifetime warranty, free shipping and no core charge. The full Chevrolet HHR module lineup covers other engine configurations as well.
Final Thoughts
The ECM in your 2011 Chevrolet HHR plays a vital role in keeping your engine running smoothly, and when it fails, the symptoms can range from frustrating to downright disabling. Recognizing the warning signs early, understanding the replacement process, and taking steps to prevent damage can save you time and money. Whether you opt for a professional installation or tackle the job yourself, choosing the right replacement module ensures your HHR returns to its dependable self. With proper care, your vehicle’s ECM can provide years of trouble-free service.
