2002 Chevrolet C/K 8.1L PCM Replacement Guide
The Powertrain Control Module in the 2002 Chevrolet C/K 8.1L manages engine and transmission functions. When it fails, it can trigger errors like P0601, cause misfires, or prevent the truck from starting.
Quick Summary
- Replacing the PCM takes 1.4 hours for light duty, 0.8 hours for gasoline, and 1.4 hours for diesel.
- Relearn procedures last 0.5 hours regardless of duty rating.
- The ECU must be disconnected while the ignition is off to prevent damage.
- DTCs P0601 and P0602 indicate an unprogrammed or faulty EEPROM.
- Replacement units arrive VIN‑programmed, eliminating post‑install programming.
If your 2002 Chevrolet C/K 8.1L has been throwing trouble codes or is experiencing stalling and misfires, it might be time to consider a Powertrain Control Module replacement. This guide walks you through the process, from locating the module to understanding the factory cautions and what to expect after the swap. By the end of the article you’ll know the book times, how to keep the vehicle safe during disconnection, and why a VIN‑programmed unit from Flagship One can save you time and headaches. Whether you’re a seasoned mechanic or a knowledgeable vehicle owner, the information here is tailored to help you make an informed decision.
What the PCM Does in a 2002 Chevrolet C/K Series
The Powertrain Control Module in the 2002 Chevrolet C/K 8.1L is the central brain that orchestrates engine timing, fuel delivery, and transmission shifts. It interprets sensor data and sends commands to actuators, ensuring the truck runs smoothly. When the PCM malfunctions, the engine may misfire, stall, or fail to start, and diagnostic trouble codes such as P0601 will appear. The module also safeguards the vehicle’s electrical system; improper handling can lead to further damage. replacement powertrain control module for the 2002 Chevrolet C/K 8.1L The PCM’s role is critical because it balances performance and emissions while monitoring safety systems.
Where the PCM Is Located and What Replacement Involves
The Powertrain Control Module sits behind the instrument cluster in the passenger compartment. Access requires removing the dash trim and a small panel. After removal, the module is disconnected from the battery by first turning off the ignition and then detaching the battery cable, the ECM pigtail, and the fuse. Installation involves re‑attaching the connectors in the same orientation and ensuring the battery is reconnected. The book time for a light duty replacement is 1.4 hours, for gasoline 0.8 hours, and for diesel 1.4 hours. Relearn procedures, which recalibrate the module to the vehicle’s specific parameters, take 0.5 hours for all duty ratings.

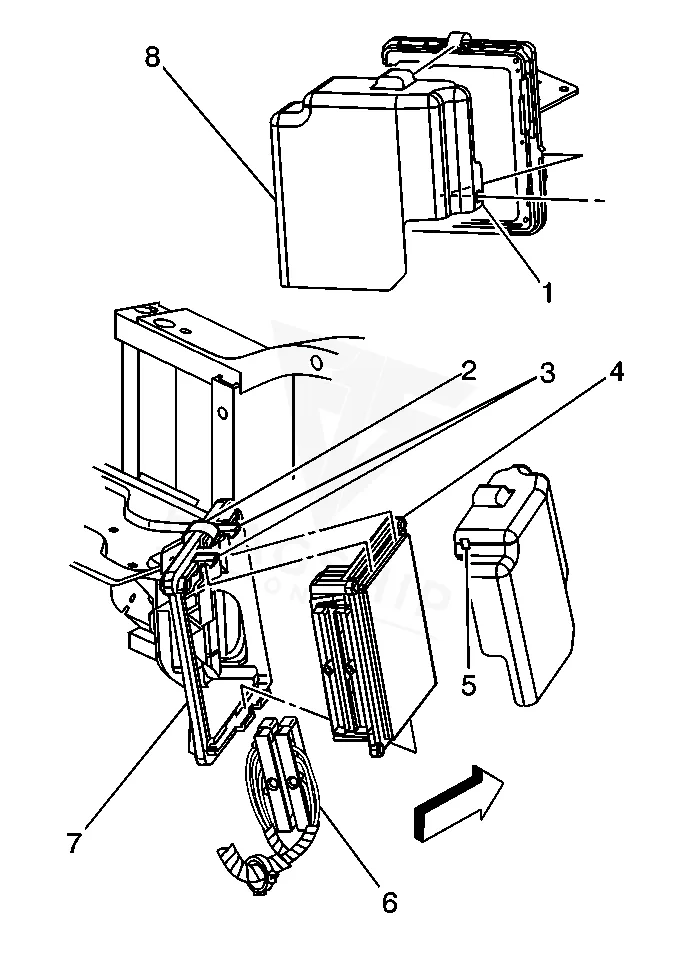

How to Reach the PCM on the 2002 Chevrolet C/K Series
- Remove any debris from the ECM connector surfaces before.
- Disconnect the negative battery cable from the battery and.
- Release the ECM cover mounting holes (1,5) away.
- Release the ECM cover from the mounting.
- Remove the ECM cover.
- Disconnect the ECM harness connectors.
- Release the spring latch from the ECM.
- Release the ECM mounting tabs from the.
- Remove the ECM from the engine.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Light Duty | 1.4 hr |
| Powertrain Control Module R&R | GAS | 0.8 hr |
| Powertrain Control Module R&R | DIESEL | 1.4 hr |
| Powertrain Control Module Relearn | Light Duty | 0.5 hr |
| Powertrain Control Module Relearn | Medium/Heavy Truck | 0.5 hr |
| Engine Control Module R&R | Light Duty | 1.4 hr |
| Engine Control Module R&R | GAS | 1.1 hr |
| Engine Control Module R&R | DIESEL | 1.4 hr |
Programming Requirements After Replacement
After the module is installed, the factory requires a programming sequence to set the vehicle’s unique parameters. However, Flagship One units arrive already VIN‑programmed, so the usual post‑install programming steps are unnecessary. This eliminates the need to run a diagnostic scan and upload settings manually. VIN‑programmed replacement unit The installer can simply connect the module, perform the relearn, and the truck will operate with the correct settings immediately.
Symptoms of a Failing PCM
When the PCM in a 2002 Chevrolet C/K 8.1L is failing, you might notice the engine sputtering, stalling under load, or a sudden loss of power. The vehicle may also refuse to start, and a diagnostic scan will show codes such as P0601, indicating an unprogrammed EEPROM. EEPROM not programmed Additionally, you may experience erratic shifting or a check‑engine light that won’t turn off after a reset. These symptoms often point to a module that needs replacement or a relearn procedure.
Module Trouble Codes on the 2002 Chevrolet C/K Series
The codes below point to the PCM itself rather than to a sensor or circuit it monitors. Each one links through to its full diagnostic guide.
Protecting the PCM in Your 2002 Chevrolet C/K Series
- Keep the battery’s charging system in good condition to avoid voltage spikes.
- Ensure all connectors and grounds are clean and free of corrosion.
- Avoid jump‑starting the truck with a damaged battery or wiring.
- Address any DTCs promptly before they lead to larger failures.
- Maintain the integrity of connector seals to prevent moisture ingress.
- Use a proper disconnect procedure when working with the battery.
Frequently Asked Questions
What should I look for if my 2002 Chevrolet C/K 8.1L won’t start?
Check for DTCs like P0601 or P0602, which indicate EEPROM issues. Also confirm the battery is charged and the PCM is properly connected.
Is a relearn procedure necessary after a PCM replacement?
Yes, a 0.5‑hour relearn recalibrates the new module to your truck’s specific parameters, ensuring optimal performance.
Can I use a generic PCM for my 2002 Chevrolet C/K 8.1L?
It’s best to use a unit specifically designed for the 2002 Chevrolet C/K 8.1L to avoid compatibility and programming issues.
How long does the replacement process take?
Book times show 1.4 hours for light duty and diesel, 0.8 hours for gasoline, plus an additional 0.5 hours for relearn.
What safety precautions should I follow?
Always turn off the ignition before disconnecting the battery or any ECM wiring to prevent electrical damage.
Whether you choose to repair the existing PCM or opt for a refurbished replacement, the 2002 Chevrolet C/K 8.1L can regain reliable operation. A professional installation ensures the module is correctly seated, relearned, and fully integrated with the truck’s systems.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Chevrolet C/K Series with a lifetime warranty, free shipping and no core charge. The full Chevrolet C/K Series module lineup covers other engine configurations as well.
Final Thoughts
For the 2002 Chevrolet C/K 8.1L, a properly installed and programmed Powertrain Control Module restores powertrain stability and reduces the risk of further electrical problems. Consider the options carefully and take advantage of a VIN‑programmed unit for a smoother repair.
