2009 Chevrolet HHR Powertrain and Engine Control Module Overview
The Powertrain Control Module and Engine Control Module in the 2009 Chevrolet HHR manage engine timing, fuel delivery, and transmission coordination. Failure of these electronic units may cause loss of power, stalling, or communication errors with diagnostic tools.
Quick Summary
- Repairing the PCM or ECM typically requires about 0.9 hours of labor each.
- ECM relearn after replacement usually adds 0.5 hours of work.
- Improper contact with battery voltage can damage the module case.
When a 2009 Chevrolet HHR experiences intermittent check engine warnings or reduced engine power, the electronic control modules are a common focus. This guide explains what the Powertrain Control Module and Engine Control Module do in this vehicle, the labor involved in replacing them, and the programming steps needed to get your HHR back on the road. By the end, you will understand the key precautions, typical symptoms, and what to expect from a professional repair or a refurbished replacement.
What the PCM Does in a 2009 Chevrolet HHR
In the 2009 Chevrolet HHR, the Powertrain Control Module governs transmission shift logic while the Engine Control Module controls ignition timing, fuel injection, and emissions. Together they ensure the engine runs smoothly and the drivetrain shifts correctly. Damage to either unit can trigger a range of fault codes and performance loss. The modules are essential for meeting emissions standards and delivering expected power. replacement engine control modules for the 2009 Chevrolet HHR are commonly sourced when original units fail.
Where the PCM Is Located and What Replacement Involves
The Powertrain Control Module and Engine Control Module are located within the engine compartment and are accessed by removing surrounding components. Removing each module typically requires 0.9 hours of labor according to the factory book time. After removal, the ECM also needs a relearn procedure that adds 0.5 hours. No torque specifications are provided, so follow standard connector handling practices while swapping the units.

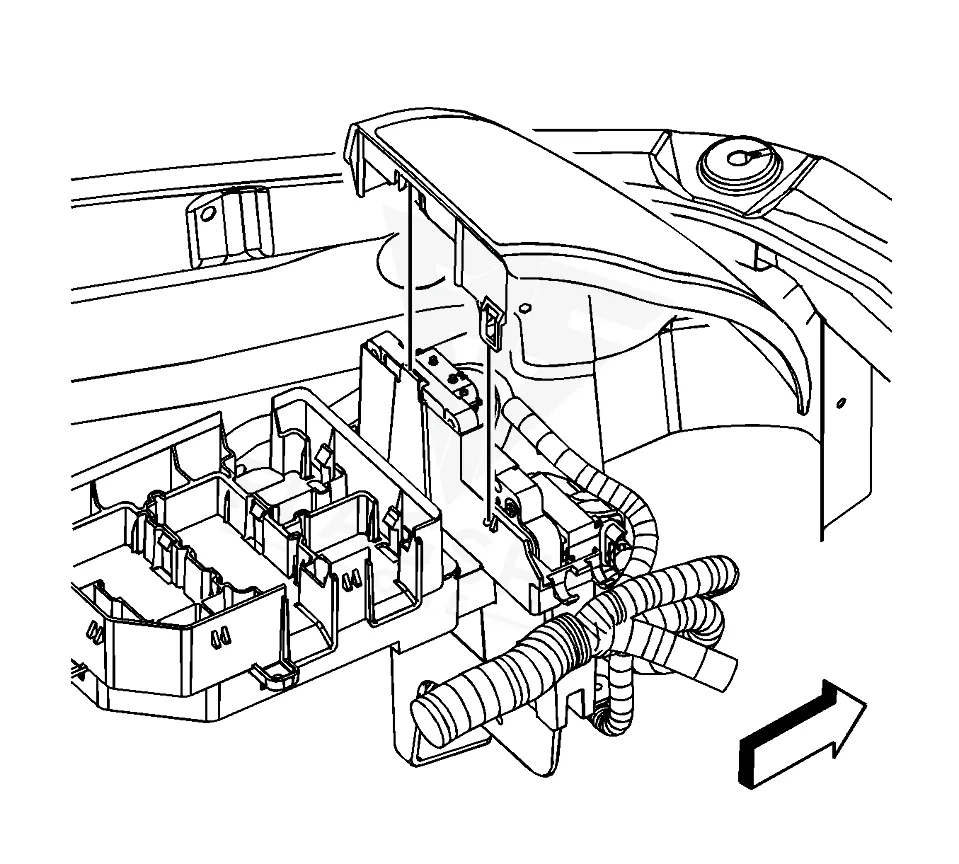

How to Reach the PCM on the 2009 Chevrolet HHR
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the ECM/TCM cover.
- Disconnect the ECM electrical connectors.
- Release the retaining tab in order to release the ECM from the underhood junction.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure calls for capturing the original ECM data with a scan tool before removal and then using specialized equipment with the correct program and calibration to reprogram the unit. Flagship One supplies a VIN-programmed replacement unit that already contains the required software, so those steps are completed before the part reaches the shop.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in the 2009 Chevrolet HHR include a persistent check engine light, reduced engine power, rough idle, or a loss of communication with diagnostic equipment. You may also encounter stalling or unexpected transmission shifts. One of the documented fault codes, Powertrain control module processor failure, often appears when the module cannot process data correctly.
Module Trouble Codes on the 2009 Chevrolet HHR
The following internal trouble codes have been recorded for the 2009 Chevrolet HHR’s control modules:
Factory Service Bulletins Worth Knowing
Service bulletin #08-06-04-022 and its revision #08-06-04-022B note that some owners report an intermittent check engine light and a reduced power message. The bulletin advises inspecting the engine wiring harness for chafing and, if needed, re‑crimping the ECM terminals to resolve DTC P2135 occurrences.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-06-04-022 | Intermittent Check Engine Light On, Engine Power Reduced Message Displayed in DIC, DTC P2135 Se | Some customers may comment that the check engine light is on and an engine reduced power message is displayed in the DIC. A scan tool may reveal DTC P2135 set… |
Protecting the PCM in Your 2009 Chevrolet HHR
- Maintain a healthy charging system to avoid voltage spikes.
- Ensure all ground connections are clean and secure.
- Avoid using jump‑start cables that may contact the module case.
- Address any stored trouble codes promptly.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What causes a no‑start condition in a 2009 Chevrolet HHR related to the ECM?
A no‑start can result from a failed Engine Control Module that cannot send ignition timing or fuel injection commands. Checking for related fault codes and verifying power to the module are typical first steps.
How long should a PCM replacement take on a 2009 Chevrolet HHR?
The factory book time lists about 0.9 hours of labor for removing and installing the Powertrain Control Module, not including any additional diagnostics.
Is a special scan tool required to reprogram the ECM on this vehicle?
Yes, the factory procedure requires a scan tool to capture ECM data before removal and specialized programming equipment to load the correct calibration after installation.
When the control modules in a 2009 Chevrolet HHR need attention, you can choose a direct repair using a new OEM part or opt for a refurbished replacement that meets factory specifications. Both approaches address the same labor requirements and programming steps, allowing you to select the solution that best fits your budget and timeline.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Chevrolet HHR with a lifetime warranty, free shipping and no core charge. The full Chevrolet HHR module lineup covers other engine configurations as well.
Final Thoughts
Understanding the role of the Powertrain and Engine Control Modules in your 2009 Chevrolet HHR helps you evaluate repair options and avoid common pitfalls. Whether you pursue a repair or a refurbished unit, proper installation and programming are essential for reliable performance.
