2005 Saturn Ion Engine and Powertrain Control Module Replacement
In the 2005 Saturn Ion, the engine control module and powertrain control module manage fuel delivery, ignition timing and transmission shift logic. Failure of either unit may cause no‑start conditions, rough idle, or loss of driveability, often accompanied by diagnostic codes such as P0601.
Quick Summary
- Both ECM and PCM require about half an hour of labor each for removal and installation.
- Capture ECM data with a scan tool before removal to avoid loss of calibrated settings.
- Flagship One replacements arrive VIN‑programmed, eliminating post‑install relearn steps.
- Avoid contact between the metal case and battery voltage to prevent module damage.
When a 2005 Saturn Ion begins to exhibit intermittent starting problems, loss of power, or persistent diagnostic codes, the engine and powertrain control modules are common culprits. This guide explains what these modules do, how they are accessed, and what steps are needed to replace them safely. By following the outlined procedures, you can ensure your vehicle returns to reliable operation with minimal downtime.
What the PCM Does in a 2005 Saturn ION
The engine control module in the 2005 Saturn Ion monitors sensor inputs and controls fuel injection, ignition timing and emissions functions, while the powertrain control module coordinates transmission shift points and overall driveline performance. Together they keep the vehicle running smoothly and meet emissions standards. Understanding their role helps you see why a fault can lead to a no‑start or rough running condition. For a proper swap, consider replacement engine modules for the 2005 Saturn Ion that match the original specifications.
Where the PCM Is Located and What Replacement Involves
The ECM and PCM are mounted within the engine compartment, accessible after disconnecting the battery and removing the associated wiring harnesses. Removal and installation each take roughly 0.5 hours according to the labor guide. The process involves securing the new module with the same fasteners used on the original unit, then reconnecting the harnesses and re‑installing any protective covers.

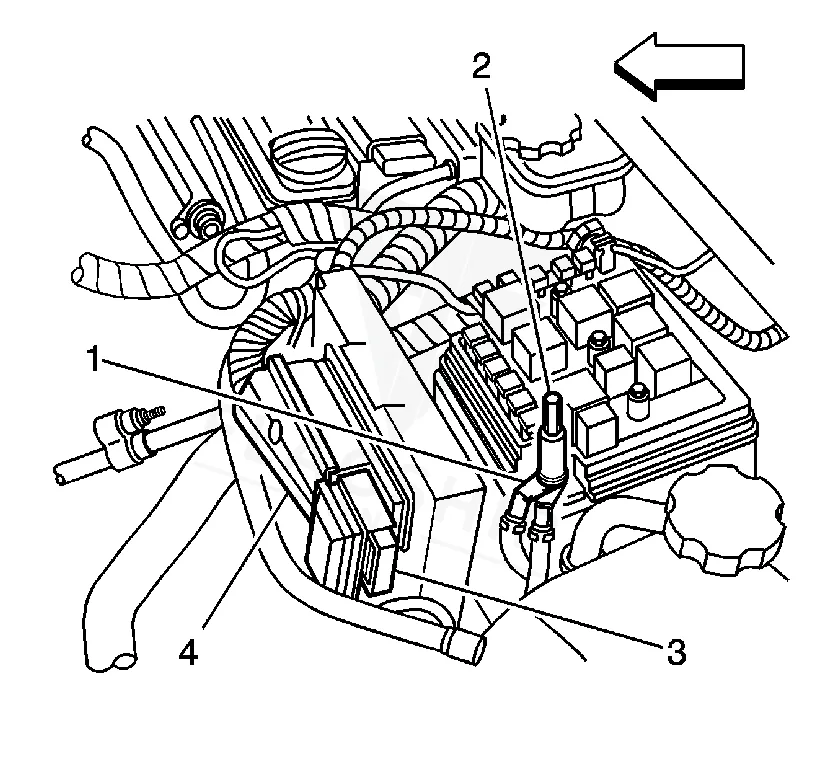

How to Reach the PCM on the 2005 Saturn ION
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the 3 powertrain control module (PCM).
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Factory service requires capturing the existing ECM data with a scan tool before removal, then restoring that data into the new unit and performing a relearn of engine oil life. Flagship One units arrive pre‑loaded, so the a VIN-programmed replacement unit eliminates the need for those post‑install steps.
Symptoms of a Failing PCM
Typical signs of a failing module in a 2005 Saturn Ion include a no‑crank condition, unexpected stalling, misfire codes and loss of communication with the scan tool. Owners may also notice the vehicle will not start after several days of inactivity. One of the diagnostic codes often seen is communication fault, indicating a problem with module data exchange.
Module Trouble Codes on the 2005 Saturn ION
The following internal trouble codes are commonly reported for the engine and powertrain control modules in this vehicle:
Factory Service Bulletins Worth Knowing
Service Bulletin #05538B addresses an original ECM calibration that can cause various symptoms and recommends a software upgrade. Bulletin #05-06-04-036A covers no‑crank and battery discharge issues after five days of inactivity, suggesting a reprogram of the ECM. Bulletin #05-06-04-060 documents shared DTCs such as P0601‑P0604 across multiple control modules.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Inventory Upgrade – Engine Control Module (ECM) Software Upgrade (Reprogram ECM) – (Jun 2, 2005 | The original equipment ECM calibration may cause the vehicle to exhibit any one of a number of |
| 05-06-04-036 | Engine No Crank, No Start, Battery Discharged After Vehicle Has Not Been Used For Approximately | Some customers may comment that their vehicle will not start due to a discharged battery after the vehicle has not been used for approximately 5 |
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
Protecting the PCM in Your 2005 Saturn ION
- Maintain a healthy charging system to avoid voltage spikes.
- Inspect and clean ground connections and module connectors regularly.
- Use proper jump‑start procedures to prevent excess voltage reaching the metal case.
- Address any diagnostic codes promptly before they worsen.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What should I do if my 2005 Saturn Ion shows a P0601 code?
Capture the ECM data with a scan tool, replace the module if necessary, and restore the data. Using a VIN‑programmed replacement can simplify the process.
Is it necessary to reset engine oil life after installing a new ECM?
Yes, the factory procedure requires recording the remaining oil life; otherwise the system defaults to 100 percent, which can affect maintenance intervals.
Can I use a refurbished ECM in my 2005 Saturn Ion?
A refurbished unit may work, but it must be programmed with the vehicle’s VIN and calibrated oil life data to meet factory specifications.
When the control modules in your 2005 Saturn Ion need attention, you can choose a direct repair with a new factory‑programmed unit or consider a refurbished replacement that meets the same specifications. Both options aim to restore reliable engine and transmission performance while respecting the vehicle’s original calibration requirements.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Saturn ION with a lifetime warranty, free shipping and no core charge. The full Saturn ION module lineup covers other engine configurations as well.
Final Thoughts
Replacing the ECM or PCM in a 2005 Saturn Ion can resolve no‑start and performance issues when performed correctly. Evaluate your repair versus refurbished options and ensure the chosen unit follows the factory programming steps for a smooth return to service.
