2003 Saturn ION Engine Control Module: Replacement, Symptoms & Programming
The Engine Control Module (ECM) in the 2003 Saturn ION manages fuel delivery, ignition timing, and emissions systems. Failures may cause stalling, rough idling, or no-start conditions, often linked to internal faults or calibration errors.
Quick Summary
- The ECM controls critical engine functions in the 2003 Saturn ION.
- Replacement typically requires 0.5 hours for removal and installation.
- A relearn procedure of 0.5 hours may be needed after installation.
- Factory cautions include avoiding electrostatic discharge and battery voltage contact.
- Stored oil life must be reprogrammed to prevent defaulting to 100%.
If your 2003 Saturn ION is experiencing unpredictable engine behavior—like stalling, erratic idle, or a crank-but-no-start condition—the Engine Control Module (ECM) may be the culprit. This small but critical computer oversees fuel injection, ignition timing, and emissions systems. When it fails, symptoms can range from subtle drivability issues to complete engine shutdown. Replacing the ECM involves careful handling to avoid damage, and proper programming ensures your vehicle retains settings like oil life. Understanding the process helps you avoid unnecessary delays and ensures a smooth repair.
What the PCM Does in a 2003 Saturn ION
The Engine Control Module in your 2003 Saturn ION acts as the brain of the engine, processing data from sensors to optimize performance and efficiency. It regulates fuel delivery, ignition timing, and emissions controls, directly impacting how the engine runs. A faulty ECM may disrupt these functions, leading to poor drivability or even a no-start condition. When replacement becomes necessary, choosing replacement engine computers for the Saturn ION ensures compatibility and proper calibration for your vehicle’s specific needs.

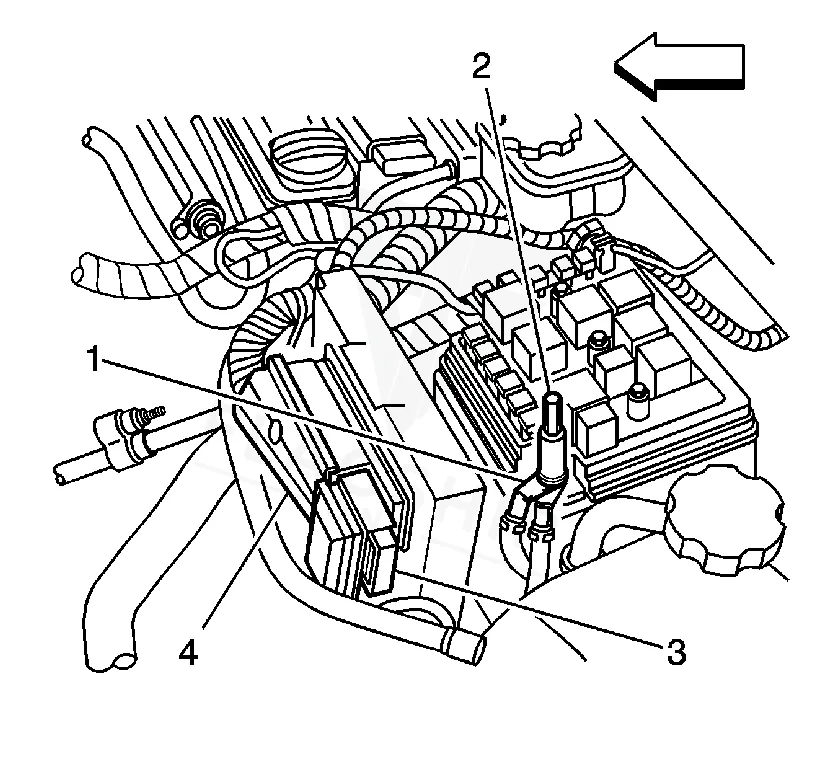

Where the PCM Is Located and What Replacement Involves
The ECM in the 2003 Saturn ION is typically located near the engine bay, though exact placement may vary. Replacement involves disconnecting the battery, removing electrical connectors, and carefully extracting the module to avoid damage. Labor time for removal and reinstallation is usually 0.5 hours. After installation, the ignition must remain off when connecting or disconnecting ECM connectors to prevent component damage. Always handle the module by its edges to avoid electrostatic discharge, which can harm internal circuitry.
How to Reach the PCM on the 2003 Saturn ION
- Disconnect the negative battery cable.
- Disconnect the small ECM harness connector.
- Remove the bolt retaining the large ECM connector to the.
- Disconnect the large ECM harness connector.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM in your 2003 Saturn ION, the factory requires a relearn procedure, which typically takes 0.5 hours. This step ensures the module synchronizes with the engine’s sensors and retains critical data like oil life. However, a VIN-programmed replacement unit arrives pre-configured, eliminating the need for manual programming. This saves time and reduces the risk of errors, such as the oil life defaulting to 100% if not properly updated.
Symptoms of a Failing PCM
A failing ECM in the 2003 Saturn ION may cause a range of symptoms, including stalling, rough idle, or a no-start condition. You might also notice erratic engine speed, particularly at closed throttle, or warning lights on the dashboard. In some cases, the vehicle may enter a fail-safe mode, limiting performance. Diagnostic trouble codes like internal control module memory checksum error often appear when the ECM’s memory or processing functions are compromised. If your scan tool fails to communicate with the module, that’s another sign of potential failure.
Module Trouble Codes on the 2003 Saturn ION
The 2003 Saturn ION may log specific trouble codes when the ECM experiences internal faults. These codes help pinpoint issues like memory corruption, calibration errors, or communication failures, guiding diagnostics and repairs.
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 2003 Saturn ION address ECM-related concerns. Bulletin #04-06-04-029 and its update #04-06-04-029A focus on erratic engine speed control, elevated RPM, crank/no-start conditions, or stalling, recommending calibration verification and reprogramming if needed. Another bulletin, #03-06-03-005 and its update #03-06-03-005A, details changes to the ground locations for the ECM, Transmission Control Module, and ignition module, which may affect electrical stability.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-06-04-029 | Erratic Engine Speed Control at Closed Throttle – Elevated Engine RPM, Crank/No Start and/or St | — |
| 03-06-03-005 | Info – Engine Control Module (ECM)/Transmission Control Module (TCM)/Ignition Module Ground Loc | — |
Protecting the PCM in Your 2003 Saturn ION
- Keep the battery and charging system in good condition to avoid voltage spikes.
- Avoid touching ECM connector pins or circuit board components to prevent electrostatic damage.
- Ensure all electrical connectors are clean, dry, and securely fastened.
- Address diagnostic trouble codes promptly to prevent further module stress.
- Use caution when jump-starting to avoid exposing the ECM to excessive voltage.
- Inspect and maintain ground connections to ensure proper electrical flow.
Frequently Asked Questions
Can I replace the ECM in my 2003 Saturn ION myself?
Replacing the ECM is technically possible if you’re comfortable with basic automotive electrical work. However, handling the module requires care to avoid electrostatic damage, and proper programming is essential to retain settings like oil life. If you’re unsure, professional installation is recommended.
Why does my 2003 Saturn ION stall after ECM replacement?
Stalling after ECM replacement may occur if the module isn’t properly programmed or if there’s an issue with sensor synchronization. A relearn procedure is often required to ensure the ECM communicates correctly with the engine’s systems. Using a pre-programmed unit can help avoid this issue.
How do I know if my 2003 Saturn ION’s ECM is failing?
Common signs include stalling, rough idle, a no-start condition, or erratic engine speed. Diagnostic trouble codes like P0601 or P0603 may also appear. If your scan tool can’t communicate with the ECM, that’s another indication of potential failure.
If your 2003 Saturn ION’s ECM has failed, you have options for replacement. A new or refurbished module can restore proper engine function, but programming is critical to avoid issues like oil life resets. Choosing a VIN-programmed unit simplifies the process, ensuring your vehicle retains its settings without additional steps.

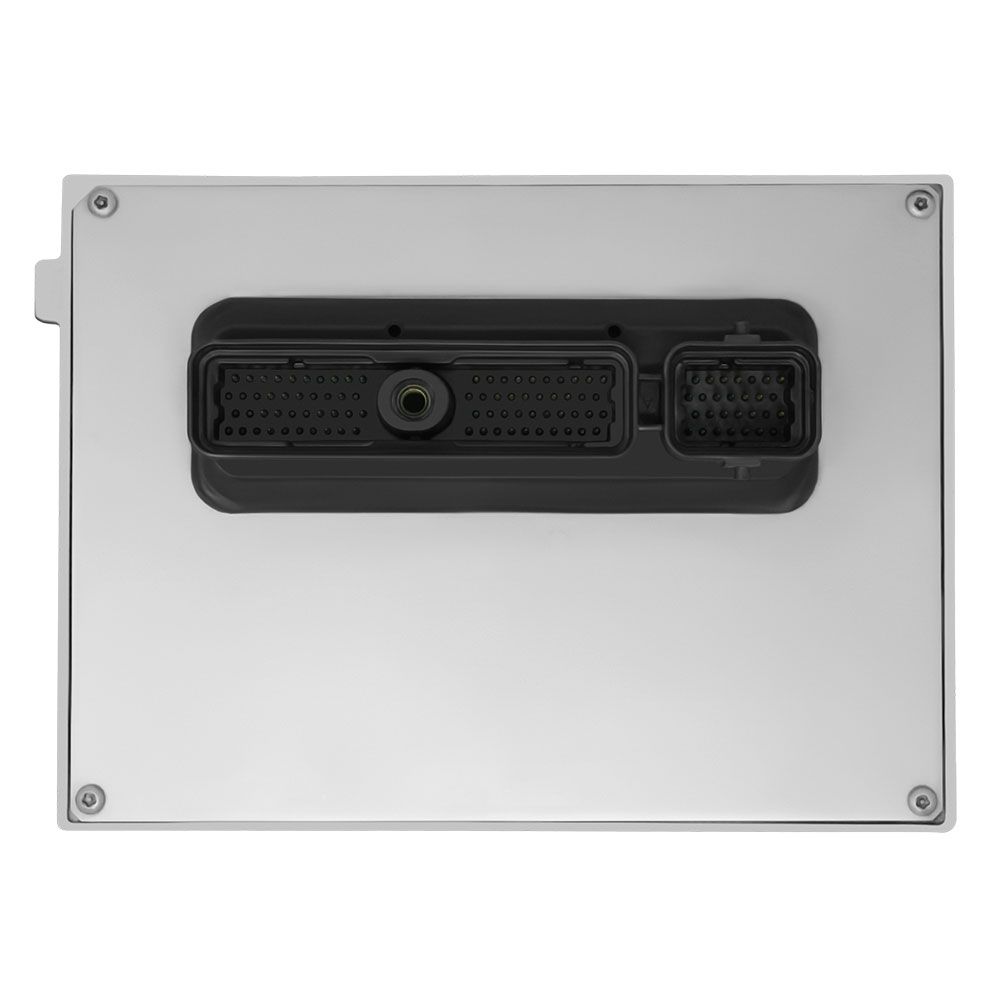

Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Saturn ION with a lifetime warranty, free shipping and no core charge. The full Saturn ION module lineup covers other engine configurations as well.
Final Thoughts
The ECM in your 2003 Saturn ION plays a vital role in engine performance, and addressing issues promptly can prevent further complications. Whether you opt for professional installation or a DIY approach, understanding the process helps ensure a successful repair. Consider a pre-programmed replacement to streamline the job and get your vehicle back on the road.
