2004 Saturn ION PCM Replacement & ECM Reprogramming Guide

When your 2004 Saturn ION sets module-internal trouble codes, the root cause often points to the powertrain control module itself. These codes, ranging from P0601 through P1683, indicate various forms of internal failure within the computer that manages your engine and transmission. Rather than chasing downstream sensors, understanding the role of the PCM and ECM on your Saturn ION may help you identify when replacement is the appropriate solution. This guide explains how the module functions within your vehicle, what symptoms typically accompany internal failures, the steps the factory specifies for service, and what options exist if replacement becomes necessary. You’ll gain a practical understanding of the repair process without unnecessary technical complexity or marketing language.

What the PCM Does in a 2004 Saturn ION

The engine control module in your 2004 Saturn ION serves as the central nervous system for the 2.0L powertrain. It continuously monitors sensors throughout the engine bay and adjusts fuel delivery, ignition timing, and emission controls to maintain efficient operation. The PCM receives data from the mass air flow sensor, oxygen sensors, throttle position sensor, and numerous other inputs to calculate the appropriate air-fuel mixture and spark advance for every driving condition.

When this module develops internal faults, the results may range from subtle driveability concerns to complete failure to start. The module’s internal memory stores calibration data specific to your Saturn ION’s powertrain. If that memory becomes corrupted or the processor fails self-diagnostics, your vehicle may exhibit unpredictable behavior that resists conventional repair attempts. Understanding this helps explain why simply replacing sensors sometimes fails to resolve persistent trouble codes on the Saturn ION. Replacement engine computers for the Saturn ION must be matched to your vehicle’s exact specifications and programmed with the correct vehicle identification number to function properly.

Flagship One keeps Saturn ION replacement engine computers in stock for exactly this failure pattern.

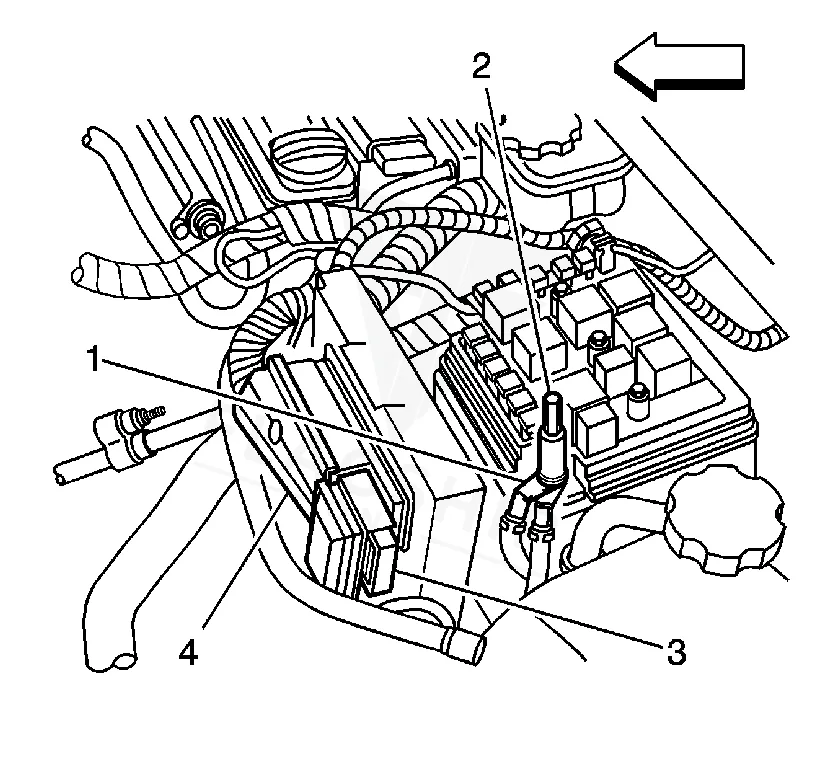

Where the PCM Is Located and What Replacement Involves

The PCM on your 2004 Saturn ION is typically mounted in the engine compartment, though exact location may vary based on production specifications. The factory lists 0.5 hours for ECM replacement labor, covering the removal of the old unit and installation of the new module. This time does not include any additional diagnostic work that may be necessary to confirm the module as the root cause of your concern.

During removal, the technician disconnects the negative battery terminal first and ensures the ignition is in the off position before unplugging the module connector. This prevents voltage from reaching the module’s internal circuits during service. The replacement procedure involves securing the new module, reconnecting all electrical connectors, and verifying proper installation. After installation, the module may require initialization before the vehicle operates normally. The factory also specifies a separate relearn procedure taking an additional 0.5 hours to ensure the new module adapts to your specific vehicle’s engine characteristics.

Programming Requirements After Replacement

After installing a replacement control module on your 2004 Saturn ION, the factory procedure requires performing a relearn process lasting 0.5 hours according to manufacturer time specifications. This procedure allows the new module to calibrate itself to your specific engine and transmission. Additionally, the factory cautions that the remaining engine oil life percentage must be recorded before replacement, as a new module without this data will default the oil life monitor to 100%.

These programming and initialization steps are a normal part of the factory service procedure. Flagship One addresses this by shipping you a VIN-programmed replacement unit, meaning the vehicle identification number and calibration data are already configured before the module arrives. This eliminates the need for dealer-level programming equipment and allows the installation process to proceed more directly. However, the relearn procedure may still be recommended to ensure optimal adaptation between the new module and your Saturn ION’s powertrain.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Symptoms of a Failing PCM

When the internal control module in your 2004 Saturn ION begins to fail, several patterns commonly emerge. Your vehicle may refuse to start entirely, or it could start but run roughly with hesitation during acceleration. The check engine light frequently illuminates, and a scan tool may show multiple trouble codes that seem unrelated to any single sensor circuit. Module-internal failures often trigger codes like P0601: Internal Memory Error that point directly to the computer rather than peripheral components.

Some drivers experience intermittent stalling, elevated idle speeds, or unpredictable transmission shifting behavior when the module loses proper communication with engine sensors. In other cases, the check engine light may remain off while the vehicle exhibits subtle performance degradation that worsens over time. The module may also fail to communicate with diagnostic tools entirely, preventing technicians from retrieving stored codes. These symptoms often lead owners to replace multiple sensors before the underlying module fault is identified in your Saturn ION.

Module Trouble Codes on the 2004 Saturn ION

The following trouble codes are documented for the 2004 Saturn ION and are associated with internal module faults rather than external sensor failures. These codes indicate various forms of memory errors, processor faults, calibration issues, and communication problems within the control module itself. When these codes appear individually or in combination, they suggest the module may require replacement or reprogramming rather than conventional sensor-based repairs.

Factory Service Bulletins Worth Knowing

Several factory service bulletins apply to the 2004 Saturn ION powertrain control system. Bulletin 04026, issued May 4, 2004, addresses an OBD system software upgrade for improved purge flow diagnostics requiring ECM calibration updates. Bulletin 05514, from February 25, 2005, covers enhanced oxygen sensor response diagnostics through PCM reprogramming. Bulletin 04-06-04-029 and its revision 029A, released September 14, 2004, concern erratic engine speed control at closed throttle including elevated idle, crank no-start, and stalling conditions, recommending verification and reprogramming of the ECM as necessary. These bulletins indicate that software-related issues have been recognized as a known concern for the Saturn ION powertrain control system.

Protecting the PCM in Your 2004 Saturn ION

• Maintain proper charging system function by ensuring your battery and alternator are in good condition to avoid voltage irregularities that may stress the module.
• Keep electrical connectors clean and properly sealed to prevent moisture intrusion that could lead to corrosion or short circuits.
• Avoid jump-starting procedures that may deliver excessive voltage, and use proper booster cable connections following manufacturer guidelines.
• Handle the module carefully during any service work, avoiding contact with connector pins or circuit board components to prevent electrostatic discharge damage.
• Address diagnostic trouble codes promptly rather than allowing persistent faults to stress the module’s internal processing systems.
• When servicing your vehicle, ensure the ignition is off before disconnecting any electrical connections related to the control module.

Frequently Asked Questions

Can a bad PCM cause multiple trouble codes on a 2004 Saturn ION?

Yes, internal module failures on your Saturn ION commonly produce multiple unrelated trouble codes simultaneously. When the module’s internal memory or processor malfunctions, it may incorrectly report sensor faults or generate its own internal codes like those in the P0600 series. This pattern often misleads technicians into replacing sensors that are functioning normally.

Do I need to reprogram the ECM after replacing the PCM on my 2004 Saturn ION?

The factory specifies a relearn procedure taking 0.5 hours after replacement to allow the new module to adapt to your vehicle’s specific engine characteristics. Flagship One units arrive VIN-programmed with your vehicle’s identification number already configured, which may reduce or eliminate the need for dealer-level programming equipment during installation.

What causes the PCM to fail on a Saturn ION?

Module failures on the Saturn ION may result from voltage spikes, extreme temperatures, moisture intrusion through damaged connectors, electrostatic discharge during handling, or gradual degradation of internal components over time. The factory cautions against allowing battery voltage to contact the module’s metal case, which may cause immediate damage.

When your 2004 Saturn ION requires a new control module, you face a choice between a new OEM unit from the dealer or a quality refurbished replacement. Dealer units often carry significant cost and may still require programming. Reputable suppliers like Flagship One provide rebuilt modules matched to your vehicle’s specifications, with many units arriving pre-programmed to your VIN. This approach typically reduces overall repair cost while maintaining proper vehicle function. Consider the total repair expense including any required relearn procedures when evaluating your options for the Saturn ION.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Saturn ION with a lifetime warranty, free shipping and no core charge. The full Saturn ION module lineup covers other engine configurations as well.

Final Thoughts

The powertrain control module in your 2004 Saturn ION plays a critical role in engine and transmission operation. Recognizing the symptoms of internal module failure and understanding the factory service procedures helps you make informed decisions about repair options. Whether you pursue dealer service or a quality replacement unit, proper installation and initialization remain essential for restoring your vehicle’s performance. Flagship One offers replacement modules designed for the Saturn ION, helping you complete the repair with confidence.
