2004 Mercury Mountaineer PCM and ECM Service Guide
In the 2004 Mercury Mountaineer, the powertrain control module (PCM) and engine control module (ECM) manage fuel delivery, ignition timing, and emission controls. A failure typically triggers lean or rich fuel mixture codes and may cause stalling, rough idle, or loss of power.
Quick Summary
- Factory removal reaches the module behind the glove box.
- Labor times range from 0.3 to 0.6 hours per task.
- Relearn procedures include PCM and ECM specific steps.
- Flagship One units are VIN‑programmed, eliminating post‑install coding.
When the check engine light comes on in your 2004 Mercury Mountaineer, the underlying issue often involves the vehicle’s computer modules. Understanding how the PCM and ECM function, where they sit, and what steps are required after replacement can help you make an informed decision. This guide explains the modules, typical labor, required programming, and how Flagship One products fit into the repair process, giving you a clear path forward.
What the PCM Does in a 2004 Mercury Mountaineer
The powertrain control module in a 2004 Mercury Mountaineer acts as the central brain for both engine and transmission operations, interpreting sensor data to adjust fuel, spark and shift timing. It also monitors emission controls and stores diagnostic trouble codes. Proper operation is essential for smooth performance and compliance with emissions standards. The module works in concert with the engine control module, which focuses on ignition timing and fuel injection. Together they ensure the vehicle runs efficiently and reliably. replacement powertrain control modules for the 2004 Mercury Mountaineer are designed to meet the same specifications as the original equipment.

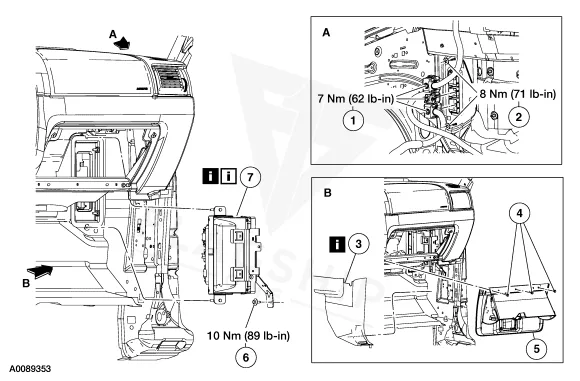

Where the PCM Is Located and What Replacement Involves
The PCM and ECM are positioned behind the glove box, accessed by removing the interior panel as described in the factory removal procedure. Replacement involves disconnecting the electrical connector, unbolting the module, and securing the new unit in the same location. Labor times listed for the 2004 Mercury Mountaineer include 0.6 hours for removal and replacement of the PCM, 0.5 hours for PCM relearn, 0.3 hours for ECM reset, 0.5 hours for ECM relearn, and another 0.6 hours for ECM removal and replacement. These steps typically require basic hand tools and careful handling of the connector to avoid damage.
How to Reach the PCM on the 2004 Mercury Mountaineer
- Disconnect the battery ground cable.
- Disconnect the powertrain control module (PCM) electrical connector (3).
- Remove the PCM bracket nut (2).
- Remove the A-pillar lower trim panel.
- Remove the glove box screws (3).
- Remove the glove box.
- Remove the PCM bracket bolt.
- Remove the PCM and mounting bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
Programming Requirements After Replacement
After installing a new module in a 2004 Mercury Mountaineer, the factory procedure calls for a PCM relearn of 0.5 hours and an ECM relearn of 0.5 hours to synchronize sensor data and calibrate the system. Flagship One units arrive pre‑configured, so the required steps are already completed. a VIN-programmed replacement unit eliminates the need for additional on‑site coding.
Symptoms of a Failing PCM
Common signs of a failing PCM or ECM in a 2004 Mercury Mountaineer include a illuminated malfunction indicator lamp, rough idle, stalling during acceleration, and a loss of power. Diagnostic trouble codes such as P0171, P0172, P0174, P0175, or a communication fault like P0601 communication fault may appear. You might also notice reduced fuel efficiency or erratic transmission shifts as the modules struggle to process sensor inputs.
Factory Service Bulletins Worth Knowing
Technical Service Bulletin 04-22-11 addresses MIL illumination on 4.0L SOHC engines with codes P0172, P0175, P0171, and P0174 for vehicles built before October 4, 2004. The bulletin outlines diagnostic steps and corrective actions specific to these conditions.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-22-11 | 4.0L SOHC ENGINE – MALFUNCTION INDICATOR LAMP (MIL) ILLUMINATED WITH DIAGNOSTIC TROUBLE CODES ( | — |
Protecting the PCM in Your 2004 Mercury Mountaineer
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean all ground connections and module connectors regularly.
- Avoid jump‑starting the vehicle unless necessary to prevent voltage spikes.
- Promptly address any diagnostic trouble codes that appear.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What causes the PCM to fail in a 2004 Mercury Mountaineer?
Typical causes include exposure to moisture, electrical surges, or prolonged overheating, which can degrade internal circuitry and lead to communication errors.
Do I need a special tool to reset the ECM on my Mountaineer?
The factory reset can be performed with a standard scan tool that supports ECM reset functions; no proprietary hardware is required.
Can a refurbished PCM be used instead of a new one?
A refurbished unit that meets OEM specifications can be a cost‑effective option, provided it is VIN‑programmed and passes functional testing.
When the PCM or ECM needs attention in your 2004 Mercury Mountaineer, you can choose a brand‑new OEM part or a Flagship One refurbished replacement. Both options require the same removal steps, but the Flagship One unit arrives pre‑programmed, saving you the relearn time. Evaluate your budget and warranty preferences to decide which route best fits your repair plan.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Mercury Mountaineer with a lifetime warranty, free shipping and no core charge. The full Mercury Mountaineer module lineup covers other engine configurations as well.
Final Thoughts
Addressing PCM or ECM issues in your 2004 Mercury Mountaineer promptly helps maintain performance and fuel economy. Whether you opt for a new OEM part or a Flagship One replacement, the correct procedure ensures reliable operation. Contact a qualified technician to discuss the best solution for your vehicle.
