2002 Mercury Villager ECM and PCM Replacement Guide Procedure
In the 2002 Mercury Villager, the engine control module (ECM) and powertrain control module (PCM) serve as the vehicle’s electronic brain, managing fuel delivery, ignition timing, and transmission shift strategies. A malfunction typically stems from internal circuitry failure, corrupt software, or loss of communication with diagnostic tools, leading to erratic engine behavior or loss of driveability.
Quick Summary
- Both ECM and PCM removal each require about 0.9 hours of labor.
- A PCM relearn step adds roughly 0.5 hours after installation.
- Factory service accesses the modules from behind the glove box.
- Flagship One units arrive pre‑programmed, eliminating the relearn.
When a 2002 Mercury Villager begins to exhibit intermittent stalling, unexpected gear shifts, or a complete no‑start condition, the electronic control modules are often the first suspects. Understanding how the engine control module (ECM) and powertrain control module (PCM) operate in this specific model helps you evaluate repair options and avoid unnecessary downtime. This guide outlines what the modules do, where they sit, the labor involved in replacement, and how Flagship One’s pre‑programmed units simplify the post‑install process, giving you a clear path to restoring reliable performance.
What the PCM Does in a 2002 Mercury Villager
The ECM and PCM in the 2002 Mercury Villager act as the central processors that translate sensor data into actionable commands for fuel injection, ignition timing, and transmission control. By continuously monitoring inputs such as throttle position, engine speed, and coolant temperature, they ensure the engine runs smoothly and the gearbox shifts at optimal points. When these modules fail, the vehicle may lose power, stall, or refuse to start. The design integrates both engine and drivetrain management, making them critical for overall drivability. For owners seeking a replacement, 2002 Mercury Villager replacement ECM offers a direct fit that matches factory specifications.
Where the PCM Is Located and What Replacement Involves

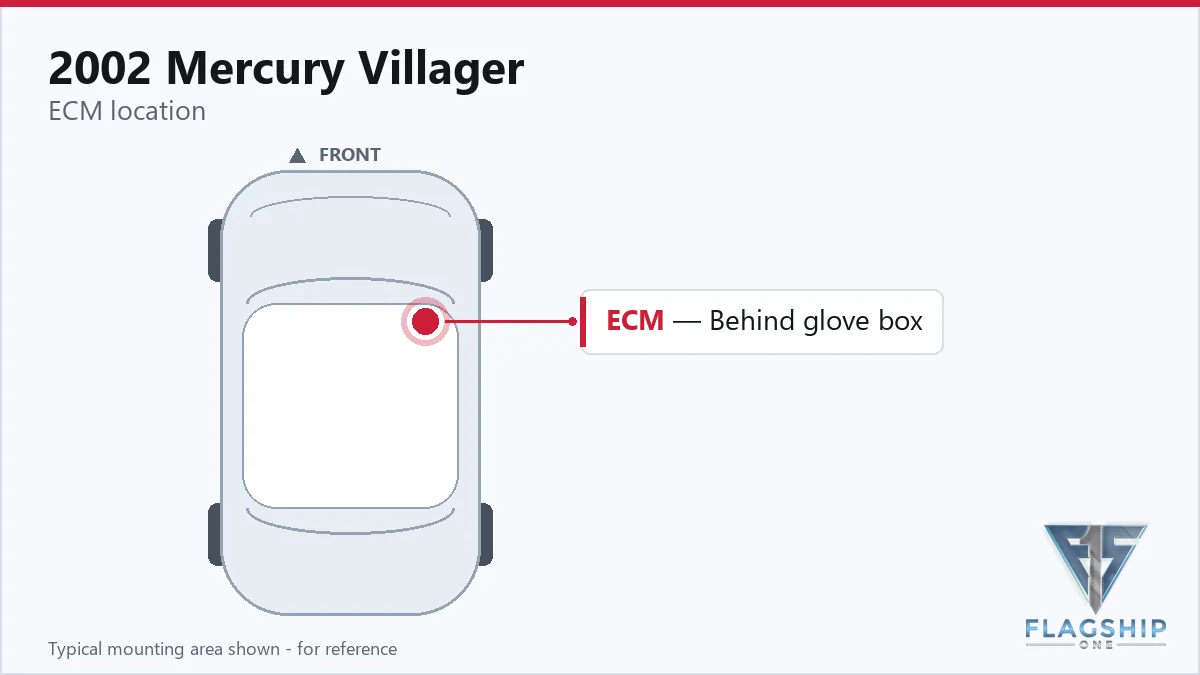

The factory removal procedure locates the control module behind the glove box, requiring the interior panel to be removed to gain access. Once the glove box is taken out of the way, the module can be unplugged and extracted. The book time for removing either the ECM or PCM is listed as 0.9 hours, reflecting the steps to disconnect wiring harnesses and fasteners. Reinstallation follows the same path in reverse, ensuring connectors are seated firmly. No specific torque values are provided, so standard hand‑tightening of the mounting bolts is typical for this vehicle.
How to Reach the PCM on the 2002 Mercury Villager
- Disconnect the battery ground cable.
- Remove the glove box.
- Remove the passenger side air bag bracket.
- Remove the nuts.
- Remove the powertrain control module (PCM) electrical connector from the PCM.
- Loosen the bolt.
- Disconnect the two electrical connectors and relay from the top of the PCM.
- Remove the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.9 hr |
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module in the 2002 Mercury Villager, the factory service procedure calls for a PCM relearn that takes about 0.5 hours of labor. This step re‑establishes adaptive parameters for transmission shift timing and engine performance. Flagship One units arrive as a VIN-programmed replacement unit, meaning the relearn is already completed at the factory, and the technician can skip the additional programming time, reducing overall shop time.
Symptoms of a Failing PCM
A failing ECM or PCM in the 2002 Mercury Villager often reveals itself through a no‑start condition, rough idle, or unexpected gear changes. Drivers may notice the check engine light flashing, or the vehicle may enter limp mode, limiting power output. Diagnostic scans frequently return communication faults such as communication fault, indicating the control module is not responding to the scan tool. Additional signs include stalling at low speeds, misfire codes, and loss of driveability during acceleration, all of which point to the electronic brain needing attention.
Protecting the PCM in Your 2002 Mercury Villager
- Maintain a healthy charging system to avoid voltage drops that can corrupt module memory.
- Inspect and clean all ground straps and connector pins regularly.
- Avoid jump‑starting the vehicle with extreme voltage spikes.
- Address any stored trouble codes promptly before they lead to module failure.
- Ensure connector seals remain intact to keep moisture out of the wiring harness.
- Use the correct gauge of battery cables to prevent excessive resistance.
Frequently Asked Questions
What are the typical labor times for replacing the ECM in a 2002 Mercury Villager?
The factory book lists about 0.9 hours for removing and installing the engine control module, reflecting the steps needed to access it behind the glove box.
Does the 2002 Mercury Villager require a PCM relearn after replacement?
Yes, the service procedure includes a PCM relearn step that usually takes roughly 0.5 hours of additional labor.
Can a pre‑programmed replacement eliminate the need for a PCM relearn?
Flagship One provides units that are VIN‑programmed at the factory, so the relearn process is already completed, saving shop time.
What common symptoms indicate a failing ECM or PCM in this model?
Drivers may experience no‑start conditions, erratic shifting, rough idle, or diagnostic codes such as P0601 that signal communication loss.
Where is the control module located on the 2002 Mercury Villager?
The module is situated behind the glove box, requiring removal of the interior panel to reach the unit for service.
When the ECM or PCM in your 2002 Mercury Villager needs attention, you can choose between a new factory‑direct replacement or a refurbished unit that meets original specifications. Both options restore the vehicle’s electronic control functions, but a Flagship One refurbished module offers the added benefit of factory VIN programming, eliminating the post‑install relearn step.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Mercury Villager with a lifetime warranty, free shipping and no core charge. The full Mercury Villager module lineup covers other engine configurations as well.
Final Thoughts
The 2002 Mercury Villager relies on its ECM and PCM for smooth operation. Whether you opt for a brand‑new or refurbished replacement, ensuring proper installation and programming will help return your vehicle to reliable performance. Consider Flagship One’s pre‑programmed solutions for a streamlined repair.
