2001 Mercury Villager PCM and ECM Replacement Guide
The powertrain control module (PCM) in the 2001 Mercury Villager with the 3.3L engine is the main computer that manages fuel injection, ignition timing, and transmission shifting. When it fails, the engine may stall, misfire, or refuse to start. The module is located behind the glove box for access.
Quick Summary

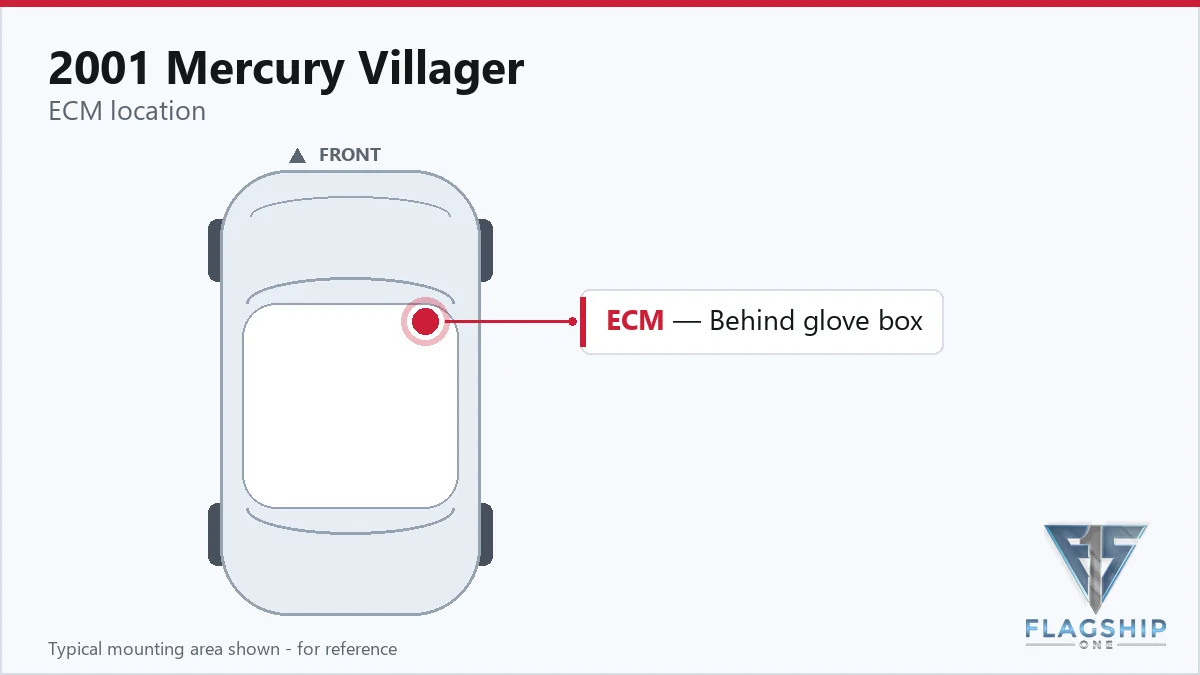

- The PCM/ECM is located behind the glove box; removal takes 0.9 hours.
- A failed module can cause no-start, stalling, misfire codes, or loss of scan tool communication.
- After replacement, the factory requires a 0.5-hour relearn procedure.
- A pre-programmed unit from Flagship One arrives with your VIN already set, eliminating the relearn step.
If your 2001 Mercury Villager with the 3.3L engine is experiencing intermittent stalling, hard starting, or transmission shifting issues, the powertrain control module (PCM) may be the culprit. The PCM is the brain of the engine management system, controlling fuel delivery, spark timing, and transmission operation. When it begins to fail, symptoms can mimic other problems like a bad sensor or fuel pump. This guide explains what the module does in your specific vehicle, where it is located, and what replacement involves. You will learn the factory-required steps for removal and reprogramming, and how a pre-programmed replacement unit can simplify the repair. Understanding these details helps you make an informed decision about repairing or replacing the module, saving time and avoiding unnecessary diagnostic work.
What the PCM Does in a 2001 Mercury Villager
The powertrain control module (PCM) in the 2001 Mercury Villager with the 3.3L engine is a single computer that integrates engine and transmission control. It receives input from sensors such as the crankshaft position sensor, oxygen sensors, and throttle position sensor, then adjusts fuel injector pulse width, ignition timing, and shift points. This module also monitors emissions systems and stores diagnostic trouble codes. When the PCM fails, it may lose communication with the scan tool, cause erratic idle, or prevent the engine from starting. The module is a sealed unit that cannot be repaired; replacement is the only option. For this vehicle, Mercury Villager PCM modules are available as new or remanufactured units. Choosing a pre-programmed unit ensures the module is ready to install without needing a dealer visit for VIN programming.
Where the PCM Is Located and What Replacement Involves
The factory removal procedure for the 2001 Mercury Villager PCM involves accessing the module behind the glove box. To reach it, you remove the glove box assembly, then unbolt the module from its bracket. The book time for removing and replacing the engine control module or powertrain control module is 0.9 hours. After installation, the factory requires a powertrain control module relearn procedure that takes 0.5 hours. This relearn allows the module to adapt to the vehicle’s specific sensors and driving habits. The location behind the glove box is relatively accessible, but care is needed to avoid damaging the wiring harness connectors. No special tools are required beyond basic hand tools.
How to Reach the PCM on the 2001 Mercury Villager
- Disconnect the battery ground cable.
- Remove the glove box.
- Remove the passenger side air bag bracket.
- Remove the nuts.
- Remove the powertrain control module (PCM) electrical connector from the PCM.
- Loosen the bolt.
- Disconnect the two electrical connectors and relay from the top of the PCM.
- Remove the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.9 hr |
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new or remanufactured PCM in the 2001 Mercury Villager, the factory procedure requires a 0.5-hour powertrain control module relearn. This step is necessary for the module to synchronize with the vehicle’s immobilizer system and learn the idle and fuel trim values. Without this relearn, the engine may run poorly or not start. Flagship One provides a VIN-programmed replacement unit that arrives with your vehicle’s VIN already programmed into the module. This means the relearn procedure is already completed, so you can install the module and start the engine without additional steps. The unit is plug-and-play, saving you the 0.5-hour labor cost and the need for a dealer scan tool.
Symptoms of a Failing PCM
A failing PCM in the 2001 Mercury Villager can produce a range of symptoms. The engine may crank but not start, or it may start and stall shortly after. You might notice intermittent misfires, rough idle, or hesitation during acceleration. Transmission shifting may become erratic, with harsh or delayed shifts. The check engine light may illuminate with codes related to fuel trim, ignition, or communication. In some cases, the scan tool cannot communicate with the PCM at all, indicating a dead module. Electrical issues like random stalling or no-start conditions are common. If you experience these problems, diagnosing the PCM should be part of your troubleshooting process.
Protecting the PCM in Your 2001 Mercury Villager
- Keep the battery and charging system in good condition; voltage spikes can damage the PCM.
- Ensure all engine ground straps and PCM connector grounds are clean and tight.
- Avoid jump-starting the vehicle with a running donor car; use a battery charger instead.
- Address any check engine light codes promptly to prevent secondary damage to the module.
- Inspect the PCM connector for corrosion or bent pins, especially after water intrusion.
- Do not disconnect the battery while the engine is running, as this can cause voltage surges.
Frequently Asked Questions
Where is the PCM located on a 2001 Mercury Villager?
The PCM is located behind the glove box on the passenger side. You need to remove the glove box assembly to access the module. The factory book time for removal and replacement is 0.9 hours.
Can I replace the PCM in my 2001 Mercury Villager myself?
Yes, if you have basic mechanical skills. The module is accessible behind the glove box. However, after installation, the factory requires a 0.5-hour relearn procedure. A pre-programmed unit from Flagship One eliminates that step.
What symptoms indicate a bad PCM in a 2001 Mercury Villager?
Common symptoms include no-start, stalling, misfire codes, erratic transmission shifting, and loss of scan tool communication. These can also be caused by other faults, so proper diagnosis is important.
How long does it take to replace the PCM on a 2001 Mercury Villager?
The book time for removing and replacing the PCM is 0.9 hours. An additional 0.5 hours is required for the factory relearn procedure if you use a standard replacement module.
Do I need to program a new PCM for my 2001 Mercury Villager?
Yes, the factory procedure requires a 0.5-hour relearn after installation. However, Flagship One sells pre-programmed units that arrive with your VIN already set, so no programming is needed.
When your 2001 Mercury Villager PCM fails, you have two options: repair or replace. Repair is rarely possible because the module is sealed. A remanufactured or new replacement is the standard solution. Choosing a pre-programmed unit from Flagship One saves you the 0.5-hour relearn procedure and ensures the module is ready to install. This is especially valuable for the Villager, where the PCM controls both engine and transmission functions.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 Mercury Villager with a lifetime warranty, free shipping and no core charge. The full Mercury Villager module lineup covers other engine configurations as well.
Final Thoughts
The 2001 Mercury Villager with the 3.3L engine relies on its PCM for proper operation. When the module fails, symptoms like no-start, stalling, or shifting issues can appear. Replacement is straightforward with the module behind the glove box, and a pre-programmed unit from Flagship One eliminates the factory relearn step, getting you back on the road faster.
