2018 Cadillac CTS-V ECM and PCM Replacement Guide
The Engine Control Module (ECM) in the 2018 Cadillac CTS-V with the 6.2L supercharged V8 manages fuel delivery, ignition timing, boost control, and emissions. When it fails, the vehicle may not start, run poorly, or trigger warning lights. The Powertrain Control Module (PCM) performs similar functions and is often used interchangeably.
Quick Summary
- ECM removal and installation for the 6.2L engine is a 0.6-hour job.
- A separate ECM relearn procedure takes 0.5 hours; a reset takes 0.3 hours.
- Factory service bulletins address ECM memory clearing after other module programming and a circuit board connection recall.
- A pre-programmed replacement module from Flagship One eliminates the need for dealer programming.
If your 2018 Cadillac CTS-V (6.2L) is experiencing no-start, stalling, or check-engine lights, the ECM or PCM may be at fault. This guide explains what these modules do, common failure symptoms, and the labor involved in replacement. You will also learn about factory service bulletins and how a pre-programmed unit can simplify the repair.
What the PCM Does in a 2018 Cadillac CTS-V
The Engine Control Module (ECM) in the 2018 Cadillac CTS-V is the brain that manages the supercharged 6.2L V8. It controls fuel injection timing, ignition advance, boost pressure, and emissions systems. When the ECM fails, the engine may not start, may misfire, or may enter a reduced-power mode. The Powertrain Control Module (PCM) is essentially the same component in this vehicle, often used as an alternative name. A failing module can cause drivability issues and trigger diagnostic trouble codes. For this model, replacement ECMs for the CTS-V are available that match the original specifications and are pre-configured to avoid lengthy dealer visits.

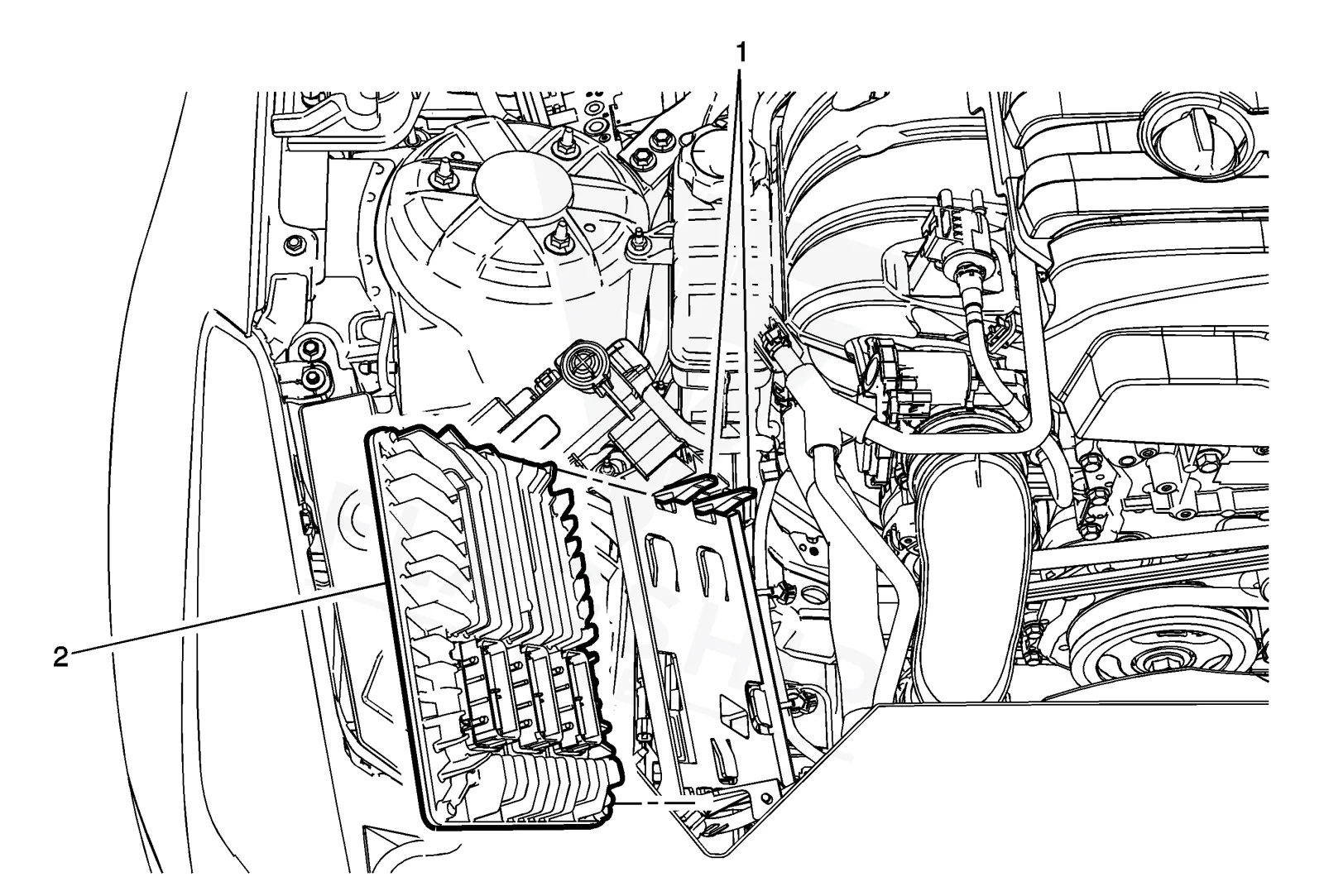

Where the PCM Is Located and What Replacement Involves
The ECM on the 2018 Cadillac CTS-V is typically mounted in the engine bay, often near the air cleaner housing or on the passenger-side strut tower. Replacement involves disconnecting the battery, removing any covers, unplugging the electrical connectors (with the ignition off to prevent damage), and unbolting the module. According to factory labor times, removing and replacing the ECM for the 6.2L engine takes 0.6 hours. A separate ECM relearn procedure is listed at 0.5 hours, and an ECM reset at 0.3 hours. The Powertrain Control Module R&R for the 6.2L is also 0.6 hours. Always turn the ignition off when installing or removing ECM connectors to avoid component damage.
How to Reach the PCM on the 2018 Cadillac CTS-V
- Disconnect the negative battery cable.
- Remove the front compartment fuse block housing.
- Remove any debris from around the control module connector.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | 3.6L | 1.5 hr |
| Engine Control Module R&R | 6.2L | 0.6 hr |
| Engine Control Module R&R | 2.0L | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Powertrain Control Module R&R | 3.6L | 1.5 hr |
| Powertrain Control Module R&R | 2.0L | 0.6 hr |
| Powertrain Control Module R&R | 6.2L | 0.6 hr |
Programming Requirements After Replacement
After replacing the ECM on a 2018 Cadillac CTS-V, the factory procedure requires a relearn and sometimes a reset. The book time for an ECM relearn is 0.5 hours, and a reset is 0.3 hours. These steps typically involve a scan tool to synchronize the module with the vehicle’s security and emissions systems. Flagship One supplies a VIN-programmed replacement unit that arrives ready to install, so the dealer-level programming and relearn steps are already completed. This means you can install the module and start the engine without additional programming.
Symptoms of a Failing PCM
A failing ECM in the 2018 Cadillac CTS-V can cause a no-start condition, intermittent stalling, rough idle, or a sudden loss of power. You may also see warning lights for the check engine, traction control, or reduced engine power. Communication with a scan tool may be lost entirely. One common internal fault is internal control module memory checksum error, which indicates the ECM’s memory has been corrupted. Other symptoms include misfire codes, transmission shifting issues, and the engine running in a fail-safe mode.
Module Trouble Codes on the 2018 Cadillac CTS-V
The following diagnostic trouble codes are documented as module-internal faults for the 2018 Cadillac CTS-V ECM. These codes indicate a problem within the control module itself rather than an external sensor or circuit.
Factory Service Bulletins Worth Knowing
Three factory service bulletins apply to the 2018 Cadillac CTS-V ECM. Bulletin #18095 (June 2018) addresses a service update where the ECM’s OBD memory is cleared after programming other modules. Bulletin #18239-01 (December 2018) is an emission recall for ECM circuit board connection failure. Bulletin #PIP5373B (June 2018) covers programming error codes E4491 and E4423. These bulletins highlight known issues that may require module replacement or reprogramming.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Service Update – ECM OBD Memory Cleared After Programming of Other Modules – (Jun 11, 2018) | — |
| — | Emission Recall – ECM Circuit Board Connection Failure – (Dec 4, 2018) | Replace the Engine Control Module |
| — | Program ECM Error E4491/E4423 – (Jun 11, 2018) | — |
Protecting the PCM in Your 2018 Cadillac CTS-V
- Maintain a healthy charging system; voltage spikes from a failing alternator can damage the ECM.
- Keep all engine and chassis ground connections clean and tight to ensure stable module operation.
- Avoid jump-starting the vehicle with a running donor vehicle; use a battery charger instead to prevent voltage surges.
- Address any check-engine light or drivability code promptly before it leads to module failure.
- Inspect ECM connector seals and the module housing for moisture intrusion, which can cause corrosion.
Frequently Asked Questions
How long does it take to replace the ECM on a 2018 Cadillac CTS-V?
The factory book time for removing and installing the ECM on the 6.2L engine is 0.6 hours. An additional 0.5 hours is listed for the ECM relearn procedure, and 0.3 hours for a reset. Actual time may vary based on technician experience and access.
Can I install a used ECM from a salvage yard in my 2018 Cadillac CTS-V?
A used ECM will need to be programmed to your vehicle’s VIN and security system. This typically requires a dealer-level scan tool and may involve a relearn. A pre-programmed unit from Flagship One eliminates that step.
What does the factory recall #18239-01 cover for the 2018 Cadillac CTS-V?
That recall addresses an ECM circuit board connection failure that can cause a no-start or stalling condition. Dealers inspect and replace the ECM if necessary under the recall program.
If your 2018 Cadillac CTS-V needs an ECM or PCM replacement, you have two main options: have a dealer install a new module and perform the required programming, or choose a refurbished, pre-programmed unit from Flagship One. The latter arrives ready to install, saving the 0.5-hour relearn step and avoiding potential programming errors. For the supercharged 6.2L, a reliable replacement is essential to restore performance.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2018 Cadillac CTS-V with a lifetime warranty, free shipping and no core charge. The full Cadillac CTS-V module lineup covers other engine configurations as well.
Final Thoughts
The 2018 Cadillac CTS-V (6.2L) relies on its ECM for precise engine management. When the module fails, symptoms like no-start and stalling can appear. Factory labor times show a 0.6-hour R&R plus a 0.5-hour relearn. Flagship One offers a pre-programmed replacement that skips the dealer programming, getting your CTS-V back on the road faster.
