2012 Cadillac CTS‑V ECM/PCM Replacement Guide
In the 2012 Cadillac CTS‑V the engine control module (ECM) and powertrain control module (PCM) manage fuel delivery, ignition timing, transmission shifting and emissions monitoring. Failure of these computers can cause loss of power, erratic shifting, illumination of the check‑engine light and stored diagnostic codes.
Quick Summary
- ECM removal typically takes about 3.7 hours of labor.
- PCM replacement for the 6.2 L engine requires roughly 0.6 hours.
- Factory service bulletins call for ECM reprogramming after removal.
- Capture ECM data with a scan tool before disconnecting the unit.
When a 2012 Cadillac CTS‑V begins to display intermittent MIL warnings or unusual engine behavior, the underlying cause often traces back to the vehicle’s control computers. Understanding how the ECM and PCM function, the labor involved in swapping them, and the programming steps required can help you decide whether a repair or a refurbished replacement is the best path. This guide outlines what the modules do, where they live, the factory procedures, and practical steps to keep them healthy.
What the PCM Does in a 2012 Cadillac CTS-V
The engine control module in the 2012 Cadillac CTS‑V receives sensor inputs, calculates fuel and spark timing, and commands the transmission for optimal performance. It also monitors emissions and stores diagnostic trouble codes. Because the vehicle relies on precise timing, a malfunctioning ECM can lead to rough idle, stalling, or loss of power. The powertrain control module performs similar duties for the transmission and drivetrain, ensuring smooth shifts. Proper operation of both modules is essential for the high‑output 6.2 L V8 to deliver its expected performance. 2012 Cadillac CTS‑V engine control modules are designed to integrate with the vehicle’s wiring harness and sensor array.
Where the PCM Is Located and What Replacement Involves
The ECM is mounted within the engine compartment, typically attached to the firewall near the intake manifold. Removal involves disconnecting the battery, unplugging the harness, and unbolting the unit, a process that the labor guide rates at 3.7 hours. The PCM for the 6.2 L version resides under the passenger side footwell and is accessed by removing interior trim pieces; the book time for this swap is listed as 0.6 hours. Both modules require careful handling of connectors to avoid damage and must be reinstalled with proper torque as specified by the service manual.

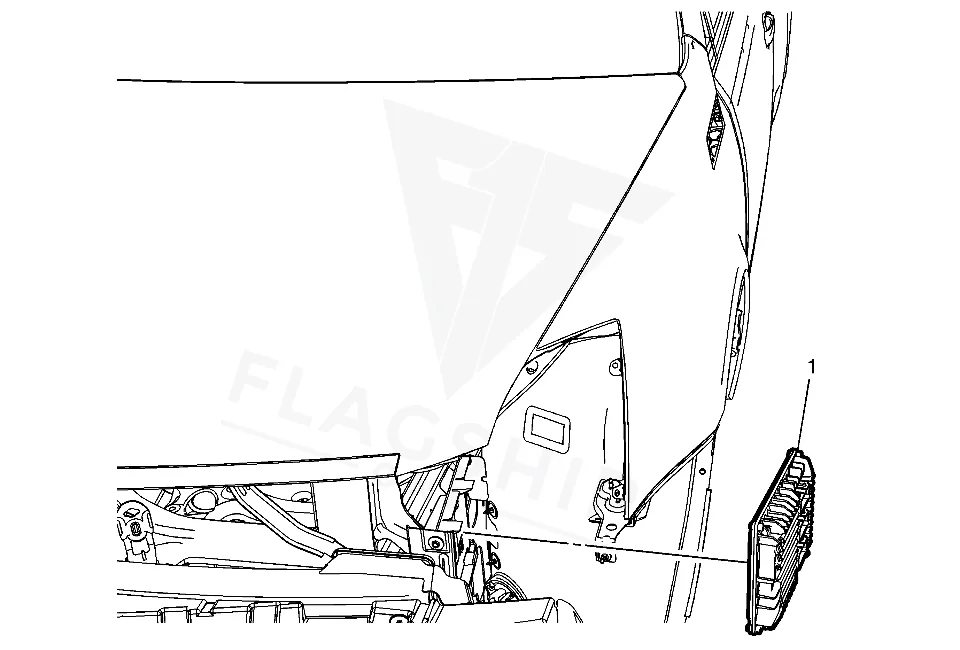

How to Reach the PCM on the 2012 Cadillac CTS-V
- Remove the left side head lamp.
- Remove any debris from around the control module connector.
- Release the retaining tabs.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 3.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | 3.0L | 3.7 hr |
| Powertrain Control Module R&R | 3.6L | 3.7 hr |
| Powertrain Control Module R&R | 6.2L | 0.6 hr |
Programming Requirements After Replacement
After installing a new ECM, the factory procedure calls for reprogramming the unit using the correct calibration and special equipment. Technicians must first capture the original ECM data with a scan tool before removal, then apply the updated software. Flagship One provides a ready‑to‑go solution; each unit arrives as a VIN‑programmed replacement unit that eliminates the need for on‑site reprogramming, streamlining the install.
Symptoms of a Failing PCM
Typical signs of a failing ECM or PCM in the 2012 Cadillac CTS‑V include a check‑engine light, intermittent loss of power, rough idle, and transmission shift irregularities. Drivers may notice stalling at idle or during acceleration, and diagnostic scans often reveal codes such as processor failure indicating internal processor issues. Other possible codes include P0602, P0603, P0604, P0606, P062F and P1621, each reflecting different internal faults.
Module Trouble Codes on the 2012 Cadillac CTS-V
The following diagnostic trouble codes are commonly logged by the control modules in this vehicle:
Factory Service Bulletins Worth Knowing
Service bulletins relevant to this model include PIP5018A (May 15 2012) and PIP5018B (Aug 14 2012), both addressing intermittent MIL illumination linked to DTC P0191 or P062F and recommending ECM reprogramming. Additionally, bulletin PIP4933D (Jul 11 2012) notes a part‑restriction for the E39 ECM, which may affect replacement options.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Intermittent MIL Due To DTC P0191 And/Or P062F – Reprogram ECM – (Aug 14, 2012) | — |
| — | Intermittent MIL Due To DTC P0191 And/or P062F – Reprogram ECM – (May 15, 2012) | — |
| — | PQC Part Restriction – E39 ECM – (Jul 11, 2012) | — |
Protecting the PCM in Your 2012 Cadillac CTS-V
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and clean ground connections and module connectors regularly.
- Avoid jump‑start spikes that can stress electronic components.
- Address stored diagnostic codes promptly before they worsen.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What should I do if the check‑engine light stays on after replacing the ECM in my 2012 Cadillac CTS‑V?
Run a scan to verify that no new codes appear, clear any existing codes, and confirm that the vehicle operates without abnormal symptoms. If the light persists, re‑check wiring and ground integrity.
Can I use a used PCM from another 2012 CTS‑V with a different engine size?
Only modules that match the exact engine displacement are compatible; the 6.2 L PCM differs from the 3.0 L and 3.6 L versions in programming and hardware.
Is special equipment needed to program the new ECM on my CTS‑V?
Factory reprogramming requires the correct software and calibration tools. Flagship One units arrive pre‑programmed, removing the need for on‑site equipment.
When the ECM or PCM fails in a 2012 Cadillac CTS‑V, you can choose a repair that restores the original unit or install a refurbished replacement that meets factory specifications. Both approaches require the same labor steps, but a pre‑programmed replacement can reduce downtime and eliminate the reprogramming phase.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Cadillac CTS-V with a lifetime warranty, free shipping and no core charge. The full Cadillac CTS-V module lineup covers other engine configurations as well.
Final Thoughts
Understanding the role and service requirements of the ECM and PCM helps you keep your 2012 Cadillac CTS‑V running smoothly. Whether you opt for a repair or a Flagship One refurbished unit, the proper procedure will protect performance and reliability.
