2013 Cadillac CTS-V ECM Replacement and Programming Guide
The Engine Control Module (ECM) in the 2013 Cadillac CTS-V manages fuel delivery, ignition timing, and emissions systems. Failure may cause no-start conditions, stalling, or warning lights on the dashboard.
Quick Summary
- ECM replacement typically requires 0.6 hours of labor for the 6.2L engine in the CTS-V.
- Factory procedure mandates capturing ECM data before removal and reprogramming afterward.
- Common symptoms include no-start conditions, stalling, or internal module trouble codes.
- Aftermarket electrical connections should be made at the battery to avoid damage.
- Flagship One units arrive VIN-programmed, eliminating the need for post-install programming.
If your 2013 Cadillac CTS-V is experiencing intermittent stalling, a no-start condition, or warning lights, the Engine Control Module (ECM) may be the cause. This critical component oversees engine performance, fuel efficiency, and emissions compliance. Replacing it involves more than just swapping hardware—proper programming and data transfer are essential to restore full functionality. Understanding the process, labor requirements, and symptoms can help you make informed decisions about repairs or replacements. This guide explains what the ECM does, where it’s located, and what steps are necessary to ensure your CTS-V runs reliably after service.
What the PCM Does in a 2013 Cadillac CTS-V
The Engine Control Module in your 2013 Cadillac CTS-V acts as the brain of the engine, continuously adjusting fuel injection, ignition timing, and other parameters for optimal performance. Without a functioning ECM, the vehicle may fail to start, run poorly, or trigger warning lights. Replacement engine computers for the CTS-V often becomes necessary when internal faults develop, but proper installation and programming are critical to avoid further issues. The module’s role extends beyond basic engine operation—it also influences transmission behavior and emissions control, making its reliability essential for smooth driving.

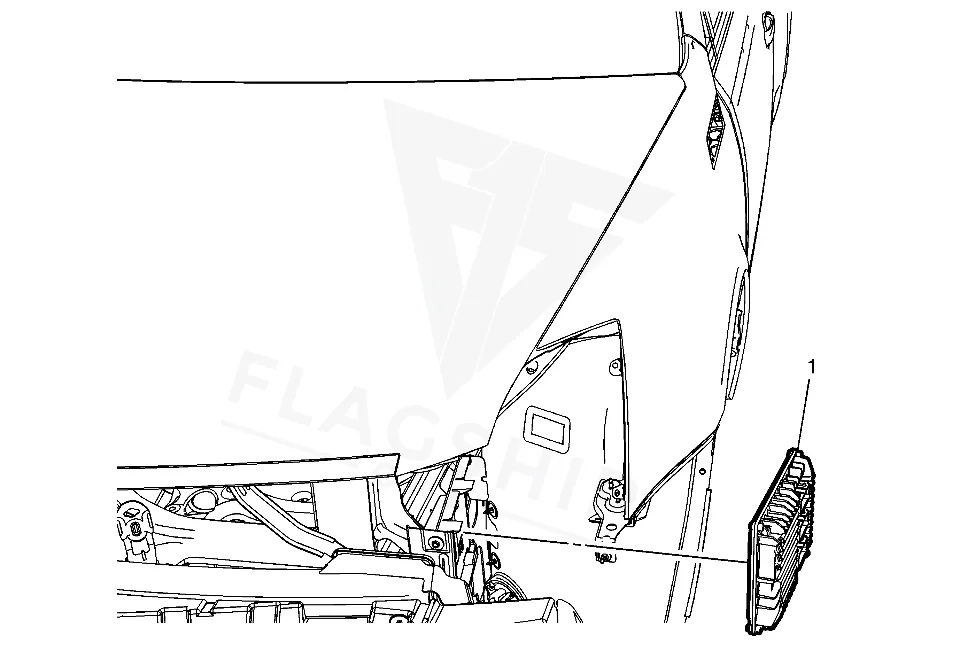

Where the PCM Is Located and What Replacement Involves
In the 2013 Cadillac CTS-V, the ECM is mounted near the engine bay, allowing for relatively quick access during replacement. Labor time for removing and reinstalling the module is typically 0.6 hours for the 6.2L engine. Before removal, technicians must capture the existing ECM data using a scan tool to preserve vehicle-specific settings. The process involves disconnecting electrical connectors, removing mounting hardware, and installing the new unit. No specialized tools beyond standard hand tools are required, but care must be taken to avoid damaging connectors or wiring during the procedure.
How to Reach the PCM on the 2013 Cadillac CTS-V
- Remove the left side head lamp.
- Remove any debris from around the control module connector.
- Release the retaining tabs.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 3.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | 3.0L | 3.7 hr |
| Powertrain Control Module R&R | 3.6L | 3.7 hr |
| Powertrain Control Module R&R | 6.2L | 0.6 hr |
Programming Requirements After Replacement
After installing a new ECM in your 2013 Cadillac CTS-V, the factory procedure requires reprogramming to match the vehicle’s specifications. This step ensures the module communicates correctly with other systems, such as the transmission and emissions controls. However, a VIN-programmed replacement unit from Flagship One arrives pre-configured, eliminating the need for additional programming. This saves time and reduces the risk of errors during the installation process. Always follow the manufacturer’s guidelines to confirm proper functionality before returning the vehicle to service.
Symptoms of a Failing PCM
A failing ECM in the 2013 Cadillac CTS-V may cause a range of issues, including intermittent no-start conditions, stalling at idle, or warning lights on the dashboard. Drivers might also notice poor engine performance, rough idling, or transmission shifting problems. Internal module faults often trigger trouble codes like internal control module memory checksum error, which can be read using a scan tool. If the module loses communication with the scan tool entirely, it may indicate a complete failure. Addressing these symptoms promptly can prevent further drivability issues.
Module Trouble Codes on the 2013 Cadillac CTS-V
The 2013 Cadillac CTS-V may log specific trouble codes when the ECM develops internal faults. These codes help technicians diagnose issues and determine whether replacement is necessary.
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 2013 Cadillac CTS-V address intermittent electrical issues that may affect the ECM. Bulletin #09-06-03-004E describes symptoms like no crank/no start, warning lights, or loss of module communication, often caused by fretting corrosion in connectors. The recommended repair involves disconnecting the affected connector and applying dielectric lubricant. Another bulletin, #09-06-04-026G, guides technicians in identifying non-GM engine and transmission calibrations using diagnostic tools. These bulletins provide troubleshooting steps to resolve ECM-related issues without unnecessary part replacement.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-06-03-004 | Intermittent No Crank/No Start, No Module Communication, MIL, Warning Lights, Vehicle Messages | Some customers may comment on any of the following conditions: An intermittent no crank/no start Intermittent malfunction indicator lamp (MIL) illumination… |
| 09-06-04-026 | Identifying Non-GM (Aftermarket) Engine and Transmission Calibrations for V6 and V8 Gasoline En | — |
Protecting the PCM in Your 2013 Cadillac CTS-V
- Maintain a healthy charging system to prevent voltage spikes that may damage the ECM.
- Keep electrical connections clean and secure to avoid corrosion or intermittent faults.
- Avoid jump-starting the vehicle with improper voltage, as this can harm sensitive modules.
- Address warning lights or trouble codes promptly to prevent further damage.
- Ensure connector seals remain intact to protect against moisture and debris.
- Use dielectric grease on connectors during service to reduce corrosion risk.
Frequently Asked Questions
How do I know if my 2013 Cadillac CTS-V ECM needs replacement?
Common signs include no-start conditions, stalling, or warning lights on the dashboard. A scan tool may reveal internal module trouble codes like P0601 or P0603. If the ECM fails to communicate with the scan tool, replacement is often necessary.
What is the labor time for replacing the ECM in a 2013 Cadillac CTS-V?
Replacement typically requires 0.6 hours of labor for the 6.2L engine. This includes removing the old module and installing the new one, but does not include programming time if required.
Do I need to reprogram the ECM after installing a new one in my CTS-V?
Yes, the factory procedure requires reprogramming to ensure the new ECM matches the vehicle’s specifications. However, a VIN-programmed replacement unit from Flagship One eliminates this step.
If your 2013 Cadillac CTS-V is experiencing ECM-related issues, you have options for repair or replacement. A new or refurbished module can restore functionality, but proper programming is essential. Flagship One provides VIN-programmed units, simplifying the installation process and reducing downtime. Consider the labor time and potential symptoms when deciding the best course of action for your vehicle.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 Cadillac CTS-V with a lifetime warranty, free shipping and no core charge. The full Cadillac CTS-V module lineup covers other engine configurations as well.
Final Thoughts
The 2013 Cadillac CTS-V relies on its ECM for smooth engine operation and drivability. If you’re facing no-start conditions, stalling, or warning lights, addressing the module promptly can prevent further issues. Whether you choose a repair or replacement, understanding the process ensures your vehicle remains reliable on the road.
