2015 Buick Enclave ECM Replacement and Programming Guide
The Engine Control Module (ECM) in the 2015 Buick Enclave manages fuel delivery, ignition timing, and emissions systems. Failures may cause drivability issues, warning lights, or prevent the engine from starting.
Quick Summary
- ECM replacement typically requires 0.9 hours of labor.
- A relearn procedure adds 0.5 hours if needed.
- Static discharge can damage the module—handle connectors carefully.
- Factory programming is required for new or replacement ECMs.
- Flagship One units arrive VIN-matched to eliminate extra steps.
If your 2015 Buick Enclave struggles to start, stalls unexpectedly, or triggers warning lights, the Engine Control Module (ECM) may be at fault. This critical component oversees engine performance, and when it fails, symptoms can range from rough idling to complete no-crank conditions. Replacing it involves careful handling to avoid damage, followed by programming to restore full functionality. Understanding the process helps you anticipate repair steps and avoid unnecessary delays. A properly installed and programmed ECM ensures your Enclave runs as intended, with no lingering drivability issues.
What the PCM Does in a 2015 Buick Enclave
The ECM in the 2015 Buick Enclave acts as the brain of the engine, controlling fuel injection, spark timing, and emissions systems. It constantly adjusts these parameters based on sensor inputs to optimize performance and efficiency. When the module malfunctions, your vehicle replacement engine computers for the Enclave may experience erratic behavior, poor fuel economy, or failure to start. Because the ECM integrates with multiple systems, its reliability directly impacts overall drivability. A faulty unit often triggers warning lights or stores trouble codes, signaling the need for diagnosis or replacement.

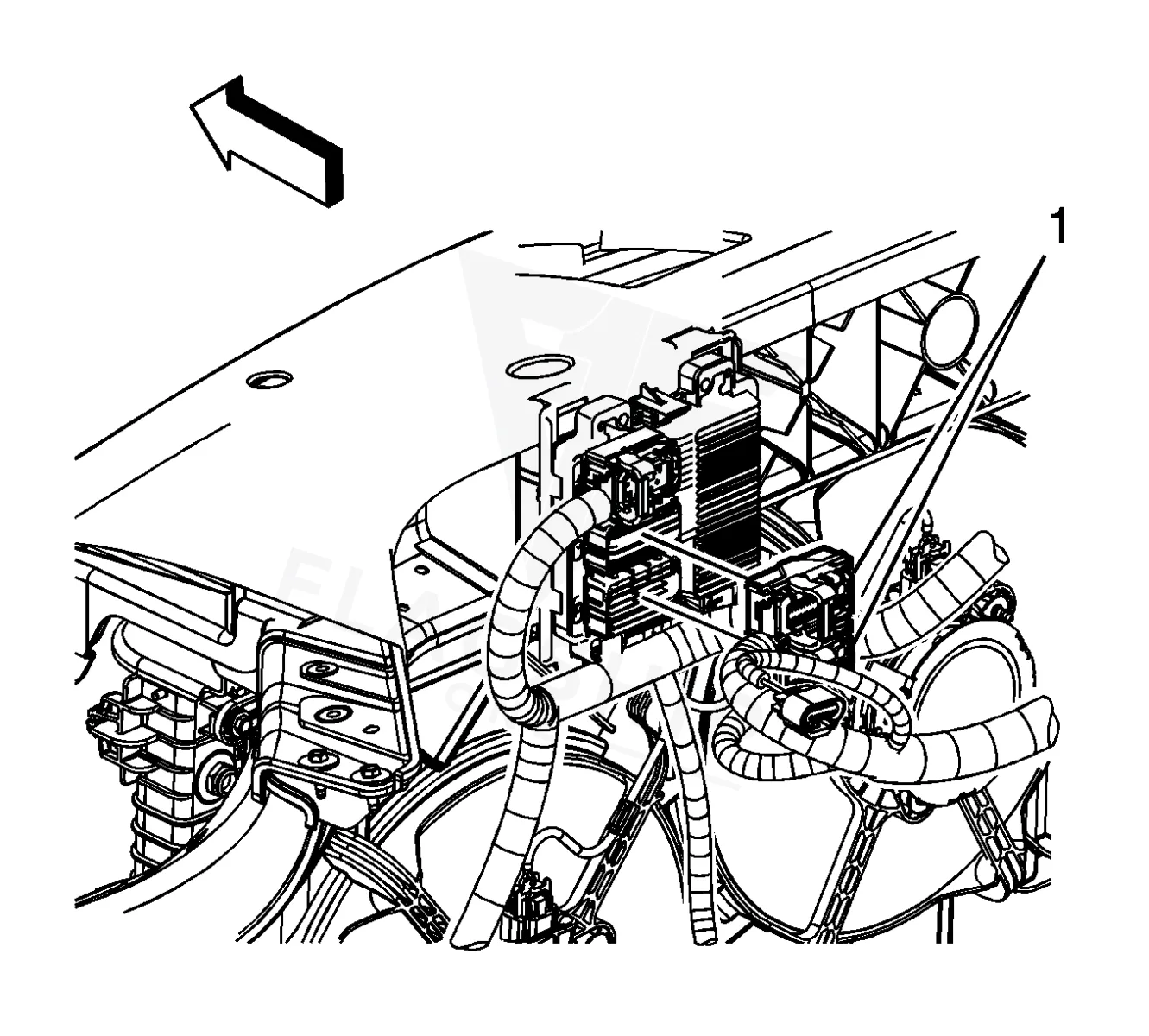

Where the PCM Is Located and What Replacement Involves
The ECM in the 2015 Buick Enclave is mounted on a bracket, typically accessible after removing the engine cover. To replace it, gently lift the retaining tab and remove the module from its support brackets—avoid touching the connector pins to prevent electrostatic damage. Reinstallation follows the reverse process. Labor guides estimate 0.9 hours for removal and replacement, with an additional 0.5 hours if a relearn procedure is required. Always ensure the connector is fully seated and the retaining tab is secure to prevent intermittent electrical issues.
How to Reach the PCM on the 2015 Buick Enclave
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the engine wiring harness middle and lower electrical connectors from.
- Disconnect the engine wiring harness upper electrical connector from the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
Programming Requirements After Replacement
After installing a new ECM in your 2015 Buick Enclave, the factory procedure requires reprogramming to match the vehicle’s specifications. This involves using a specialized tool to load the correct calibration. However, when you install a VIN-programmed replacement unit, these steps are already completed, saving time and reducing the risk of programming errors. If reusing the original module, a scan tool must first capture its data before removal to preserve critical settings.
Symptoms of a Failing PCM
A failing ECM in the 2015 Buick Enclave may cause a range of symptoms, including intermittent stalling, rough idling, or a no-start condition. You might also notice poor acceleration, reduced fuel efficiency, or warning lights on the dashboard. In some cases, the vehicle may enter a limp-home mode, limiting engine power. Trouble codes like internal control module memory checksum error often appear, indicating a potential module failure. If the scan tool fails to communicate with the ECM, the module itself may be the issue.
Module Trouble Codes on the 2015 Buick Enclave
The 2015 Buick Enclave’s ECM may store specific trouble codes when internal faults occur. These codes help diagnose whether the module itself is failing or if another issue is affecting engine performance.
Factory Service Bulletins Worth Knowing
Factory service bulletin #17-NA-242 addresses updates to the Service Programming System (SPS) that warn or prevent reprogramming a module with its existing calibration. Another bulletin, #PIT5436A, provides diagnostic tips for enabling OnStar Wi-Fi after a Vehicle Communication Interface Module (VCIM) replacement or reprogramming event. While not directly related to the ECM, these bulletins highlight the importance of following updated programming procedures during module service.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Information on Changes to SPS that Warn/Prohibit Reprogramming a Module With Its Current Calibr | — |
| — | Diagnostic Tip: OnStar WIFI Enable After VCIM Replacement Or Reprogramming Event – (Nov 24, 201 | — |
Protecting the PCM in Your 2015 Buick Enclave
- Maintain a stable charging system to prevent voltage spikes that could damage the ECM.
- Keep electrical connectors clean and free of corrosion to ensure reliable communication.
- Avoid jump-starting with improper voltage, which may stress sensitive electronics.
- Address warning lights or trouble codes promptly to prevent cascading failures.
- Ensure the ECM connector seal remains intact to protect against moisture intrusion.
Frequently Asked Questions
How do I know if my 2015 Buick Enclave’s ECM is failing?
Common signs include stalling, no-start conditions, or warning lights. A scan tool may reveal module-specific trouble codes like P0601 or P0606. If the vehicle enters limp mode or fails to communicate with diagnostic tools, the ECM may need replacement.
Can I replace the ECM in my 2015 Buick Enclave myself?
While physically replacing the ECM is straightforward, programming is required afterward. Without the proper tools and software, the vehicle may not start or run correctly. A pre-programmed unit simplifies the process.
What happens if I don’t reprogram the ECM after replacement?
The vehicle may not start, run poorly, or trigger warning lights. Reprogramming ensures the ECM matches the vehicle’s specifications, including fuel maps and emissions controls. Skipping this step can lead to drivability issues.
If your 2015 Buick Enclave requires an ECM replacement, you have options. A new or refurbished unit can restore functionality, but programming is essential. A VIN-matched replacement eliminates the need for on-site programming, reducing repair time and complexity. Consider your budget and timeline when choosing between a dealer visit or a pre-programmed aftermarket solution.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2015 Buick Enclave with a lifetime warranty, free shipping and no core charge. The full Buick Enclave module lineup covers other engine configurations as well.
Final Thoughts
Replacing the ECM in your 2015 Buick Enclave can resolve persistent drivability issues, but proper installation and programming are key. Whether you opt for a dealer-installed unit or a pre-programmed replacement, ensuring the module is correctly matched to your vehicle avoids further complications. Addressing the problem promptly keeps your Enclave running reliably.
