2014 Buick Enclave ECM Replacement and Programming Guide
The Engine Control Module (ECM) in your 2014 Buick Enclave with the 3.6L V6 serves as the primary computer managing fuel delivery, ignition timing, emissions controls, and sensor inputs. When internal memory corruption occurs, the module may set fault codes and cause drivability issues.
Quick Summary
- ECM replacement requires 0.9 hours for removal and installation plus 0.5 hours for relearn procedure
- Factory caution mandates avoiding connector pin contact to prevent electrostatic discharge damage
- Special equipment and correct vehicle calibration are required for ECM reprogramming
- Module-internal codes P0601-P0606 and P060A, P062F, P1621 indicate internal ECM failures
If your 2014 Buick Enclave has developed starting issues, stalling, or illuminated a check engine light with no obvious cause, the Engine Control Module may be failing. The ECM is the central computer that manages your vehicle’s 3.6L V6 engine operation, coordinating fuel delivery, ignition timing, and emissions systems. This guide explains what the module does, where it is located, the replacement process, and programming requirements so you understand what a professional technician will encounter during repair.
What the PCM Does in a 2014 Buick Enclave
The Engine Control Module in your 2014 Buick Enclave functions as the brain of the powertrain, processing inputs from dozens of sensors throughout the engine bay to calculate optimal fuel delivery, spark timing, and emissions control strategies. This computer interfaces with the transmission control module, ABS system, and body control module through the CAN bus network, coordinating nearly every aspect of vehicle operation. When the internal processor or memory within the ECM becomes corrupted, the module may lose the ability to execute calibrations properly, potentially causing your vehicle to run poorly or not start at all. Replacement engine computers for the Enclave must be programmed with the exact vehicle identification number and calibration files matching your specific model year to restore proper function.
Flagship One keeps Buick Enclave replacement engine computers in stock for exactly this failure pattern.
What Replacing the PCM Involves

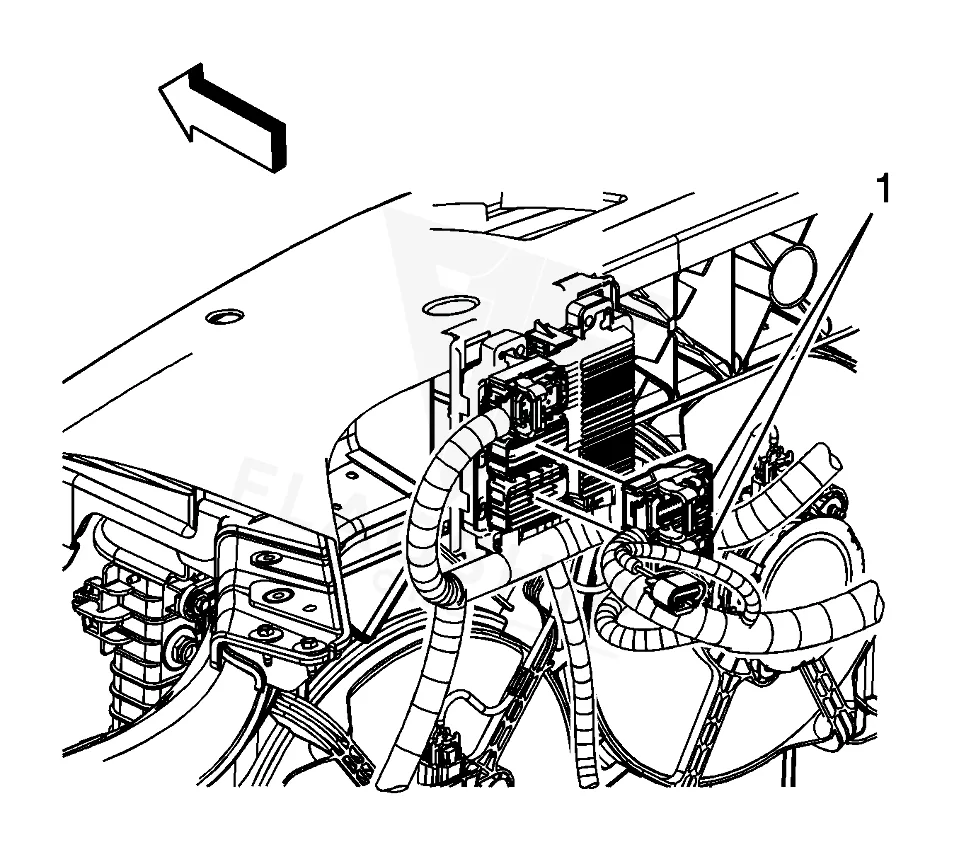

How to Reach the PCM on the 2014 Buick Enclave
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the engine wiring harness middle and lower electrical connectors from.
- Disconnect the engine wiring harness upper electrical connector from the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
Programming Requirements After Replacement
After installing a new ECM in your 2014 Buick Enclave, the factory procedure requires using a scan tool to capture data from the original module before removal, then reprogramming the new module with the correct vehicle calibration files. Special diagnostic equipment along with the proper program specific to this vehicle are required to complete the reprogramming. Flagship One units arrive as a VIN-programmed replacement unit, meaning the programming steps have already been completed at the factory using your specific vehicle identification number, allowing for a straightforward plug-and-play installation in most cases.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the Engine Control Module fails on this vehicle, you may experience no-start conditions where the engine cranks but will not run, or intermittent stalling that leaves you stranded. Misfire codes such as P0300 through P0306 may appear along with rough idle and reduced power feeling. In some cases, the scan tool may fail to communicate with the ECM entirely, or the malfunction indicator lamp may illuminate with fault code P069E as documented in service bulletin #PI1082. Transmission shifting may become erratic or the vehicle may default to limp mode. If your 2014 Buick Enclave exhibits any combination of these symptoms following an ECM failure, diagnosis and replacement may be necessary.
Module Trouble Codes on the 2014 Buick Enclave
The 2014 Buick Enclave with 3.6L engine documents specific module-internal trouble codes that indicate various internal failures within the Engine Control Module itself, ranging from checksum errors to calibration memory issues and internal processor faults.
Factory Service Bulletins Worth Knowing
Factory service bulletin #PI1082, issued October 10, 2013, addresses cases where the malfunction indicator lamp illuminates with diagnostic trouble code P069E set. Additionally, bulletin #09-06-04-026, published March 19, 2013, provides guidance for identifying non-General Motors engine and transmission calibrations on V6 and V8 gasoline engines using diagnostic tools. These bulletins assist technicians in recognizing ECM issues stemming from aftermarket programming or calibration conflicts.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Malfunction Indicator Lamp (MIL) On, DTC P069E Set – (Oct 10, 2013) | — |
| 09-06-04-026 | Identifying Non-GM (Aftermarket) Engine and Transmission Calibrations for V6 and V8 Gasoline En | — |
Protecting the PCM in Your 2014 Buick Enclave
- Maintain healthy charging system voltage to prevent low-voltage startup strain on the ECM
- Keep battery terminals and ECM ground connections clean and free of corrosion
- Avoid jump-starting from vehicles with incompatible electrical systems to prevent voltage spikes
- Address check engine lights promptly rather than driving with known fault codes
- Ensure connector seals remain intact and free of debris during any engine bay service
Frequently Asked Questions
Will any ECM fit my 2014 Buick Enclave or do I need an exact match?
The replacement ECM must be programmed with your specific vehicle identification number and the correct calibration for the 3.6L engine. Using a unit that is not VIN-matched to your vehicle will result in improper operation or no-start condition.
Can I replace the ECM on my 2014 Buick Enclave myself?
While the physical removal and installation may be performed by a skilled DIYer, the reprogramming requires expensive dealer-grade equipment. Additionally, factory cautions warn against touching connector pins due to electrostatic discharge risk. Most owners benefit from professional installation.
How do I know if my Buick Enclave ECM needs replacement versus repair?
If diagnostic trouble codes indicate module-internal failures such as P0601 through P0606, or if the ECM fails to communicate with a scan tool, replacement is typically required. Internal ECM faults generally cannot be repaired and the module must be replaced.
When your 2014 Buick Enclave requires ECM replacement, you have two primary options: a new OEM unit from the dealer, which often involves significant wait times and high programming fees, or a refurbished replacement from a specialist like Flagship One. The refurbished path typically provides a VIN-programmed unit ready to install, saving you the expense and delay of dealer programming. Consider your budget, timeline, and warranty preferences when choosing your replacement path.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 Buick Enclave with a lifetime warranty, free shipping and no core charge. The full Buick Enclave module lineup covers other engine configurations as well.
Final Thoughts
The Engine Control Module in your 2014 Buick Enclave is a critical component that manages engine operation and interfaces with multiple vehicle systems. When failure occurs, professional diagnosis followed by proper replacement and programming restores full function. Whether you choose dealer replacement or a VIN-programmed unit from Flagship One, addressing ECM issues promptly helps prevent further drivability problems.
