2013 Buick Enclave ECM Replacement Guide and Troubleshooting Procedures
The engine control module in the 2013 Buick Enclave manages fuel delivery, ignition timing and emissions. A failure can interrupt communication with sensors, trigger multiple processor codes and cause loss of power or drivability issues.
Quick Summary
- Removal requires about 0.9 hours and careful handling of connector pins.
- Relearn of the powertrain control module takes roughly 0.5 hours.
- New ECMs must be programmed with vehicle‑specific calibration before use.
When a 2013 Buick Enclave begins to exhibit erratic idle, unexpected stalls, or a cascade of processor‑related diagnostic codes, the engine control module is often at the heart of the problem. Understanding how the ECM interacts with the vehicle’s sensors and actuators helps you decide whether a repair or a replacement is the most efficient path. This guide walks you through the module’s purpose, where it sits, the steps to remove and reinstall it, and the programming requirements that follow. By the end, you’ll know what tools and precautions are needed, how long the work typically takes, and what outcomes to expect from a properly executed service.
What the PCM Does in a 2013 Buick Enclave
In the 2013 Buick Enclave, the engine control module acts as the central processor for the powertrain, interpreting sensor inputs and commanding fuel injectors, spark timing and emission controls. It continuously monitors engine speed, temperature, and load to keep performance within factory specifications. Because the vehicle relies on precise timing, any disruption in the ECM’s operation can lead to a range of drivability problems, from rough running to a complete no‑start condition. The module also stores calibration data that must match the engine’s hardware; mismatched data can trigger fault codes and limit power. Proper function is essential for emissions compliance and fuel efficiency. Enclave ECM replacements are designed to meet these exact requirements.

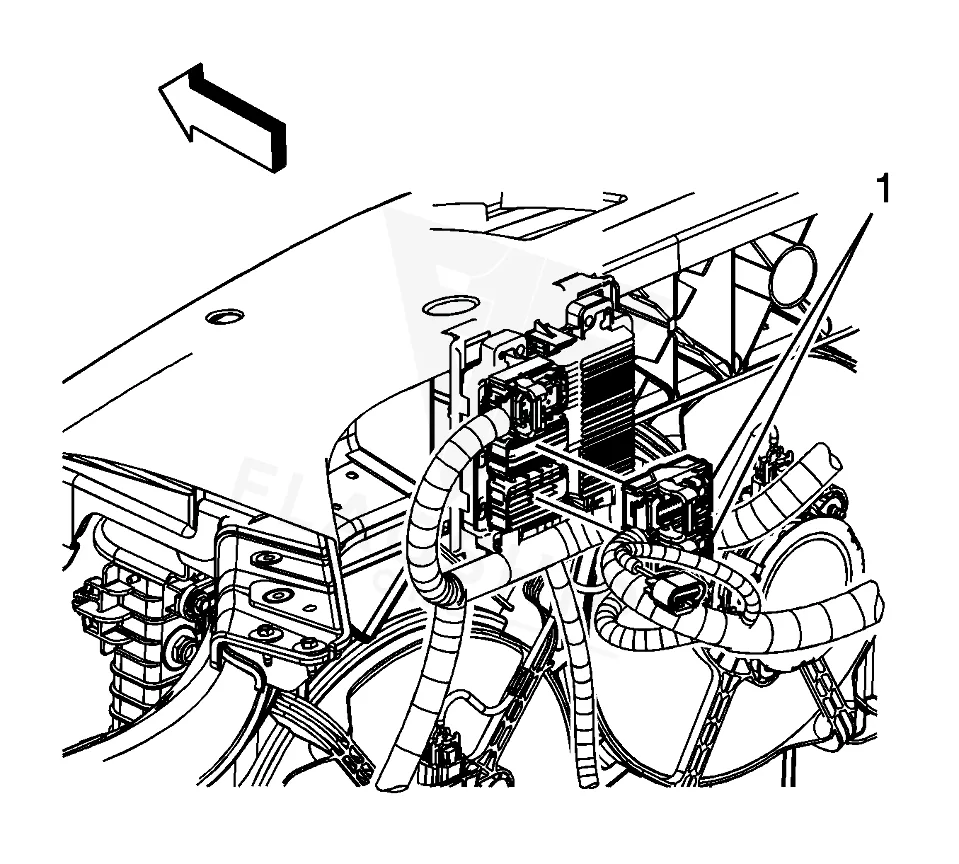

Where the PCM Is Located and What Replacement Involves
The ECM is mounted within a support bracket on the engine compartment, secured by retaining tabs that must be gently lifted to free the unit. Access involves lifting the tab, extracting the module from its brackets, and disconnecting the electrical plug without touching the pins to avoid electrostatic damage. Reinstallation follows the reverse order, ensuring the connector is fully seated before the retaining tab is replaced. The factory book time for removing and reinstalling the powertrain control module is listed as 0.9 hours, while the engine control module relearn procedure adds another 0.5 hours. No torque specifications are provided in the source material.
How to Reach the PCM on the 2013 Buick Enclave
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the engine wiring harness middle and lower electrical connectors from.
- Disconnect the engine wiring harness upper electrical connector from the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
Programming Requirements After Replacement
After the ECM is swapped, the factory procedure calls for a specific reprogramming step using calibrated equipment and the correct software version for the 2013 Buick Enclave. The process includes capturing the original module’s data before removal, then loading the appropriate program and calibration onto the new unit. Flagship One supplies a VIN-programmed replacement unit that arrives pre‑loaded with the required software, eliminating the need for on‑site reprogramming and ensuring the vehicle is ready to run once the hardware is installed.
Symptoms of a Failing PCM
Typical signs of a failing ECM in this model include a complete loss of engine power, intermittent stalling, and a variety of processor‑related diagnostic trouble codes. Drivers may notice the check engine light flashing while the engine hesitates or dies during acceleration. Communication with scan tools can be lost, making troubleshooting more difficult. One common fault that appears is processor clock fault, which indicates a timing issue inside the module and often coincides with other processor codes such as P0602 through P0606.
Module Trouble Codes on the 2013 Buick Enclave
The following internal trouble codes have been recorded for the 2013 Buick Enclave ECM:
Factory Service Bulletins Worth Knowing
Service bulletin #PIC5696A issued on March 28, 2013 notes a part restriction for the E39A ECM, indicating that the original component has reached the end of its production lifecycle.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | PQC Part Restriction – E39A ECM Has Ended – (Mar 28, 2013) | — |
Protecting the PCM in Your 2013 Buick Enclave
- Maintain a healthy charging system to avoid voltage spikes that can stress the ECM.
- Inspect and clean all ground connections and connector pins regularly.
- Use proper jump‑start procedures to prevent high‑voltage transients.
- Address any diagnostic codes promptly before they cascade.
- Ensure connector seals remain intact to keep moisture out.
- Avoid direct contact with ECM pins to reduce static discharge risk.
Frequently Asked Questions
What are the typical labor hours for replacing the ECM in a 2013 Buick Enclave?
The factory book time lists 0.9 hours for removal and reinstall, plus an additional 0.5 hours for the powertrain control module relearn.
Do I need special equipment to program a new ECM in this vehicle?
Yes, the factory requires the correct program and calibration tools, but a VIN‑programmed unit from Flagship One arrives already calibrated.
Can I reuse the original ECM after it has been removed?
Only if the original unit passes all functional tests and the captured data is reloaded; otherwise a replacement is recommended.
When the ECM in your 2013 Buick Enclave shows signs of failure, you can either have it repaired by a qualified technician or opt for a refurbished replacement that meets factory specifications. Both approaches aim to restore engine control, but a pre‑programmed unit may reduce shop time and eliminate the need for on‑site reprogramming, giving you a quicker return to the road.

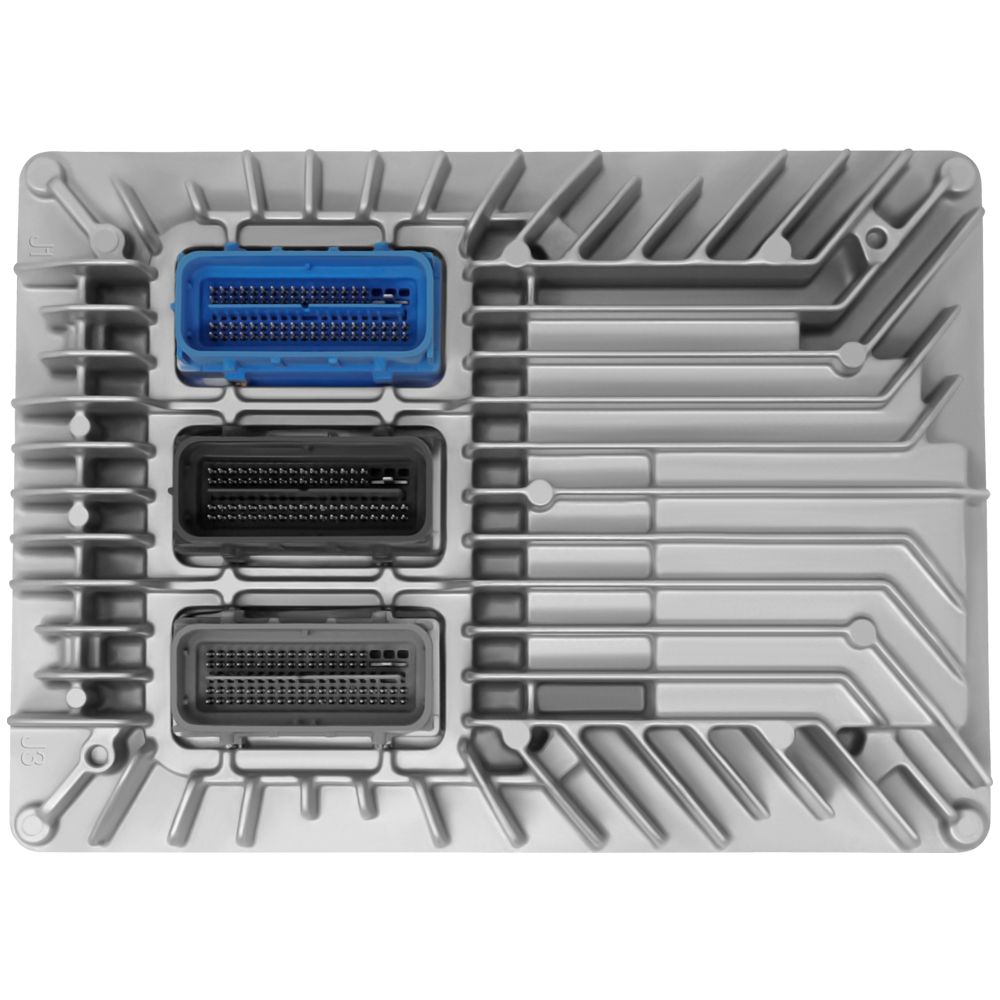

Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 Buick Enclave with a lifetime warranty, free shipping and no core charge. The full Buick Enclave module lineup covers other engine configurations as well.
Final Thoughts
The engine control module is a critical component of the 2013 Buick Enclave, and addressing its issues promptly helps maintain performance and reliability. Whether you choose a repair or a VIN‑programmed replacement, proper handling and programming are essential to get your vehicle back to normal operation.
