2013 Scion xB ECM Replacement: PCM Repair Guide
The Engine Control Module (ECM) on a 2013 Scion xB is the primary processor managing fuel delivery, ignition timing, and emissions systems. When this module fails, the vehicle typically sets internal diagnostic codes and may refuse to start.
Quick Summary
- The 2013 Scion xB uses a 2.4L engine with an ECM that controls critical powertrain functions
- P0606 is a documented module-internal trouble code for this vehicle
- Air cleaner removal is required to access the ECM during replacement
- Factory procedure requires Techstream VIN input if P0630 code is present
- Flagship One replacement units arrive pre-programmed with your VIN
If your 2013 Scion xB has stopped running or is setting engine codes that refuse to clear, the Engine Control Module may be the culprit. The ECM serves as the brain of your vehicle’s powertrain, and when internal diagnostics detect a processor fault, the module often locks out normal operation to prevent potential damage. Many owners facing no-start conditions, intermittent stalling, or persistent check engine lights discover the ECM has developed an internal failure. This guide explains what the ECM does in your specific vehicle, how failure manifests, what the replacement procedure involves, and why pre-programmed replacement units from Flagship One can simplify your repair. Understanding these details helps you make informed decisions about whether to pursue dealer service or a quality aftermarket solution.
What the PCM Does in a 2013 Scion xB
The Engine Control Module in your 2013 Scion xB is the central computer responsible for managing the 2.4L four-cylinder engine’s critical operating parameters. This module continuously monitors inputs from dozens of sensors throughout the powertrain, calculating optimal fuel injector pulse width, ignition coil firing timing, and idle air control positions to maintain smooth operation while meeting emissions requirements. Unlike simpler relay-controlled systems, the ECM on this vehicle uses sophisticated adaptive learning algorithms that adjust calibration values based on real-time sensor feedback and driving conditions. The module also serves as the communication hub for the diagnostic system, storing trouble codes that help technicians identify faults in components ranging from oxygen sensors to mass airflow sensors. When the internal processor or memory circuit detects an unrecoverable error, the ECM may enter a limp-home mode or prevent engine startup entirely. Replacing replacement engine computers for the Scion xB requires matching not only the physical connector configuration but also the vehicle-specific VIN programming to ensure proper immobilizer integration and emissions monitoring compliance.
What Replacing the PCM Involves

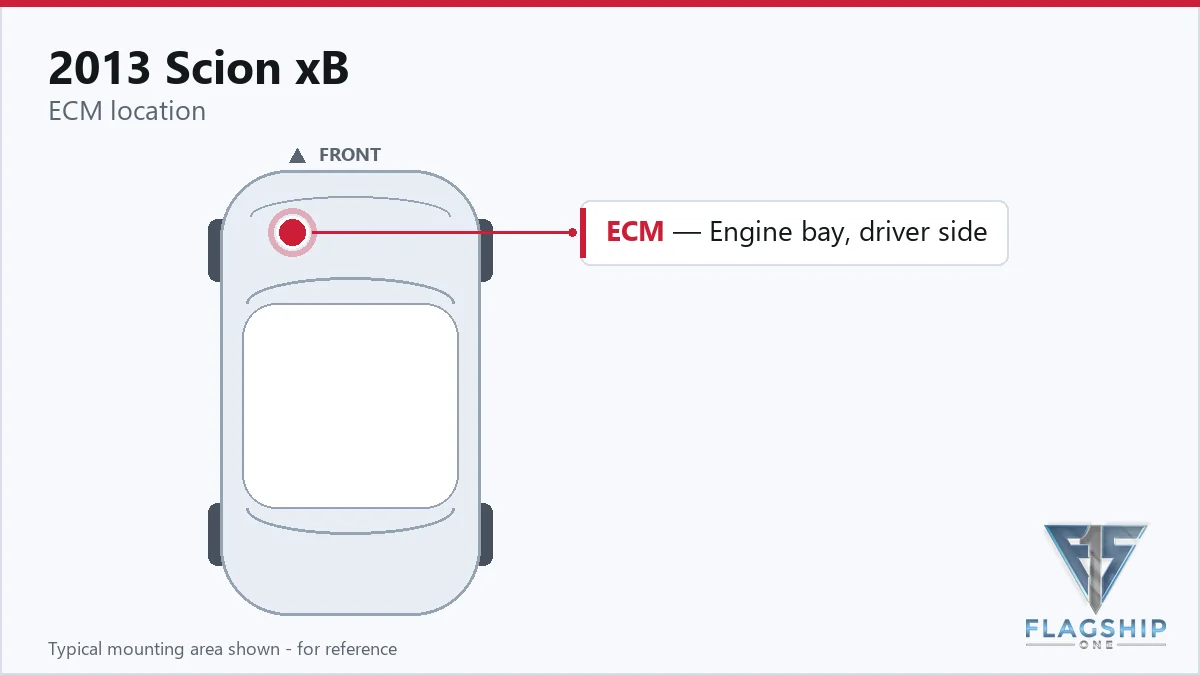

How to Reach the PCM on the 2013 Scion xB
- Remove air cleaner assembly.
- Disconnect the mass air flow meter connector.
- Loosen the No.
- Remove the air cleaner filter element sub-assembly.
- Remove the 3 bolts and remove the air cleaner case sub-assembly.
- Remove the 2 lock knobs and harness clamp.
- Disconnect the 2 ECM connectors.
- Remove the 2 bolts from the ECM.
- Remove the 4 screws and ECM bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
Programming Requirements After Replacement
After replacing the ECM on your 2013 Scion xB, the factory procedure requires VIN input using the Techstream diagnostic tool if trouble code P0630 is stored in the module. This code specifically indicates that the VIN has not been programmed into the ECM, which is a normal condition when installing a new unit. The Techstream procedure automatically clears all diagnostic trouble codes when the VIN is successfully programmed, eliminating the need for a separate clear-codes step. However, if P0630 is not present, the relearn procedure still must be performed to allow the new module to establish its adaptive fuel and timing tables. Flagship One addresses these programming requirements by shipping their replacement units VIN-programmed before shipment, meaning the VIN input step is already completed using your vehicle information. This pre-programming eliminates the need for dealer-only tool access and ensures the replacement unit is ready for installation with minimal additional setup required.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the Engine Control Module fails on a 2013 Scion xB, symptoms typically manifest as no-start conditions or severe drivability issues that appear suddenly. The most common indication of ECM failure is a vehicle that cranks normally but refuses to start, with all dash lights illuminating but the engine showing no signs of catching. Some owners report intermittent stalling episodes that worsen over weeks or months before a complete no-start condition develops. Diagnostic trouble codes stored in the module may include P0606, which indicates an internal processor fault within the ECM itself, along with various sensor-related codes that appear secondary to the primary module failure. Scan tool communication may be inconsistent or impossible if the module has lost the ability to process diagnostic requests. In some cases, the transmission may exhibit harsh shifting or refuse to engage gears because the ECM cannot properly control the electronically-controlled automatic transmission. The processor fault in the control module often triggers a fail-safe mode that limits engine speed and disables certain functions to prevent potential safety issues while driving.
Module Trouble Codes on the 2013 Scion xB
The 2013 Scion xB may store module-internal diagnostic trouble codes when the ECM detects internal processor or memory faults. These codes indicate failures within the control module itself rather than faults in external sensors or wiring, which is why replacement rather than repair is typically required.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2013 Scion xB
- Maintain your vehicle’s charging system by ensuring the alternator output stays within specification—low voltage can stress ECM circuits over time
- Periodically inspect and clean ECM ground connections to prevent voltage irregularities from affecting module operation
- Avoid jump-starting the vehicle if possible, as voltage spikes during boost starts can damage sensitive ECM electronics
- Address any stored trouble codes promptly rather than ignoring warning lights, as minor issues can cascade into module damage
- Keep the ECM connector seals intact and protected from moisture intrusion, especially in areas with high humidity
- Use quality fuel and replace the engine air filter regularly to prevent contaminants from reaching the ECM through the intake system
Frequently Asked Questions
Can I replace the ECM on my 2013 Scion xB with a used unit from a salvage yard?
A used ECM from a salvage vehicle may require VIN programming to match your specific vehicle, and there’s no guarantee the internal processor faults that caused the original unit to fail won’t be present in the replacement. Additionally, some salvage units may have unknown history that could affect long-term reliability.
Why does my 2013 Scion xB need VIN programming after ECM replacement?
The ECM must be programmed with your vehicle’s unique VIN to communicate properly with the immobilizer system and meet emissions reporting requirements. Without correct VIN programming, the engine may not start and the vehicle will fail emissions testing.
Will a new ECM fix my check engine light if it’s showing multiple random sensor codes?
Multiple sensor codes can sometimes indicate a failing ECM that cannot process sensor inputs correctly, but they can also indicate genuine sensor or wiring issues. A thorough diagnosis should verify whether the ECM itself is the root cause before replacement.
Do I need to visit a dealer for ECM programming on my 2013 Scion xB?
The factory procedure requires Techstream for VIN input and relearn, but pre-programmed replacement units from Flagship One arrive with your VIN already loaded, which eliminates the need for dealer programming in most cases.
How long will a replacement ECM last in my 2013 Scion xB?
A quality replacement ECM should provide many years of reliable service, similar to the original equipment lifespan. Proper installation, good electrical connections, and normal vehicle maintenance contribute to long-term reliability.
When facing ECM failure on your 2013 Scion xB, you have two primary repair paths: a genuine dealer-ordered replacement unit with programming requirements, or a quality refurbished unit from Flagship One that arrives VIN-programmed and ready to install. The pre-programmed option eliminates the need for special diagnostic tools and dealer visits, potentially saving significant time and expense while providing equivalent functionality to the original equipment.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 Scion xB with a lifetime warranty, free shipping and no core charge. The full Scion xB module lineup covers other engine configurations as well.
Final Thoughts
The Engine Control Module in your 2013 Scion xB is a sophisticated computer that manages critical engine functions, and when it fails, the vehicle will not operate normally. Whether you choose dealer service or a pre-programmed replacement unit, understanding the location, programming requirements, and symptoms helps ensure a successful repair. Flagship One offers VIN-programmed replacement modules specifically configured for the 2013 Scion xB, backed by technical support to assist with your installation.
