2012 Scion xB ECM and PCM Replacement Guide
In the 2012 Scion xB, the Powertrain Control Module and Engine Control Module serve as the central computers managing engine and transmission operations. When these modules fail, they often trigger internal malfunction codes, which may lead to starting issues or poor performance.
Quick Summary
- The control module in the 2012 Scion xB is situated adjacent to the air cleaner assembly.
- Removing and reinstalling the Engine Control Module typically requires 0.6 hours of labor.
- An Engine Control Module relearn procedure generally takes 0.5 hours to complete.
- Diagnostic trouble code P0630 requires VIN input via Techstream, which automatically clears all DTCs.
- Code P0606 is documented as an internal module malfunction for this vehicle.
When the engine computer in your 2012 Scion xB begins to malfunction, it often disrupts vital powertrain functions and triggers frustrating dashboard warning lights. Understanding how this computer operates, where it is located, and what replacement entails can remove much of the uncertainty from the repair process. The powertrain and engine control modules in your vehicle serve as the central processing units for various sensors and actuators, constantly adjusting fuel delivery, ignition timing, and emissions controls. A failure within one of these units may result in noticeable drivability symptoms, ranging from intermittent stalling to a complete no-start condition. This guide outlines the specific details regarding module replacement for the 2012 Scion xB, including factory labor times, physical location, and the necessary programming steps. By reviewing these details, you will gain a clear picture of what the repair involves and how to address module-related trouble codes effectively.
What the PCM Does in a 2012 Scion xB
The Powertrain Control Module and Engine Control Module in the 2012 Scion xB serve as the primary electronic brains governing how the 2.4L engine operates. These computers continuously process data from an array of engine sensors, calculating the precise fuel injector pulse width and ignition timing required for optimal combustion. Beyond managing the engine, the module also oversees transmission shifting characteristics and monitors various emissions control devices to ensure the vehicle complies with environmental standards. When these units function correctly, your vehicle runs smoothly and efficiently, balancing power output with fuel economy. However, internal circuit failures can compromise these calculations, leading to noticeable performance degradation. If the unit experiences a critical internal fault, replacing it with 2012 Scion xB replacement engine computers becomes necessary to restore proper vehicle operation. These modules do not simply control isolated systems; they integrate throttle position, oxygen sensor readings, and coolant temperature into a cohesive strategy that dictates how the 2.4L engine behaves under varying loads. Because of this deep integration, a faulty unit rarely causes a single isolated symptom, often resulting in a cascade of drivability issues and diagnostic trouble codes.
Where the PCM Is Located and What Replacement Involves

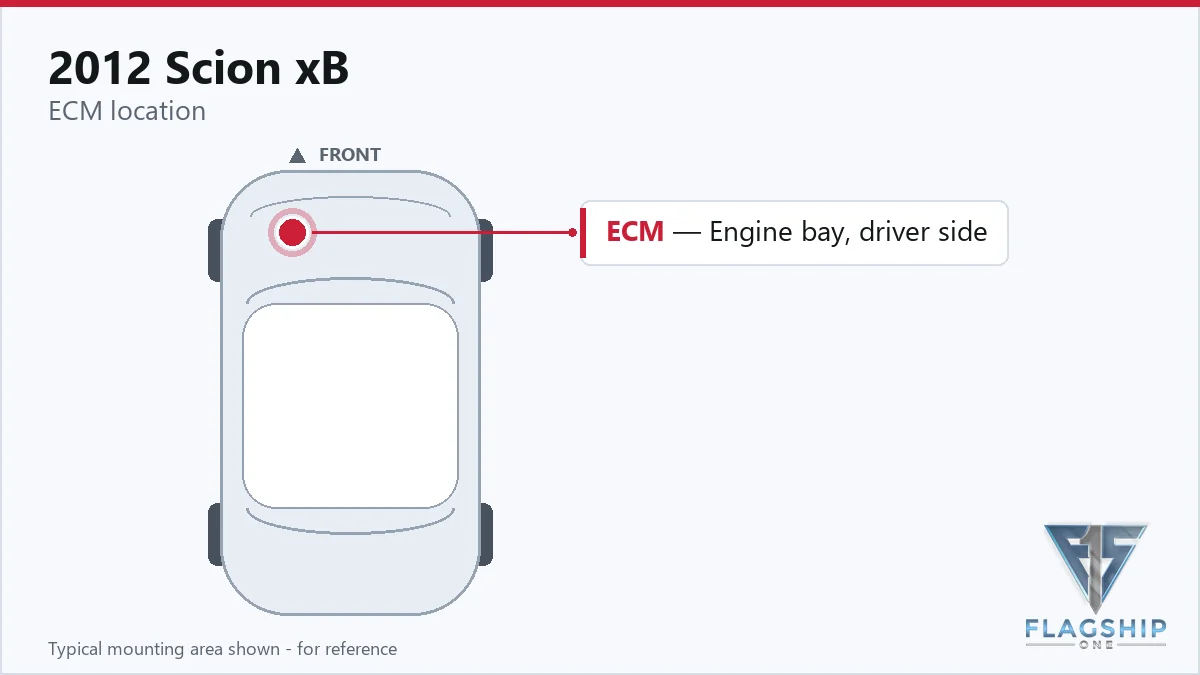

In the 2012 Scion xB, the factory removal procedure indicates that you will find the control module positioned next to the air cleaner assembly. To access the unit, the air cleaner assembly must be removed. This placement keeps the module sheltered within the engine bay but still easily accessible once the air intake components are set aside. Regarding labor, the book time for removing and reinstalling the Powertrain Control Module is 0.6 hours, while the Engine Control Module R&R carries an identical 0.6-hour time allocation. After the physical swap, completing an Engine Control Module relearn procedure typically requires an additional 0.5 hours. These standard times help estimate the total time a technician may spend on the repair, though actual times can vary depending on shop conditions and tool availability.
How to Reach the PCM on the 2012 Scion xB
- Remove air cleaner assembly.
- Disconnect the mass air flow meter connector.
- Loosen the No.
- Remove the air cleaner filter element sub-assembly.
- Remove the 3 bolts and remove the air cleaner case sub-assembly.
- Remove the 2 lock knobs and harness clamp.
- Disconnect the 2 ECM connectors.
- Remove the 2 bolts from the ECM.
- Remove the 4 screws and ECM bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
Programming Requirements After Replacement
Following the physical installation of a new module, the factory procedure for the 2012 Scion xB requires specific software configuration. If diagnostic trouble code P0630 is present, the vehicle identification number must be written into the new unit using the Techstream diagnostic system. During this VIN input process, the Techstream software automatically clears all stored diagnostic trouble codes from the module. Failing to complete this programming step will prevent the vehicle from starting or running correctly. Fortunately, choosing a VIN-programmed replacement unit from Flagship One means the software initialization and vehicle identification steps are already completed before the part ships. This pre-programming service eliminates the need for Techstream access during installation, allowing your vehicle to start immediately after the module is plugged in.
Symptoms of a Failing PCM
When the engine computer in your 2012 Scion xB begins to fail, the symptoms often manifest as significant drivability disruptions. A failing module may cause the engine to crank without starting, or it may lead to unexpected stalling while driving at low speeds or coming to a stop. Misfire codes frequently appear on diagnostic scanners, even when the ignition system and fuel injectors are functioning normally. In many cases, the check engine light will illuminate, and communication with a scan tool may become intermittent or fail entirely. Transmission shifting irregularities can also occur, as the computer controls shift points and torque converter lockup. Internal processor failures, such as an internal module malfunction, can trigger these widespread issues because the unit can no longer accurately process sensor data or control actuators. Additionally, you may notice decreased fuel economy or rough idling, as the computer struggles to maintain the correct air-fuel ratio. Because these symptoms overlap with many other mechanical and electrical issues, confirming a module failure often requires thorough diagnostic testing to rule out faulty sensors or wiring harness problems first.
Module Trouble Codes on the 2012 Scion xB
The 2012 Scion xB may log specific diagnostic trouble codes that point directly to internal failures within the engine computer. Understanding these codes helps differentiate between a sensor issue and a module that requires replacement.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2012 Scion xB
- Maintain your charging system health by testing the battery and alternator output regularly, as low voltage can stress the module.
- Inspect and clean chassis grounds and engine wiring harness connectors periodically to prevent voltage drops and erratic module behavior.
- Avoid jump-starting other vehicles with your 2012 Scion xB, as voltage spikes from the assisting vehicle can damage delicate internal circuits.
- Address illuminated check engine lights and stored trouble codes promptly to prevent prolonged module stress from underlying engine issues.
- Keep the wiring harness connector seals intact and free from corrosion, as moisture intrusion can short the module pins.
- Never disconnect the battery while the engine is running, as this can generate a damaging voltage surge through the electrical system.
Frequently Asked Questions
Where is the engine control module located in the 2012 Scion xB?
The module is situated adjacent to the air cleaner assembly in the engine bay. You must remove the air cleaner assembly to access and replace the unit.
What labor time is required to replace the Powertrain Control Module on a 2012 Scion xB?
The standard book time for removing and reinstalling the Powertrain Control Module is 0.6 hours. An additional 0.5 hours is typically required to perform the relearn procedure.
What does diagnostic trouble code P0630 mean for my 2012 Scion xB?
Code P0630 indicates that the vehicle identification number is not properly programmed into the engine control module. Resolving this requires inputting the VIN using the Techstream diagnostic tool, which also clears other stored codes.
Does a new engine computer require programming for the 2012 Scion xB?
Yes, the factory procedure requires programming the VIN into the module using Techstream if code P0630 is stored. However, a VIN-programmed unit from Flagship One arrives with this step already completed.
What are the symptoms of an internal module failure like P0606?
An internal module malfunction often causes a no-start condition, stalling, misfire codes, or dead scan-tool communication. These symptoms occur because the processor can no longer calculate engine parameters correctly.
When facing a module failure in your 2012 Scion xB, choosing between a dealer repair and a refurbished replacement depends on your budget and timeline. A pre-programmed unit eliminates the need for dealership software tools, getting your vehicle back on the road faster.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Scion xB with a lifetime warranty, free shipping and no core charge. The full Scion xB module lineup covers other engine configurations as well.
Final Thoughts
Addressing engine computer issues in your 2012 Scion xB requires understanding the module location, replacement times, and programming needs. By recognizing the symptoms and codes associated with internal failures, you can approach the repair confidently and ensure your vehicle operates reliably once again.
