2009 Scion xB PCM/ECM Replacement Guide: Symptoms, Location, Programming
The engine control module (ECM) in the 2009 Scion xB is the main computer managing fuel, ignition, and emissions. Failure can cause no-start, stalling, poor performance, and trigger diagnostic trouble codes P0604 (internal RAM error) or P0606 (internal processor fault).
Quick Summary
- ECM is located in the engine compartment per factory electrical component locator.
- Replacement book time is 0.6 hours for ECM R&R and 0.5 hours for ECM relearn.
- Factory service bulletin S-SB-0003-10 specifies a Techstream ECU flash reprogramming procedure.
- Module-internal codes P0604 and P0606 indicate internal ECM faults.
- Zero point calibration is required after wheel alignment adjustments.
If your 2009 Scion xB with the 2.4L engine is experiencing intermittent stalling, hard starting, or check-engine lights, the engine control module (ECM) may be at fault. The ECM is the central computer that manages fuel delivery, ignition timing, and emissions controls. When it fails, the vehicle may not run properly or at all. This guide explains what the ECM does in your Scion xB, where it is located, what symptoms to watch for, and what the replacement process involves. You will also learn about the factory programming requirements and how a pre-programmed replacement unit can simplify the repair. Understanding these details helps you make an informed decision about repairing or replacing the module.
What the PCM Does in a 2009 Scion xB
The engine control module (ECM) in the 2009 Scion xB is a sophisticated computer that continuously monitors sensors and adjusts engine operation for optimal performance and emissions. It controls fuel injectors, ignition coils, throttle actuator, and variable valve timing. The ECM also communicates with other modules like the transmission control module and body control module via the CAN bus. In this vehicle, the ECM is critical for driveability and fuel economy. When it fails, the engine may run poorly or not start. If you need a replacement, consider replacement ECMs for the Scion xB that are pre-programmed to match your vehicle’s VIN. The ECM is designed to last the life of the car, but electrical issues, heat, or moisture can cause internal damage. Recognizing early symptoms can prevent a complete breakdown.
Where the PCM Is Located and What Replacement Involves

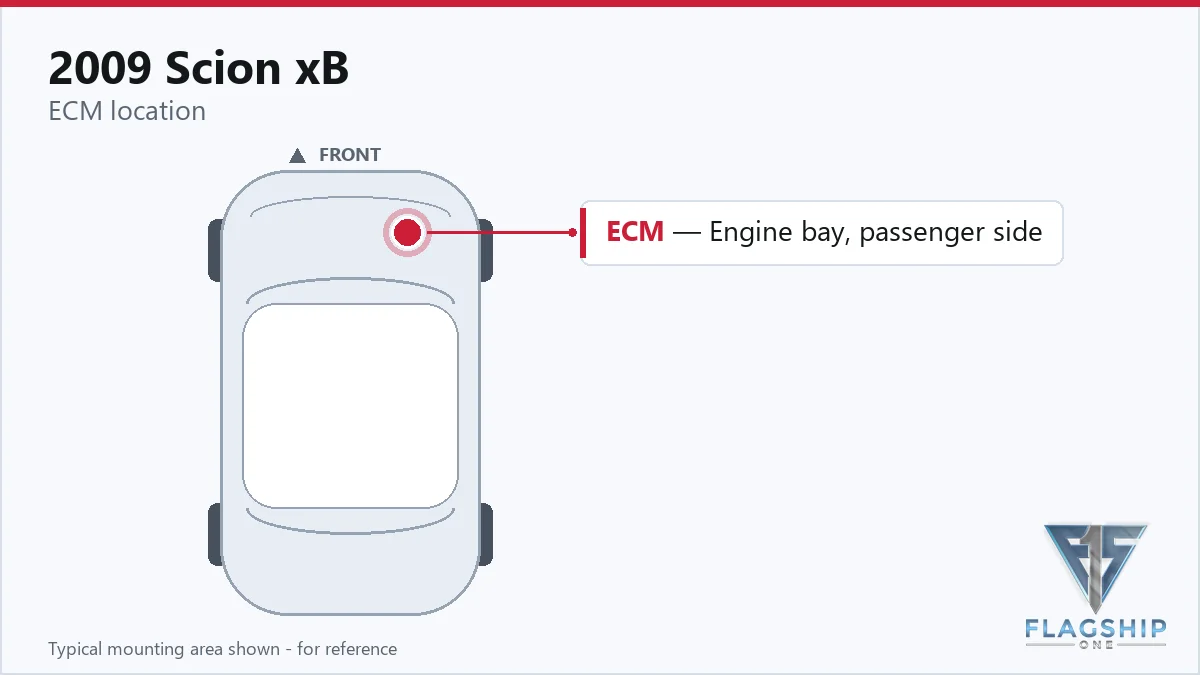

The factory electrical component locator places the engine control module in the engine compartment of the 2009 Scion xB. It is typically mounted on the passenger side near the firewall or on the inner fender. Access may require removing the air cleaner housing or other components. The book time for ECM removal and replacement is 0.6 hours. An additional 0.5 hours is allowed for the ECM relearn procedure, which involves using a scan tool to reset adaptive values. No torque specifications are provided in the available data, but standard practice is to tighten mounting bolts securely. The module is connected via a multi-pin harness connector that should be inspected for corrosion or bent pins during replacement.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
Programming Requirements After Replacement
After replacing the ECM in the 2009 Scion xB, the factory service bulletin S-SB-0003-10 requires a Techstream ECU flash reprogramming procedure. This involves connecting a diagnostic tool to update the module’s software and calibrate it to the vehicle. Additionally, the battery must be disconnected and a zero point calibration performed after any wheel alignment adjustment. These steps ensure the ECM communicates correctly with other systems. However, when you purchase a VIN-programmed replacement unit from Flagship One, the module arrives with the correct software already loaded. This eliminates the need for the Techstream flash procedure, saving time and the cost of dealer programming. The relearn procedure may still be needed to reset adaptive values.
Symptoms of a Failing PCM
A failing ECM in the 2009 Scion xB can cause a variety of driveability issues. The engine may crank but not start, or it may start and stall shortly after. You might notice rough idle, hesitation during acceleration, or misfires that do not follow a specific cylinder. The check engine light may illuminate with codes like internal RAM error or P0606, which indicate internal module faults. Other symptoms include loss of communication with a scan tool, erratic transmission shifting, or the vehicle entering a limp-home mode. Electrical problems such as blown fuses or battery drain can also occur. Because the ECM controls many systems, symptoms can mimic other failures, so proper diagnosis is essential.
Module Trouble Codes on the 2009 Scion xB
The following module-internal trouble codes are documented for the 2009 Scion xB: P0604 and P0606. These codes indicate faults within the ECM itself rather than external sensors or circuits.
| Code | Meaning | Full Guide |
|---|---|---|
| P0604 | Internal RAM error | Full P0604 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Factory service bulletin S-SB-0003-10, dated 04-11, applies to applicable Scion vehicles including the 2009 xB. It describes the Techstream ECU flash reprogramming procedure, which updates the ECM software to address certain driveability concerns. Additionally, the vehicle requires disconnecting the battery and performing a zero point calibration after any wheel alignment adjustment. This calibration ensures the steering angle sensor and other systems are properly synchronized. Following these procedures is important for correct vehicle operation after ECM replacement or alignment work.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | 04-11 Applicable Scion Vehicles: Techstream ECU Flash Reprogramming Procedure | — |
| — | Disconnect Battery & Perform Zero Point Calibration After Wheel Alignment Adjustment | — |
Protecting the PCM in Your 2009 Scion xB
- Maintain the charging system; a failing alternator can send voltage spikes that damage the ECM.
- Keep engine ground straps and ECM connector terminals clean and tight to ensure good electrical contact.
- Avoid jump-starting the vehicle with reversed polarity or using a high-voltage booster pack without surge protection.
- Address any diagnostic trouble codes promptly, especially P0604 or P0606, before they lead to complete module failure.
- Inspect the ECM connector seal and housing for cracks or moisture intrusion, especially after engine bay washing.
- Use only a quality battery that holds proper voltage; a weak battery can cause erratic ECM behavior.
Frequently Asked Questions
Where is the ECM located on a 2009 Scion xB?
The ECM is located in the engine compartment, typically on the passenger side near the firewall or inner fender. The factory electrical component locator confirms this placement. Access may require removing the air cleaner housing.
What book time is allowed for ECM replacement on a 2009 Scion xB?
The labor time for ECM removal and replacement is 0.6 hours. An additional 0.5 hours is allowed for the ECM relearn procedure. These times are based on factory labor guides.
Do I need to reprogram the ECM after replacing it on a 2009 Scion xB?
Yes, the factory service bulletin S-SB-0003-10 requires a Techstream ECU flash reprogramming procedure. However, if you purchase a VIN-programmed replacement unit from Flagship One, the software is already loaded, eliminating the need for that step.
What do trouble codes P0604 and P0606 mean on a 2009 Scion xB?
P0604 indicates an internal random access memory (RAM) error within the ECM. P0606 indicates an internal processor fault. Both point to a failed module that typically requires replacement.
Can a bad ECM cause transmission shifting problems on a 2009 Scion xB?
Yes, because the ECM communicates with the transmission control module. If the ECM fails or sends incorrect data, the transmission may shift erratically, delay shifts, or enter limp-home mode.
When your 2009 Scion xB ECM fails, you have two main options: repair the original module or replace it with a refurbished unit. Repair may be possible for some internal faults, but often replacement is more reliable. A refurbished ECM from Flagship One is tested and pre-programmed to your vehicle’s VIN, saving you the cost and hassle of dealer programming. This model-specific solution ensures proper fit and function.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Scion xB with a lifetime warranty, free shipping and no core charge. The full Scion xB module lineup covers other engine configurations as well.
Final Thoughts
The engine control module in your 2009 Scion xB is a vital component that manages engine performance. Recognizing symptoms like no-start, stalling, or codes P0604/P0606 can help you address issues early. Replacement is straightforward with a book time of 0.6 hours, and a pre-programmed unit from Flagship One eliminates the need for factory flash programming. Keep your Scion xB running reliably with the right ECM solution.
