2013 GMC Savana Powertrain Control Module Overview
In the 2013 GMC Savana the Powertrain Control Module (PCM) manages engine and transmission commands. A failure typically disrupts fuel delivery, shift timing, and diagnostic communication, leading to loss of power, rough shifting, or a illuminated check engine light.
Quick Summary
- PCM removal and install time ranges from 0.6 to 1.9 hours depending on engine size.
- Relearn procedures for Savana 1500, 2500, and 3500 each require about half an hour.
- Factory service bulletins address harsh shift codes and calibration identification.
- Flagship One units arrive pre‑programmed, eliminating post‑install data capture.
When a 2013 GMC Savana exhibits erratic shifting, stalling, or persistent check‑engine warnings, the Powertrain Control Module often deserves a closer look. This guide explains what the PCM does, how it is accessed, and what steps are required to replace it safely. You’ll understand the labor effort involved, the programming prerequisites, and how a VIN‑programmed replacement can simplify the process.
What the PCM Does in a 2013 GMC Savana
The Powertrain Control Module in the 2013 GMC Savana acts as the central brain for engine and transmission functions, interpreting sensor data to control fuel, timing, and gear changes. It stores calibration data and communicates with other control units to maintain emissions compliance. Proper operation is essential for reliable performance, and a malfunction can trigger multiple diagnostic codes. Selecting a suitable replacement engine computers for Savana ensures compatibility with the vehicle’s Duramax diesel system.
Where the PCM Is Located and What Replacement Involves
The PCM is mounted within the engine compartment and is accessed by removing a few fasteners. Labor times listed in the service guide show 0.6 hours for the 4.3L version, 1.8 hours for the 5.3L, 6.0L, and 4.8L variants, and 1.9 hours for the 6.6L model found in your Savana. After detaching the electrical connectors, the module can be withdrawn and a new unit installed using the same fasteners. A separate relearn step of 0.5 hours is required for each vehicle weight class—1500, 2500, or 3500.

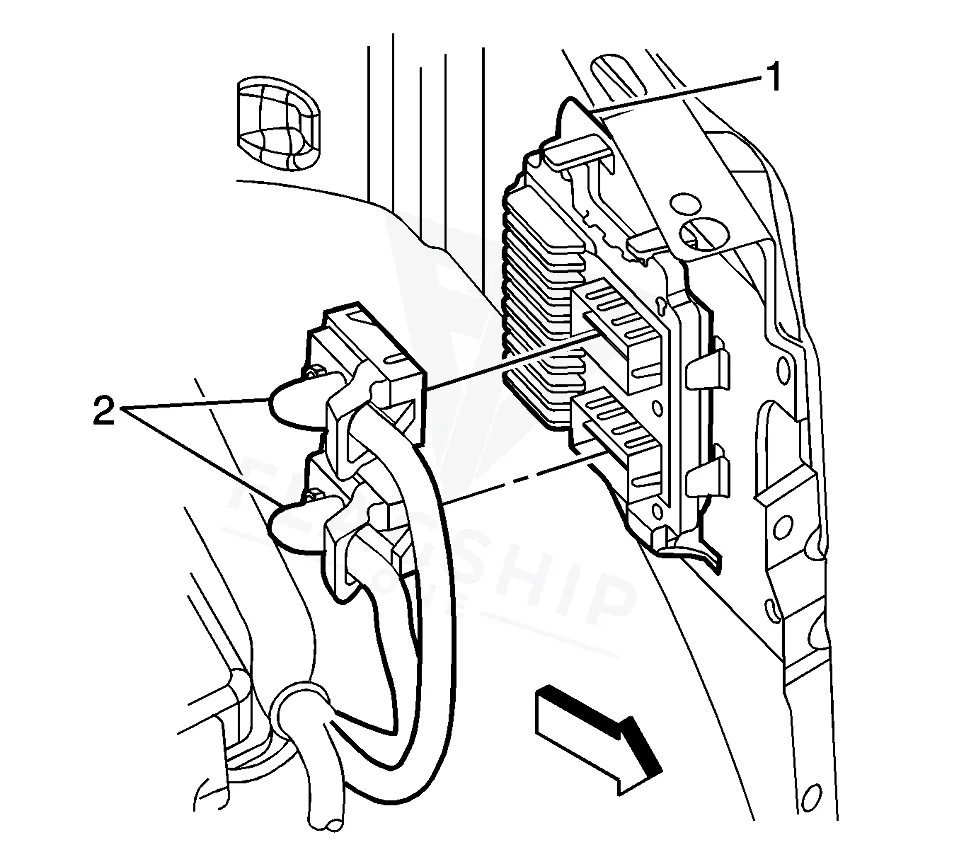

How to Reach the PCM on the 2013 GMC Savana
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the ECM mounting bolts.
- Release the ECM upper retaining tabs.
- Disconnect the ECM electrical connectors.
- Remove the ECM from the bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 4.3L | 0.6 hr |
| Powertrain Control Module R&R | 5.3L | 1.8 hr |
| Powertrain Control Module R&R | 6.0L | 1.8 hr |
| Powertrain Control Module R&R | 6.6L | 1.9 hr |
| Powertrain Control Module R&R | 4.8L | 1.8 hr |
| Powertrain Control Module Relearn | Savana 1500 | 0.5 hr |
| Powertrain Control Module Relearn | Savana 2500 | 0.5 hr |
| Powertrain Control Module Relearn | Savana 3500 | 0.5 hr |
Programming Requirements After Replacement
Factory guidelines require a scan tool to capture the ECM data before the original unit is removed, then a re‑learn after installation. A Flagship One a VIN-programmed replacement unit arrives already loaded with the correct calibration, so the data capture and re‑learn steps are completed during the swap, streamlining the repair.
Symptoms of a Failing PCM
Typical signs of a PCM problem in a 2013 GMC Savana include no‑start conditions, unexpected stalling, rough idle, and shift‑related fault codes. You may also see a loss of communication with the scan tool, making diagnostics difficult. When the module fails, codes such as processor communication fault often appear, indicating internal processing issues.
Module Trouble Codes on the 2013 GMC Savana
The following internal diagnostic codes have been recorded for the 2013 GMC Savana PCM:
Factory Service Bulletins Worth Knowing
Service bulletin #PIP5084A notes that harsh shift illumination and MIL codes P0716 or P0717 may be present in the transmission control module. Bulletin #08-06-04-006 and its revision provide guidance on identifying non‑GM ECM calibrations and verifying calibration IDs on Duramax engines. Bulletin #13102 addresses an emission‑related ECU calibration recall.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Harsh Shift Illuminated MIL DTC P0716 And Or P0717 May Be Current Or In History In The TCM – (J | — |
| 08-06-04-006 | Information for Identifying Non-GM ECM Calibration Use and Power-up Hardware Detection in Duram | — |
| — | Product Emission Recall – Electronic Control Unit (ECU) Calibration – (May 1, 2013) | — |
Protecting the PCM in Your 2013 GMC Savana
- Maintain a healthy charging system to avoid voltage fluctuations.
- Keep ground straps and connector pins clean and tightly secured.
- Use proper jump‑start techniques to prevent voltage spikes.
- Address any diagnostic codes promptly before they worsen.
- Inspect connector seals regularly to keep moisture out.
Frequently Asked Questions
What causes the PCM to lose communication in a 2013 GMC Savana?
Loss of communication can result from corrupted calibration data, poor electrical connections, or a failing internal processor. Checking grounds and connector integrity is the first step.
Do I need to perform a PCM relearn after replacement on a Savana 2500?
Yes, a standard relearn of approximately 0.5 hours is required for the 2500 model to synchronize the new module with the vehicle’s systems.
Can a VIN‑programmed replacement PCM eliminate the need for a scan‑tool data capture?
When the replacement arrives pre‑programmed, the factory data capture step is already satisfied, simplifying the install.
When the PCM in your 2013 GMC Savana needs attention, you can choose a brand‑new factory unit or a refurbished, VIN‑programmed replacement. Both options restore the vehicle’s powertrain control, but a pre‑programmed unit saves time by removing the data‑capture and relearn steps, letting you get back on the road faster.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 GMC Savana with a lifetime warranty, free shipping and no core charge. The full GMC Savana module lineup covers other engine configurations as well.
Final Thoughts
The Powertrain Control Module is vital to the 2013 GMC Savana’s performance and emissions compliance. Whether you opt for a new or refurbished unit, ensuring proper installation and programming will keep your van running smoothly. Consider a VIN‑programmed replacement to reduce downtime.
