2012 GMC Savana Engine Control Module Replacement Guide
The Engine Control Module in a 2012 GMC Savana manages fuel delivery, boost pressure, and emissions for the 6.6L Duramax. A malfunction can disrupt engine timing, cause loss of power, or trigger the MIL, often requiring the module to be removed and replaced.
Quick Summary
- Replacement labor for the 6.6L ECM is typically 1.9 hours.
- A relearn procedure of 0.5 hours is required after installation.
- Factory programming notes advise capturing ECM data before removal.
- Service bulletins address DTC P2610 and non‑GM calibration issues.
When a 2012 GMC Savana experiences erratic performance or a persistent MIL, the engine control module is a common culprit. This guide explains what the ECM does, how to access it, the labor involved, and the programming steps required after a swap. By the end, you will understand the expected repair time, the importance of proper data capture, and how a VIN‑programmed replacement can simplify the process.
What the PCM Does in a 2012 GMC Savana
The Engine Control Module in the 2012 GMC Savana coordinates fuel injection, turbo boost, and emission controls for the 6.6L Duramax engine. It constantly monitors sensor inputs and adjusts engine parameters to maintain performance and compliance. Because the vehicle relies on precise timing, a faulty ECM can lead to loss of power or MIL illumination. Proper operation is essential for reliable driving, and replacement engine computers for the 2012 GMC Savana are designed to meet the same specifications.

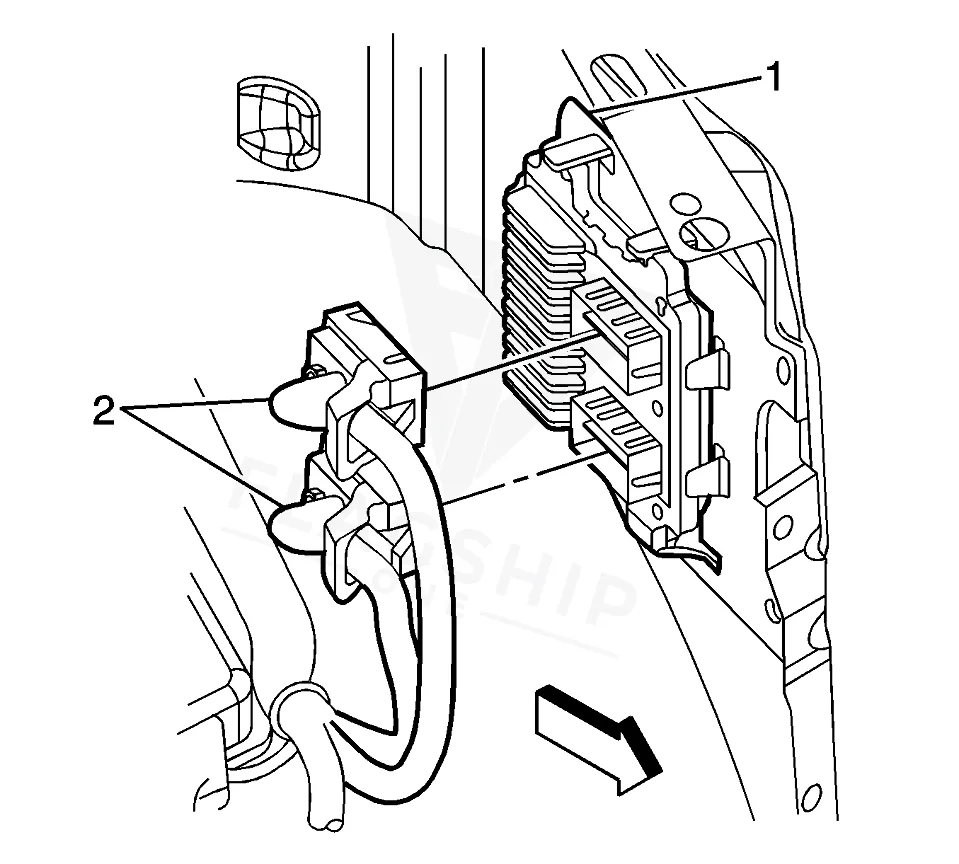

Where the PCM Is Located and What Replacement Involves
The ECM is mounted in the engine compartment of the 2012 GMC Savana, typically near the firewall. Removal requires disconnecting the wiring harness and any mounting bolts, then extracting the unit. Reinstallation follows the reverse order, with a recommended labor time of 1.9 hours for the 6.6L version. After the module is secured, a relearn procedure of 0.5 hours is needed for the specific Savana weight class, whether 1500, 2500, or 3500.
How to Reach the PCM on the 2012 GMC Savana
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the ECM mounting bolts.
- Release the ECM upper retaining tabs.
- Disconnect the ECM electrical connectors.
- Remove the ECM from the bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 4.3L | 0.6 hr |
| Powertrain Control Module R&R | 5.3L | 1.8 hr |
| Powertrain Control Module R&R | 6.0L | 1.8 hr |
| Powertrain Control Module R&R | 6.6L | 1.9 hr |
| Powertrain Control Module R&R | 4.8L | 1.8 hr |
| Powertrain Control Module Relearn | Savana 1500 | 0.5 hr |
| Powertrain Control Module Relearn | Savana 2500 | 0.5 hr |
| Powertrain Control Module Relearn | Savana 3500 | 0.5 hr |
Programming Requirements After Replacement
Factory service requires a scan tool to capture all ECM data before the unit is removed, then a relearn after installation. Flagship One supplies a VIN‑programmed replacement, so the capture and relearn steps are already completed. This means you can install the unit and complete the 0.5‑hour relearn without additional programming, using a VIN‑programmed replacement unit directly.
Symptoms of a Failing PCM
Typical signs of a failing ECM in a 2012 GMC Savana include a no‑start condition, intermittent stalling, unexpected power loss, and the MIL staying illuminated. You may also see communication loss with scan tools or erratic transmission shifts. When the module reports internal errors, you might retrieve codes such as processor internal memory error, indicating a deeper fault within the ECM itself.
Module Trouble Codes on the 2012 GMC Savana
The following trouble codes are commonly stored by the engine control module in this vehicle:
Factory Service Bulletins Worth Knowing
Bulletin #PI0597 (Oct 27, 2011) addresses DTC P2610 related to the ignition off timer performance and MIL behavior. Bulletin #08-06-04-006 and #08-06-04-006L (Jan 25, 2013) provide guidance on identifying non‑GM ECM calibrations in Duramax engines. Bulletin #PIP4798H (Jul 12, 2013) outlines parts restrictions for 6.6L Duramax ECMs for 2012 and 2013 model years.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Engine Control Module DTC P2610 (Control Module Ignition Off Timer Performance) Setting Malfunc | — |
| 08-06-04-006 | Information for Identifying Non-GM ECM Calibration Use and Power-up Hardware Detection in Duram | — |
| — | 2012 and 2013 6.6L Duramax Engine Control Module Parts Restriction – (Jul 12, 2013) | — |
Protecting the PCM in Your 2012 GMC Savana
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean ground connections regularly.
- Use surge protectors when jump‑starting to limit voltage spikes.
- Address diagnostic codes promptly before they worsen.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
Can a 2012 GMC Savana run with a faulty ECM?
The vehicle may start, but performance will be erratic, and the MIL will likely stay illuminated. Continuing to drive can cause further damage.
Do I need special tools to replace the ECM in a 2012 GMC Savana?
Standard hand tools and a compatible scan tool for data capture are sufficient. No proprietary equipment is required for removal.
How long does the relearn process take after installing a new ECM?
The factory procedure specifies about 0.5 hours for the relearn, depending on the Savana weight class.
When the ECM needs attention, you can choose a new factory‑spec unit or a refurbished replacement. Both options require the same removal steps, but a refurbished unit from Flagship One arrives VIN‑programmed, eliminating the need for post‑install data capture and reducing shop time.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 GMC Savana with a lifetime warranty, free shipping and no core charge. The full GMC Savana module lineup covers other engine configurations as well.
Final Thoughts
Replacing the engine control module in a 2012 GMC Savana restores proper engine management and clears persistent fault codes. Consider a VIN‑programmed replacement to simplify the process and get back on the road faster.
