2015 GMC Savana 6.6L PCM Replacement Guide
The Powertrain Control Module in a 2015 GMC Savana 6.6L coordinates engine and transmission functions. A failure can result in erratic shifting, misfires, or a complete loss of engine power.
Quick Summary
- PCM replacement time: 1.9 hours.
- ECM relearn is 0.5 hours.
- Capture ECM data before removal.
- Avoid reprogramming while fuel composition learn is active.
If your 2015 GMC Savana 6.6L is experiencing unexplained stalling, misfires, or shifting problems, the Powertrain Control Module might be at fault. This guide explains what the PCM does, why it matters, and how to replace it efficiently. You’ll learn the steps, expected labor, and how Flagship One’s VIN‑programmed units simplify the process.
What the PCM Does in a 2015 GMC Savana
The PCM controls engine timing, fuel delivery, and transmission shift logic in the 2015 GMC Savana 6.6L. It continuously exchanges data with the Engine Control Module and sensors to maintain optimal performance. replacement Powertrain Control Module for the 2015 GMC Savana ensures that the vehicle runs smoothly and that diagnostic trouble codes are cleared.

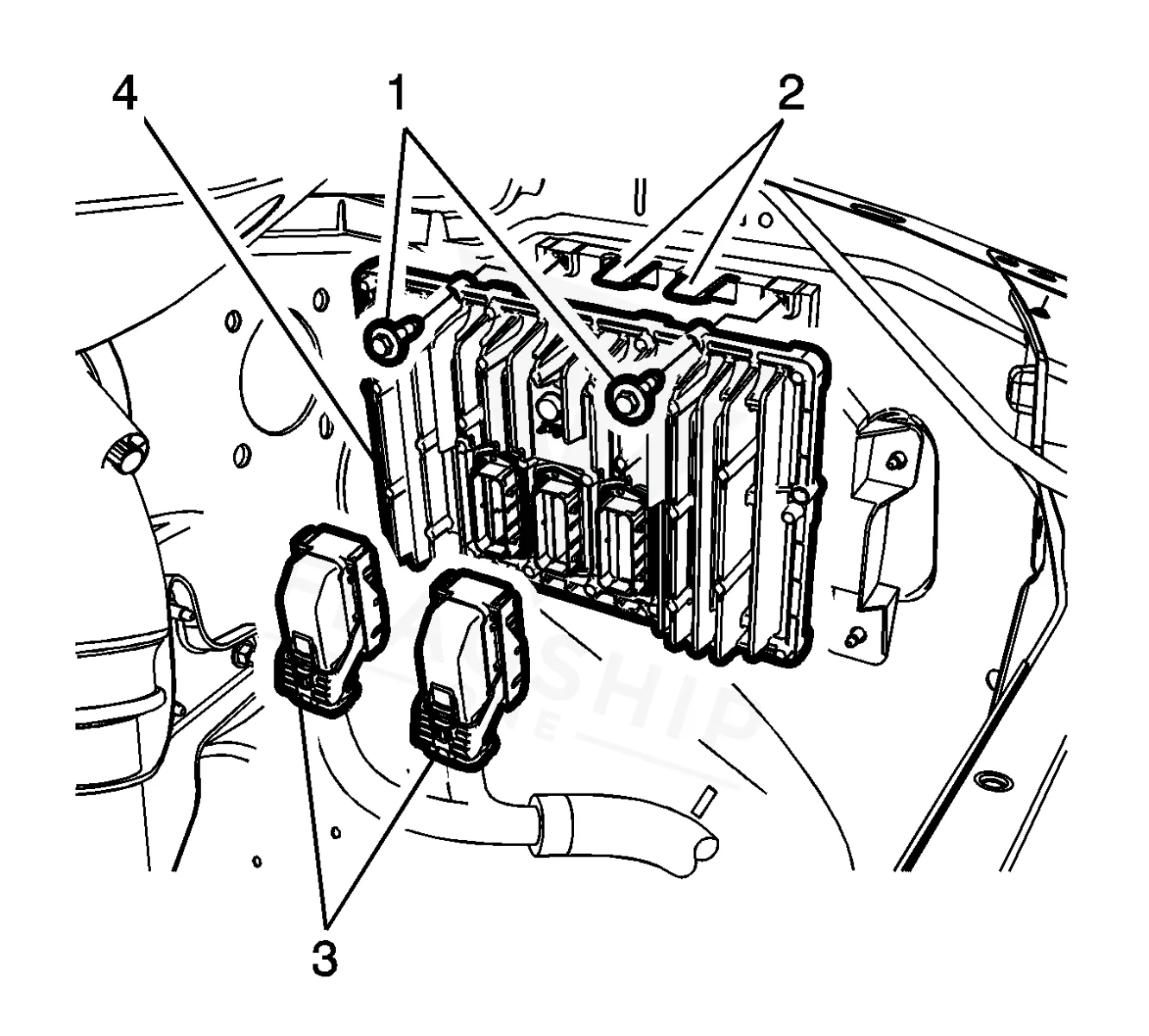

Where the PCM Is Located and What Replacement Involves
The PCM is located in the engine bay near the front of the vehicle, attached to the firewall. Replacement requires removing a few mounting bolts and disconnecting electrical connectors. The labor book time is 1.9 hours, which includes removal and installation steps as specified in the service manual.
How to Reach the PCM on the 2015 GMC Savana
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the ECM mounting bolts.
- Release the ECM upper retaining tabs.
- Disconnect the ECM electrical connectors.
- Remove the ECM from the bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 6.0L | 1.8 hr |
| Powertrain Control Module R&R | 6.6L | 1.9 hr |
| Powertrain Control Module R&R | 4.8L | 1.8 hr |
| Powertrain Control Module Relearn | Light Duty | 0.5 hr |
| Powertrain Control Module Relearn | Medium/Heavy Truck | 0.5 hr |
| Engine Control Module Relearn | Light Duty | 0.5 hr |
| Engine Control Module Relearn | Medium/Heavy Truck | 0.5 hr |
| Engine Control Module Reset | Light Duty | 0.3 hr |
Programming Requirements After Replacement
After the PCM is installed, the factory procedure requires a relearn of the engine control module. Flagship One units arrive VIN‑programmed, so this relearn step is already completed. VIN‑programmed replacement unit will communicate with the vehicle’s diagnostics and set all parameters automatically.
Symptoms of a Failing PCM
Common signs of a failing PCM in a 2015 GMC Savana 6.6L include stalling at idle, sudden loss of power, and erratic shifting. The vehicle may also display codes such as Powertrain Control Module Communication Failure or other internal PCM errors. If the scan tool shows dead or intermittent communication, the PCM is likely the culprit.
Module Trouble Codes on the 2015 GMC Savana
The following internal trouble codes can appear when the PCM is malfunctioning in a 2015 GMC Savana 6.6L:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P060B | Module-internal fault | — |
| P061C | Module-internal fault | — |
| P062F | Internal EEPROM error | Full P062F guide → |
| P1621 | Control module long-term memory performance | Full P1621 guide → |
Factory Service Bulletins Worth Knowing
Two relevant service bulletins apply: #14‑06‑04‑003 and #14‑06‑04‑003A address non‑GM ECM calibration detection, while #17‑NA‑242 warns against reprogramming a module with its current calibration.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 14-06-04-003 | Identifying Non-GM ECM Calibration Use and Power-up Hardware Detection in Duramax Diesel Engine | — |
| — | Information on Changes to SPS that Warn/Prohibit Reprogramming a Module With Its Current Calibr | — |
Protecting the PCM in Your 2015 GMC Savana
- Maintain a healthy charging system to avoid voltage drops.
- Keep all electrical connectors clean and free of corrosion.
- Use a surge protector when jump‑starting to prevent voltage spikes.
- Respond promptly to any trouble codes to reduce wear.
- Inspect connector seals for integrity during routine checks.
Frequently Asked Questions
Will my 2015 GMC Savana 6.6L need a new PCM if it shows misfire codes?
Misfire codes can stem from many sources, but if the PCM itself fails to communicate or shows internal PCM codes, a replacement is warranted.
Does the PCM replacement affect my warranty on the 2015 GMC Savana 6.6L?
Standard manufacturer warranties cover PCM issues that arise under normal operating conditions; however, aftermarket replacements should be verified for warranty compatibility.
How long does it take to reinstall a PCM in a 2015 GMC Savana 6.6L?
The labor book time for replacement is 1.9 hours, which includes removal, installation, and basic checks.
Whether you opt for a repair or a refurbished replacement, you can rely on a 2015 GMC Savana 6.6L PCM that meets factory specifications. The VIN‑programmed units from Flagship One eliminate extra programming steps, giving you confidence that the module will function as intended.

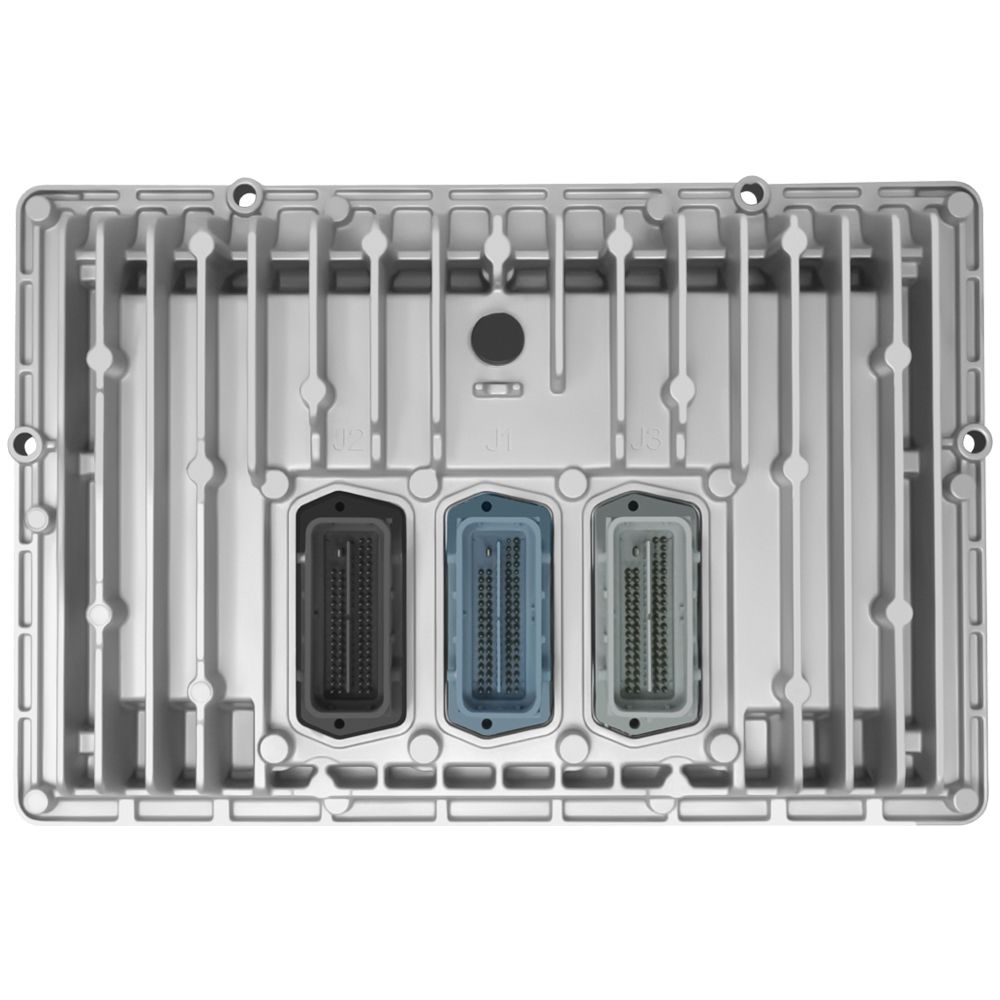

Flagship One stocks a refurbished, VIN-programmed PCM for the 2015 GMC Savana with a lifetime warranty, free shipping and no core charge. The full GMC Savana module lineup covers other engine configurations as well.
Final Thoughts
A 2015 GMC Savana 6.6L with a reliable PCM will keep your vehicle running smoothly. Consider the replacement options and keep your engine control systems healthy.
