2012 Mazda MX-5 Miata PCM/ECM Replacement: What You Need to Know
The powertrain control module (PCM), also called the engine control module (ECM), is the primary computer managing fuel delivery, ignition timing, and emissions for the 2012 Mazda MX-5 Miata’s 2.0L engine. Internal memory faults or communication loss can lead to driveability problems and prevent the vehicle from starting.
Quick Summary

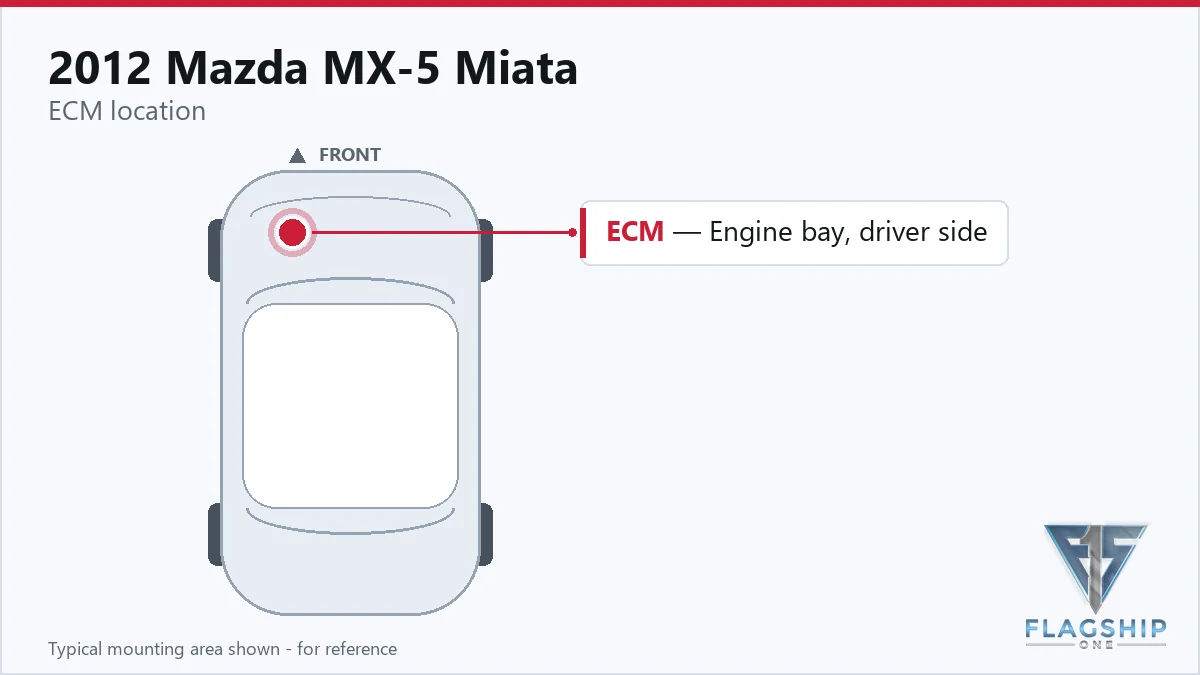

- The PCM/ECM is located next to the air cleaner assembly.
- Book time for removal and replacement is 0.7 hours.
- A separate 0.5-hour relearn procedure is required after installation.
- Internal trouble codes like P0601, P0603, P0604, and U0100 indicate module failure.
- A VIN-programmed replacement from Flagship One eliminates the need for dealer-level relearn.
When a 2012 Mazda MX-5 Miata develops hard-starting, intermittent stalling, or a check engine light that points to internal control module errors, the engine computer may be at fault. This guide explains what the PCM/ECM does, how to confirm a failure, and what a replacement involves. You will learn about the module’s location, the straightforward removal process, and the factory-required relearn procedure. You will also see how a pre-programmed unit can save time and avoid a trip to the dealership. The information is based on standard service data for the 2.0L Miata, so you can make an informed decision without guesswork.
What the PCM Does in a 2012 Mazda MX-5 Miata
The engine control module in the 2012 Mazda MX-5 Miata is the central processor that interprets sensor inputs—such as crankshaft position, airflow, and oxygen content—to command fuel injectors, ignition coils, and variable valve timing. It also monitors emissions and communicates with other modules over the CAN bus. When the PCM develops internal memory corruption or circuit faults, the engine may run poorly or refuse to start. A reliable replacement is essential to restore factory performance. Many owners turn to replacement engine computers for the 2012 Mazda MX-5 Miata that arrive pre-configured, avoiding complex programming steps. Without a functioning module, the Miata’s precise throttle response and fuel economy suffer, and the vehicle may fail an emissions test.
What Replacing the PCM Involves
How to Reach the PCM on the 2012 Mazda MX-5 Miata
- Remove the battery cover.
- Disconnect the negative battery cable.
- Remove the air cleaner case.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a replacement engine control module, the factory procedure for the 2012 Mazda MX-5 Miata requires a relearn process to sync the unit with the vehicle’s security system and sensor calibrations. This step typically takes 0.5 hours of labor. However, when you order a VIN-programmed replacement unit from Flagship One, the module arrives with your vehicle’s VIN and immobilizer data already loaded. That means the relearn is already completed, and you can skip the 0.5-hour dealer procedure. The unit is ready to plug in and start the engine immediately, saving both time and the cost of a separate programming visit.
Symptoms of a Failing PCM
A failing PCM in the 2012 Mazda MX-5 Miata often triggers a no-start condition, intermittent stalling, or rough idling. You may notice the check engine light illuminated with codes that point to internal module faults, such as internal control module memory checksum error. Other signs include poor fuel economy, hesitation under acceleration, and a complete loss of communication with a scan tool. Because the module controls critical engine functions, even minor glitches can cause the transmission to shift erratically or the engine to die while driving. If you experience these issues and basic diagnostics rule out sensors and wiring, the PCM itself is a likely culprit.
Module Trouble Codes on the 2012 Mazda MX-5 Miata
The following diagnostic trouble codes are documented for the 2012 Mazda MX-5 Miata’s engine control module. They indicate internal processor faults or communication errors that typically require module replacement rather than a simple sensor repair.
Protecting the PCM in Your 2012 Mazda MX-5 Miata
- Keep the battery and charging system in good condition; low voltage can corrupt module memory.
- Inspect and clean ground connections near the PCM to prevent erratic signals.
- Avoid jump-starting with high-voltage boosters that may spike the module’s circuits.
- Address check engine lights promptly to prevent cascading module damage.
- Ensure the PCM connector seals are intact to keep out moisture and debris.
Frequently Asked Questions
How do I know if the PCM is the problem in my 2012 Mazda MX-5 Miata?
If you retrieve codes P0601, P0603, P0604, or U0100 and have ruled out wiring and sensor issues, the PCM is likely faulty. A no-start condition with no communication to a scan tool also points to module failure. Professional diagnosis with a compatible scanner is recommended to confirm.
Can I install a used PCM from another 2012 MX-5 Miata?
A used PCM will not work without reprogramming the VIN and immobilizer data to match your vehicle. Even then, internal wear may cause future problems. A refurbished unit that is pre-programmed to your VIN is a more reliable solution.
What is the book time to replace the engine computer on a 2012 Mazda MX-5 Miata?
The labor guide lists 0.7 hours for removal and replacement. An additional 0.5 hours is specified for the relearn procedure, but that step is not needed if you install a pre-programmed module.
Replacing the engine computer on a 2012 Mazda MX-5 Miata can be done with basic hand tools, but the factory relearn procedure often requires a professional scan tool. A refurbished module that arrives already programmed to your VIN eliminates that extra step, letting you complete the job in under an hour. This approach restores factory driveability without the cost or wait of a dealership visit.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Mazda MX-5 Miata with a lifetime warranty, free shipping and no core charge. The full Mazda MX-5 Miata module lineup covers other engine configurations as well.
Final Thoughts
A faulty PCM in a 2012 Mazda MX-5 Miata can be resolved with a direct replacement. By choosing a VIN-programmed unit, you avoid the separate relearn procedure and get back on the road quickly. Whether you tackle the job yourself or have a shop handle it, understanding the process helps you make a confident repair decision.
