2010 Mazda MX-5 Miata PCM and ECM Replacement Guide
In the 2010 Mazda MX-5 Miata, the Powertrain Control Module (PCM) and Engine Control Module (ECM) manage fuel delivery, ignition timing, and emission functions. A failure typically disables engine start, causes erratic idle, or triggers internal processor fault codes, requiring module removal and relearn procedures.
Quick Summary
- PCM/ECM failures can prevent the Miata from starting or cause intermittent stalling.
- Factory removal accesses the module beside the air cleaner assembly.
- Replacement labor is quoted at 0.7 hours for removal and 0.5 hours for relearn.
- Flagship One units arrive pre‑programmed, eliminating post‑install coding.
When a 2010 Mazda MX-5 Miata exhibits no‑start conditions or unusual diagnostic codes, the powertrain and engine control modules are often the culprits. Understanding how these computers function, where they sit, and what steps are required after a swap helps you avoid unnecessary downtime. This guide walks you through the module’s role, its location, the labor involved, and how Flagship One’s pre‑programmed replacements simplify the process.
What the PCM Does in a 2010 Mazda MX-5 Miata
The PCM and ECM in the 2010 Mazda MX-5 Miata act as the vehicle’s central nervous system, interpreting sensor data to control fuel injection, spark timing, and emissions. They also coordinate transmission shifting in models equipped with an automatic gearbox. A malfunction can interrupt these signals, leading to loss of power or complete engine shutdown. Proper operation is essential for performance and emissions compliance, and engine control modules for Miata are designed to meet these exacting standards.

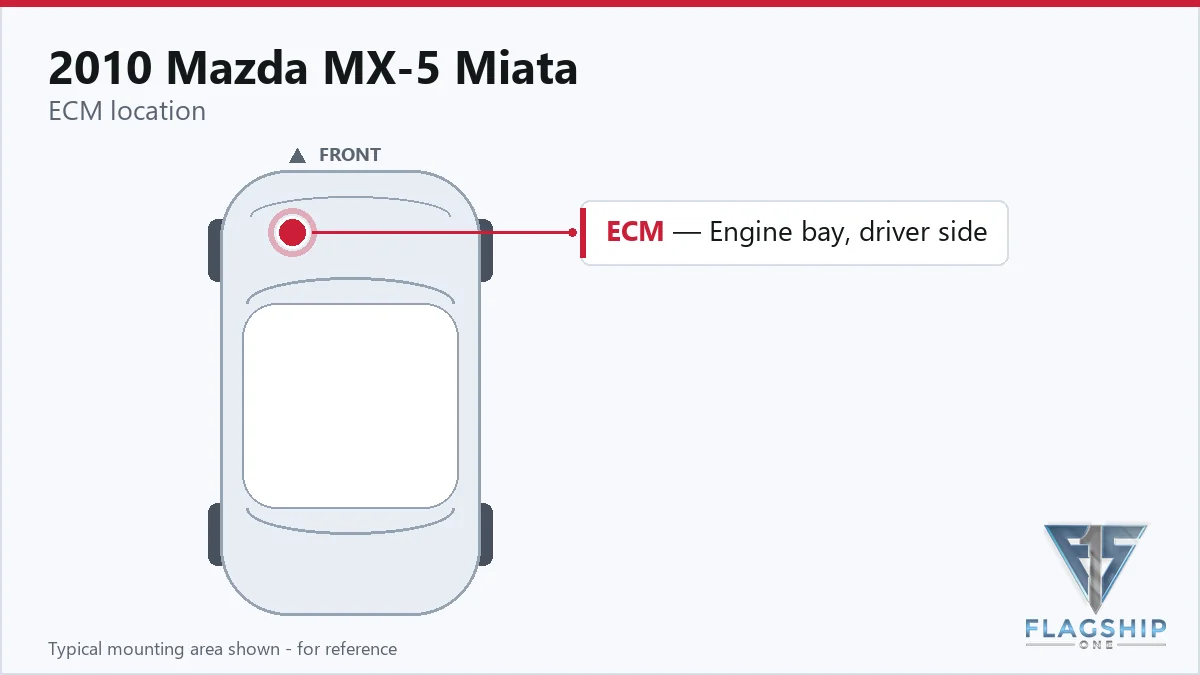

Where the PCM Is Located and What Replacement Involves
In the Miata, the control module is positioned next to the air cleaner assembly, making it reachable without removing major drivetrain components. Removal typically follows the factory procedure, which includes disconnecting the electrical connector, unbolting the mounting hardware, and extracting the unit. Labor is estimated at 0.7 hours for the removal and reinstallation steps, while the subsequent relearn process adds another 0.5 hours. No additional torque specifications are provided in the source data.
How to Reach the PCM on the 2010 Mazda MX-5 Miata
- Remove the battery cover.
- Disconnect the negative battery cable.
- Remove the air cleaner case.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After a new PCM or ECM is installed, the factory service routine calls for a relearn operation to synchronize the module with the vehicle’s existing sensors and transmission. Flagship One supplies units that are already VIN‑programmed, so the required relearn step is completed before the part reaches you. This eliminates the need for a separate programming session, and a VIN-programmed replacement unit ensures the module is ready for immediate use.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in the 2010 Mazda MX-5 Miata include a complete no‑start condition, intermittent stalling, erratic idle, and loss of communication with a scan tool. Drivers may also notice unexpected gear‑shift behavior in automatic models. When the internal processor fault occurs, the diagnostic system often logs PCM internal processor fault, which points directly to a module issue.
Module Trouble Codes on the 2010 Mazda MX-5 Miata
The following diagnostic trouble codes are commonly associated with PCM or ECM failures in this vehicle:
Protecting the PCM in Your 2010 Mazda MX-5 Miata
- Maintain a healthy charging system to avoid voltage spikes.
- Inspect and clean ground connections regularly.
- Use proper jump‑start techniques to protect module inputs.
- Address any stored codes promptly before they recur.
- Ensure connector seals remain intact to prevent moisture ingress.
Frequently Asked Questions
Can a 2010 Mazda MX-5 Miata run with a faulty PCM?
In most cases the engine will not start or will run erratically because the PCM controls essential fuel and ignition functions.
Do I need special tools to reinstall the ECM in a Miata?
The factory procedure relies on standard hand tools for bolts and connectors; no specialized programming equipment is required if the replacement is VIN‑programmed.
How long does the relearn process take after installing a new module?
The relearn step is typically billed at 0.5 hours and involves running the vehicle through a set of predefined conditions to calibrate the new computer.
When the PCM or ECM in your 2010 Mazda MX-5 Miata needs attention, you can choose a repair that restores the original hardware or opt for a refurbished replacement that meets factory specifications. Both approaches address the underlying issue, but a Flagship One unit offers the convenience of pre‑programming, reducing shop time and potential errors.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Mazda MX-5 Miata with a lifetime warranty, free shipping and no core charge. The full Mazda MX-5 Miata module lineup covers other engine configurations as well.
Final Thoughts
For owners of a 2010 Mazda MX-5 Miata, addressing PCM or ECM failures promptly restores reliable performance. Consider a Flagship One replacement to simplify installation and eliminate post‑fit coding, then get back on the road with confidence.
