2008 Mazda MX-5 Miata PCM & ECM Replacement Overview Labor Times Included
In the 2008 Mazda MX-5 Miata, the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery, and emissions. A failure typically disrupts sensor communication, leading to diagnostic trouble codes and loss of driveability. Replacing a defective unit restores the vehicle’s electronic control functions.
Quick Summary
- Powertrain and engine modules each require 0.7 hours for removal and 0.5 hours for relearn.
- Factory removal reaches the control module beside the air cleaner assembly.
- Common service bulletins address MIL illumination, AC odor, and emissions codes.
When a 2008 Mazda MX-5 Miata exhibits intermittent warning lights or erratic engine behavior, the onboard control modules are often the focus. This guide explains what the PCM and ECM do, where they sit, and what labor is involved in swapping them. You will understand the required post‑install steps and how Flagship One units simplify the process.
What the PCM Does in a 2008 Mazda MX-5 Miata
The PCM and ECM in a 2008 Mazda MX-5 Miata coordinate fuel injection, ignition timing, and emissions monitoring to keep the engine running smoothly. They translate sensor data into commands that manage throttle response and emissions output, making them essential for performance and compliance. replacement engine computers for the MX-5 ensure the vehicle meets factory specifications after a failure.

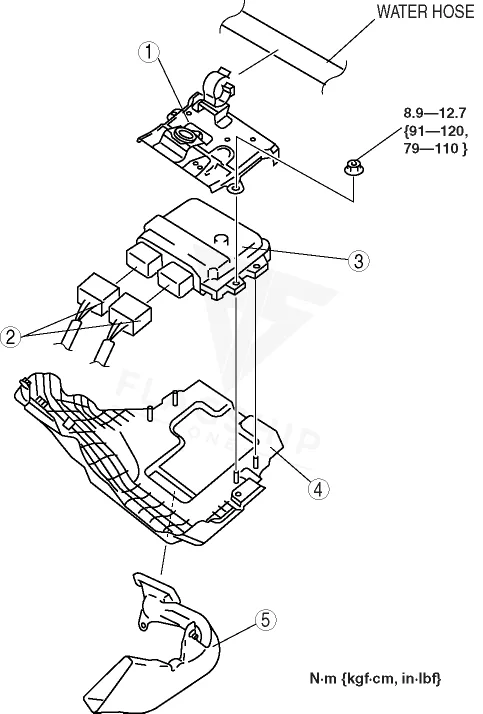

Where the PCM Is Located and What Replacement Involves
The control modules are positioned adjacent to the air cleaner assembly, allowing access without major disassembly. Removing the unit typically follows the factory procedure, which guides you to the module’s mounting location. Labor times are listed as 0.7 hours for the removal and replacement of each module, followed by a 0.5‑hour relearn step to synchronize the new unit with the vehicle’s systems.
How to Reach the PCM on the 2008 Mazda MX-5 Miata
- Remove the battery cover.
- Disconnect the negative battery cable.
- Remove the air cleaner case.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module, the factory process calls for a PCM or ECM relearn lasting 0.5 hours to calibrate the system. Flagship One parts arrive pre‑programmed to the vehicle’s VIN, so that a VIN-programmed replacement unit eliminates the need for additional coding on the shop floor.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2008 Mazda MX-5 Miata include a steady or flashing MIL, rough idle, and loss of power. You may also see communication failures with diagnostic tools or unexpected stalling. One documented fault is code P0601 indicating processor error, which points to internal processor issues within the module.
Module Trouble Codes on the 2008 Mazda MX-5 Miata
The following trouble codes are commonly stored inside the PCM and ECM of this model:
Factory Service Bulletins Worth Knowing
Bulletin 01 036/08 covers MIL illumination with code P0507 for models from 2006‑2008. Bulletin 07 002/09 addresses a musty or mildew odor from the air‑conditioning system. Bulletin 01 003/09 describes MIL illumination linked to DTC P0441 across multiple models.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | 01 036/08 2006 2008 Mx 5 Mt MIL On P0507 Set | — |
| — | 07 002/09 Multi Model Air Conditioning Musty / Mildew Odor | — |
| — | 01 003/09 Multi Model MIL Illumination DTC P0441 | — |
Protecting the PCM in Your 2008 Mazda MX-5 Miata
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean all ground connections and module connectors regularly.
- Avoid high‑voltage spikes from improper jump‑starts.
- Promptly diagnose and clear any stored trouble codes.
- Ensure connector seals remain intact to prevent moisture intrusion.
Frequently Asked Questions
Can a failing PCM cause my 2008 Mazda MX-5 Miata to stall while driving?
Yes, the PCM controls fuel and ignition timing, so a fault can lead to sudden stalls or loss of power. Diagnosing with a scan tool helps confirm the issue.
Is the ECM relearn required after installing a new unit in a 2008 MX-5 Miata?
Factory guidelines specify a relearn procedure lasting about half an hour to synchronize the new ECM with the vehicle’s sensors and control logic.
Do the service bulletins for the 2008 MX-5 Miata address PCM‑related warning lights?
Bulletin 01 036/08 specifically mentions MIL illumination with a P0507 code, which can be related to PCM operation.
When the PCM or ECM in your 2008 Mazda MX-5 Miata needs attention, you can choose a brand‑new repair or a refurbished replacement. Both options restore the vehicle’s electronic control functions, but a refurbished unit from Flagship One offers a cost‑effective solution with factory‑level programming.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2008 Mazda MX-5 Miata with a lifetime warranty, free shipping and no core charge. The full Mazda MX-5 Miata module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in a 2008 Mazda MX-5 Miata can return your car to reliable operation. Consider your repair options and ensure the proper post‑install steps are followed for lasting results.
