2012 Ford Expedition Powertrain and Engine Control Module Replacement Overview
In the 2012 Ford Expedition, the Powertrain Control Module and Engine Control Module manage engine timing, transmission shifting, and emissions. Failure of either unit can cause loss of power, stalling, or illumination of the MIL, often accompanied by the P0606 code indicating internal communication trouble.
Quick Summary
- PCM removal typically requires about 0.8 hours of labor.
- ECM removal also averages 0.8 hours of work.
- Relearn procedures add roughly 0.5 hours for each module.
- Factory service bulletins address specific calibration and sensor codes.
When a 2012 Ford Expedition begins to exhibit no‑start conditions, erratic shifting, or persistent diagnostic codes, the powertrain and engine control modules are likely suspects. Understanding how these computers operate, what the factory recommends for removal and reinstall, and how Flagship One products simplify the process can help you make an informed decision. This guide walks you through the essential steps, expected labor, and programming requirements so you know exactly what to expect during service.
What the PCM Does in a 2012 Ford Expedition
The Powertrain Control Module in the 2012 Ford Expedition oversees fuel delivery, ignition timing, and transmission control, while the Engine Control Module focuses on engine sensor data and emissions compliance. Together they ensure the vehicle runs smoothly and meets regulatory standards. A malfunction can disrupt powertrain coordination, leading to drivability problems. Selecting a quality replacement, such as replacement engine computers for Expedition, helps maintain the vehicle’s performance and reliability.
Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM are mounted within the engine compartment of the 2012 Ford Expedition. Removal typically follows the factory book times of 0.8 hours for each unit. Access may require disconnecting battery cables and unplugging harnesses before the modules can be extracted. Reinstallation mirrors the removal steps, and each relearn procedure—PCM and ECM—adds an additional 0.5 hours of calibrated programming to complete the service.

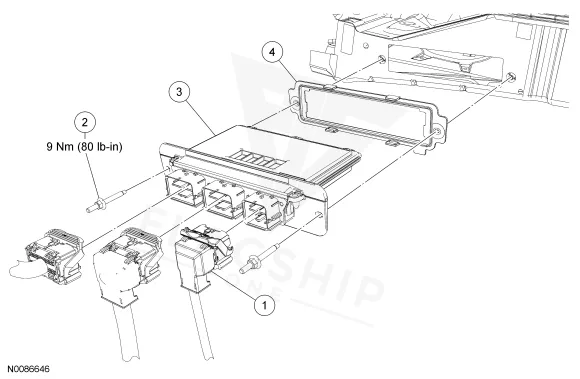

How to Reach the PCM on the 2012 Ford Expedition
- Disconnect the battery ground cable.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 stud bolts and the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure calls for flashing the EEPROM VID block as described in Section 2 of the service manual. Flagship One supplies a a VIN-programmed replacement unit that arrives pre‑loaded, eliminating the need for on‑site VID programming and reducing the overall service time.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2012 Ford Expedition include engine no‑start, rough idle, stalling, and transmission shift delays. Diagnostic scans often reveal the internal fault code communication fault, indicating a breakdown in module communication. Additional symptoms may involve illuminated MIL and reduced fuel efficiency.
Module Trouble Codes on the 2012 Ford Expedition
The following internal diagnostic code is commonly reported for this vehicle when the control modules experience issues:
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Service Bulletin 11-10-06 addresses an A/C inoperative condition on vehicles built on or before 9/21/2011 and requires a calibration update. Bulletin 13-05-07 covers MIL illumination linked to sensor codes P0135 and P0155 for units built on or before 11/31/2011.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 11-10-06 | A/C INOPERATIVE – BUILT ON OR BEFORE 9/21/2011 – CALIBRATION UPDATE | — |
| 13-05-07 | BUILT ON OR BEFORE 11/31/2011 – DTCS P0135 AND P0155 – MALFUNCTION INDICATOR LAMP (MIL) ILLUMIN | — |
Protecting the PCM in Your 2012 Ford Expedition
- Maintain a healthy charging system to avoid voltage drops.
- Keep connector pins and grounds clean and corrosion‑free.
- Avoid jump‑start spikes that can damage module circuitry.
- Address diagnostic codes promptly to prevent escalation.
- Inspect and replace worn connector seals as needed.
Frequently Asked Questions
What are the typical labor times for replacing the PCM on a 2012 Ford Expedition?
Factory labor guides estimate about 0.8 hours to remove and replace the Powertrain Control Module, plus an additional 0.5 hours for the required relearn procedure.
Does the 2012 Ford Expedition require special programming after installing a new ECM?
Yes, the factory procedure calls for flashing the EEPROM VID block, but a VIN‑programmed Flagship One unit eliminates this step.
Which service bulletins should I be aware of when troubleshooting PCM or ECM issues on my Expedition?
Bulletins 11-10-06 and 13-05-07 address known calibration and sensor code problems for vehicles built before late 2011.
When the PCM or ECM fails on a 2012 Ford Expedition, you can choose a professionally rebuilt unit or a new Flagship One replacement. Both options restore the vehicle’s control functions, but a VIN‑programmed replacement streamlines the post‑install process, reducing shop time and potential for error.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Ford Expedition with a lifetime warranty, free shipping and no core charge. The full Ford Expedition module lineup covers other engine configurations as well.
Final Thoughts
Replacing the Powertrain or Engine Control Module in your 2012 Ford Expedition can resolve a range of drivability issues. Consider a VIN‑programmed Flagship One unit to simplify the required programming steps and get your vehicle back on the road quickly.
