2014 Ford Expedition PCM and ECM Replacement Guide Procedure Overview
In the 2014 Ford Expedition, the Powertrain Control Module (PCM) and Engine Control Module (ECM) are the central computers that monitor and command engine and transmission functions. A failure typically stems from internal circuitry degradation, voltage spikes, or persistent fault codes such as P0606, leading to erratic performance or a complete loss of driveability.
Quick Summary
- PCM removal and reinstall generally requires 0.8 hours of labor.
- ECM replacement also averages 0.8 hours according to the service guide.
- Both modules need a relearn procedure of 0.5 hours each after installation.
- The documented fault code for this vehicle is P0606.
When a 2014 Ford Expedition begins to exhibit stalling, poor acceleration, or a persistent diagnostic trouble code, the underlying cause often points to the vehicle’s control computers. Understanding how the Powertrain Control Module and Engine Control Module operate, what their replacement entails, and the post‑install steps can save you time and prevent unnecessary components from being discarded. This guide walks you through the function of each module, the exact labor times involved, the programming requirements, and practical steps to keep the new unit performing reliably. By the end, you’ll know what to expect during a swap, how to verify a successful install, and which maintenance habits can extend the life of your replacement.
What the PCM Does in a 2014 Ford Expedition
The Powertrain Control Module in a 2014 Ford Expedition serves as the brain for both the engine and transmission, interpreting sensor data and issuing commands to maintain optimal performance. It constantly adjusts fuel delivery, ignition timing, and shift points based on inputs from the throttle position sensor, mass airflow sensor, and transmission speed sensors. Meanwhile, the Engine Control Module focuses specifically on engine management, handling air‑fuel mixture, emissions controls, and idle stability. Together, they ensure the vehicle meets performance and emissions standards under a wide range of driving conditions. A malfunction can cause rough idle, loss of power, or a complete no‑start condition, making timely replacement essential. The vehicle relies on these computers to coordinate complex systems, and any degradation in their internal circuitry can trigger fault codes like P0606. Selecting the correct 2014 Ford Expedition replacement PCM ensures compatibility with the vehicle’s wiring harness and software architecture, preserving drivability and fuel efficiency.
What Replacing the PCM Involves

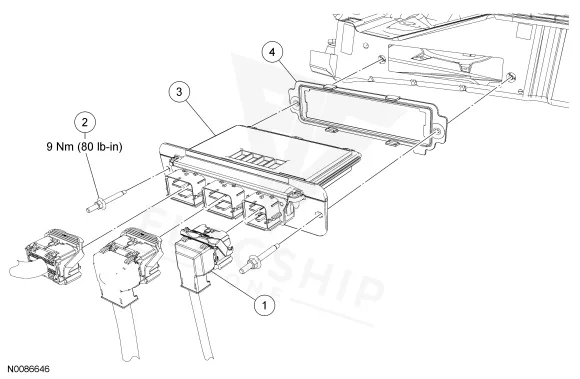

How to Reach the PCM on the 2014 Ford Expedition
- Disconnect the battery ground cable.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 stud bolts and the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
Programming Requirements After Replacement
Following the installation of a new PCM or ECM in the 2014 Ford Expedition, the factory protocol calls for a relearn process that lasts 0.5 hours per module. This step re‑establishes baseline sensor values and ensures the computer can correctly manage engine and transmission functions. Flagship One supplies units that arrive pre‑programmed to the vehicle’s VIN, so the required relearn is already completed in the replacement part. Consequently, the installer only needs to perform the standard post‑install checks, and the a VIN-programmed replacement unit eliminates the need for additional flash programming at the shop.
Symptoms of a Failing PCM
When the PCM or ECM begins to fail in a 2014 Ford Expedition, drivers may notice a range of issues that affect everyday driving. Common signs include intermittent loss of power during acceleration, rough idle that shakes the cabin, or the engine stalling unexpectedly. The check‑engine light often illuminates, and scanning the vehicle will reveal a fault such as P0606 powertrain control module error, indicating an internal module malfunction. In some cases, the transmission may shift harshly or fail to engage, reflecting the PCM’s role in shift timing. A complete loss of communication with the scan tool can also occur, making diagnostics difficult without a functional computer. These symptoms typically prompt a thorough inspection of the control modules and related wiring before deciding on replacement.
Module Trouble Codes on the 2014 Ford Expedition
The following internal trouble codes have been documented for the 2014 Ford Expedition and relate directly to its control modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2014 Ford Expedition
- Maintain a healthy charging system to avoid voltage spikes that can damage the modules.
- Ensure all ground straps and connector pins are clean and tightly secured.
- Avoid using jump‑starts that introduce sudden voltage surges to the electrical system.
- Address any diagnostic trouble codes promptly to prevent prolonged stress on the computers.
- Inspect and replace corroded connector seals to keep moisture out of the module housing.
- Regularly service the battery and alternator to keep voltage within manufacturer specifications.
When faced with a faulty control module in your 2014 Ford Expedition, you can choose between a new factory‑spec unit or a refurbished replacement that meets the same performance standards. Both options require the same labor and relearn steps, but a refurbished part from Flagship One arrives VIN‑programmed, simplifying the post‑install process while delivering reliable operation.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 Ford Expedition with a lifetime warranty, free shipping and no core charge. The full Ford Expedition module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in a 2014 Ford Expedition restores the vehicle’s engine and transmission management, eliminating error codes and improving driveability. Consider a VIN‑programmed replacement to streamline the repair and keep your Expedition running smoothly.
