2012 Chevrolet Volt ECM/PCM Repair and Replacement Guide
The Engine Control Module and Powertrain Control Module in your 2012 Chevrolet Volt manage the 1.4L engine operation, hybrid system coordination, and transmission control. Module failure typically stems from voltage irregularities, internal component degradation, or software corruption, leading to drivability concerns.
Quick Summary
- The ECM and PCM are separate modules requiring individual replacement if faulty
- ECM replacement requires 1.9 hours R&R plus 0.5 hours relearn procedure
- PCM replacement also requires 1.9 hours R&R plus 0.5 hours relearn
- Factory reprogramming with special equipment is mandatory after ECM replacement
- Module-internal codes P0601-P1621 indicate various internal processor and memory failures
If your 2012 Chevrolet Volt is displaying check engine light symptoms, experiencing drivability issues, or has stored module-internal trouble codes, the Engine Control Module or Powertrain Control Module may require attention. This guide explains what these modules do, common failure indicators, replacement procedures, and the programming requirements necessary to get your vehicle running properly again. Understanding the distinction between the ECM and PCM, along with their respective functions, helps you make informed decisions about repairs.
What the PCM Does in a 2012 Chevrolet Volt
The Engine Control Module in your 2012 Chevrolet Volt serves as the primary computer responsible for managing the 1.4L engine’s fuel injection, ignition timing, emissions controls, and idle speed. The Powertrain Control Module handles transmission functions and coordinates the hybrid drivetrain operation. Both modules communicate extensively with various sensors throughout the vehicle to optimize performance and efficiency. In an extended-range electric vehicle like the Volt, these modules play a critical role in determining when the gasoline engine engages for generator mode versus direct propulsion. replacement engine computers for the Volt must be properly programmed to maintain the intricate balance between electric and gasoline power delivery that defines this vehicle’s hybrid operation.

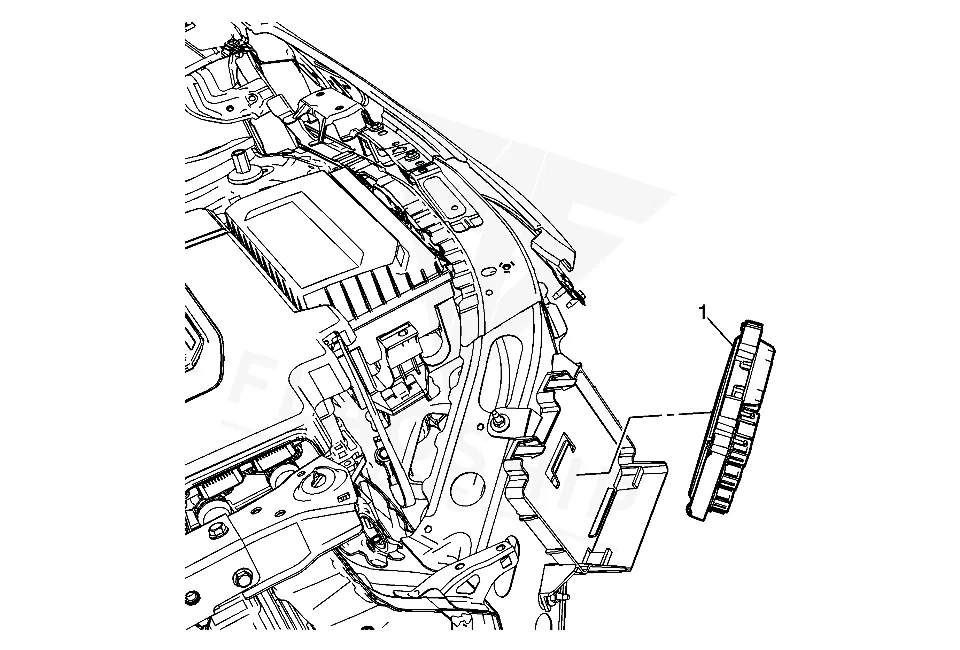

Where the PCM Is Located and What Replacement Involves
The Engine Control Module and Powertrain Control Module on the 2012 Chevrolet Volt are located within the vehicle’s central electronics housing. Replacement involves accessing the module bay, disconnecting the battery, removing the existing unit, and installing the new module. Labor guidelines indicate ECM removal and reinstallation requires 1.9 hours, followed by a 0.5-hour relearn procedure. Similarly, PCM removal and reinstallation takes 1.9 hours with an additional 0.5-hour relearn cycle. All mounting hardware must be secured to specification, and grounds must be clean and tight. The factory cautions that any aftermarket electrical accessories should connect to the 12V battery’s power and ground terminals directly rather than tapping into vehicle wiring, as voltage spikes from improper connections can damage control modules.
How to Reach the PCM on the 2012 Chevrolet Volt
- Remove the front bumper fascia.
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.9 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing either control module on your 2012 Chevrolet Volt, the factory procedure requires reprogramming with special diagnostic equipment and the correct software calibration specific to your vehicle. This programming step is mandatory—the module will not function properly without the appropriate software and calibration files loaded. Flagship One units arrive as a VIN-programmed replacement unit that comes pre-loaded with the correct calibration for your specific vehicle identification number, eliminating the need for you to arrange programming services separately after installation.
Symptoms of a Failing PCM
When the ECM or PCM fails on your 2012 Chevrolet Volt, common symptoms include no-start conditions, engine stalling, rough idle, and various misfire codes setting in the diagnostic system. The vehicle may display a persistent check engine light or enter limp-home mode, severely limiting performance. Scan tool communication with the module may be intermittent or completely absent in some failure modes. Transmission shifting may become erratic or the vehicle may refuse to shift out of park. internal memory check sum failure often indicates the module has detected an internal fault with its memory integrity, which typically requires replacement rather than repair. Other module-internal codes like P0602, P0603, P0604, P0606, P060A, P062F, and P1621 point to various processor, calibration, or memory issues within the control unit itself.
Module Trouble Codes on the 2012 Chevrolet Volt
Your 2012 Chevrolet Volt may store module-internal trouble codes indicating specific internal failures within the ECM or PCM. These codes, ranging from P0601 through P1621, represent processor faults, calibration memory errors, and internal control issues rather than faults in external sensors or wiring. When these codes appear, the module typically requires replacement as internal repairs are not practical.
Factory Service Bulletins Worth Knowing
Factory service bulletin #PIP5000B, issued September 12, 2013, addresses diagnostic tips for MIL lamp illumination and DTC P0797 setting in the transmission control module on extended-range electric vehicles similar to your 2012 Chevrolet Volt. This bulletin provides guidance for technicians diagnosing transmission-related fault codes that may overlap with PCM concerns. Always verify any repair procedure against the latest factory technical information available.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | (EREV) MIL DTC P0797 Set In The TCM Diagnostic Tips – (Sep 12, 2013) | — |
Protecting the PCM in Your 2012 Chevrolet Volt
- Maintain the 12V auxiliary battery in good condition—weak or failing batteries can cause voltage fluctuations that stress control modules
- Ensure all ground connections to the ECM and PCM remain clean, tight, and corrosion-free
- Avoid jump-starting from improper connection points; always use the designated battery terminals
- Address any check engine light or diagnostic codes promptly before they cascade into module damage
- Keep electrical connector seals intact and free from debris or moisture intrusion
- Have any aftermarket electrical accessories professionally installed using battery-powered connections rather than tapping existing wiring
Frequently Asked Questions
Can I replace the ECM or PCM on my 2012 Chevrolet Volt with a used unit from another vehicle?
A used or salvaged ECM or PCM will not function in your vehicle without reprogramming. The module must be calibrated with your specific VIN and vehicle configuration. Additionally, used modules may have unknown internal failures that could leave you stranded.
My Volt has P0601 code stored—does this always mean the module needs replacement?
Module-internal codes like P0601 generally indicate a failure within the ECM or PCM hardware itself. While wiring and sensor faults can sometimes trigger similar codes, P0601 specifically denotes an internal memory checksum failure that typically requires module replacement rather than sensor repairs.
Will my 2012 Chevrolet Volt run normally after ECM or PCM replacement?
Once the replacement module is installed and properly programmed with the correct calibration for your vehicle, the Volt should return to normal operation. The relearn procedures allow the new module to adapt to your vehicle’s specific sensors and components.
When your 2012 Chevrolet Volt requires ECM or PCM attention, you have two primary paths forward. Repairs involving specialized programming equipment and dealer service can be costly and time-consuming. Refurbished replacement units from a reputable supplier like Flagship One arrive pre-loaded with your VIN-specific calibration, potentially saving you significant expense on programming services. Consider your budget, timeline, and warranty preferences when deciding which approach suits your situation best.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Chevrolet Volt with a lifetime warranty, free shipping and no core charge. The full Chevrolet Volt module lineup covers other engine configurations as well.
Final Thoughts
The ECM and PCM in your 2012 Chevrolet Volt are essential computers that manage critical engine and hybrid functions. If failure symptoms appear or module-internal codes store, prompt attention prevents further damage. Whether you pursue dealer service or a quality replacement unit, ensuring proper programming and calibration restores your Volt to reliable operation.
