2016 Chevrolet Volt PCM and ECM Replacement Guide
The Powertrain Control Module (PCM) and Engine Control Module (ECM) in your 2016 Chevrolet Volt manage engine and hybrid system functions. Failure can cause no-start, stalling, or diagnostic trouble codes like P0601, P0602, and P0606.
Quick Summary
- The PCM and ECM are separate modules in the 2016 Chevrolet Volt, each with a 1.8-hour replacement book time.
- A relearn procedure takes 0.5 hours after replacement, and an ECM reset adds 0.3 hours.
- Factory caution: do not touch connector pins to avoid electrostatic discharge damage to the ECM.
- Reprogramming an existing ECM requires the EL-49642 SPS programming support tool.
- Service bulletin #PIP5373B addresses program ECM errors E4491 and E4423.
If your 2016 Chevrolet Volt is experiencing drivability issues, the Powertrain Control Module (PCM) or Engine Control Module (ECM) may be at fault. These modules control engine timing, fuel delivery, and hybrid system coordination. This guide covers what these modules do, where they are located, replacement labor times, and the factory programming procedure. You will also learn about common failure symptoms and how to protect the modules. Understanding these details helps you decide whether to repair or replace the module, and what to expect from a professional installation.
What the PCM Does in a 2016 Chevrolet Volt
The PCM and ECM in your 2016 Chevrolet Volt are the brains of the powertrain. The PCM oversees the hybrid system, managing the electric motor and battery interaction with the gasoline engine. The ECM specifically controls the 1.5L engine, handling ignition timing, fuel injection, and emissions. When either module fails, the vehicle may not start, run poorly, or set internal trouble codes. For a reliable fix, consider replacement engine computers for the 2016 Chevrolet Volt that are pre-programmed to your VIN, saving you the post-install reprogramming step.
Where the PCM Is Located and What Replacement Involves

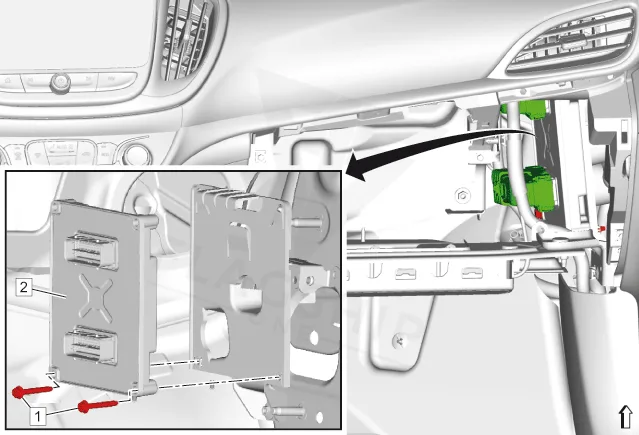

The PCM and ECM are separate modules in the 2016 Chevrolet Volt, typically located in the engine compartment near the battery or firewall. Replacement of either module carries a book labor time of 1.8 hours. After installation, a PCM or ECM relearn procedure is required, taking 0.5 hours. Additionally, an ECM reset adds 0.3 hours. The factory cautions against touching the connector pins to prevent electrostatic discharge damage. Always disconnect the electrical connectors before handling the module. These times reflect standard labor; actual time may vary based on access and vehicle condition.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
Programming Requirements After Replacement
After replacing the ECM in your 2016 Chevrolet Volt, the factory procedure requires reprogramming using the EL-49642 SPS programming support tool. This step ensures the module communicates correctly with the vehicle’s systems. However, when you purchase a VIN-programmed replacement unit from Flagship One, that programming is already completed. Your new module arrives ready to install, eliminating the need for the SPS tool and the associated labor time. This simplifies the repair and gets your Volt back on the road faster.
Symptoms of a Failing PCM
Common failure symptoms of the PCM or ECM in a 2016 Chevrolet Volt include no-start conditions, intermittent stalling, rough idle, and poor fuel economy. You may also notice the check engine light illuminated with codes such as anchor text (internal control module error). Other signs include loss of communication with a scan tool, transmission shifting issues, or the hybrid system not engaging. If you experience any of these, diagnosing the module early can prevent further drivability problems.
Module Trouble Codes on the 2016 Chevrolet Volt
The following trouble codes are documented as module-internal for the 2016 Chevrolet Volt. These codes indicate faults within the PCM or ECM itself, often requiring module replacement or reprogramming.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P060B | Module-internal fault | — |
| P062B | Module-internal fault | — |
| P062F | Internal EEPROM error | Full P062F guide → |
| P0630 | Module-internal fault | Full P0630 guide → |
Factory Service Bulletins Worth Knowing
Factory service bulletin #PIP5373B, dated June 11, 2018, addresses program ECM errors E4491 and E4423 for the 2016 Chevrolet Volt. This bulletin provides guidance on reprogramming the ECM to resolve these errors. If you encounter these specific error codes during diagnosis, following the bulletin’s procedure may correct the issue without replacing the module.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Program ECM Error E4491/E4423 – (Jun 11, 2018) | — |
Protecting the PCM in Your 2016 Chevrolet Volt
- Maintain a healthy charging system; low or high voltage can damage the PCM/ECM.
- Keep all ground connections and module connectors clean and tight to prevent voltage drops.
- Avoid jump-starting with a running vehicle; voltage spikes can harm the modules.
- Address diagnostic trouble codes promptly to prevent further module stress.
- Inspect connector seals and ensure they are intact to keep moisture and corrosion out.
When your 2016 Chevrolet Volt needs a PCM or ECM, you have two options: repair the existing module or replace it with a refurbished unit. Repair may be possible for some faults, but replacement often provides a more reliable solution. Flagship One offers pre-programmed modules that match your vehicle’s VIN, eliminating the need for dealer reprogramming. This saves time and ensures a direct fit.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Chevrolet Volt with a lifetime warranty, free shipping and no core charge. The full Chevrolet Volt module lineup covers other engine configurations as well.
