2011 Chevrolet Volt ECM and PCM Replacement Guide
In the 2011 Chevrolet Volt, the engine control module and powertrain control module manage engine timing, emissions, and drivetrain coordination. Failure of either unit can trigger loss of drive capability, erratic power delivery, or diagnostic trouble codes.
Quick Summary
- Engine and powertrain computers each require about 1.9 hours to remove and install.
- Both modules need an additional half hour for relearn procedures after fitting.
- Improper electrical connections can cause damage to the vehicle’s systems.
- Factory service bulletin PIP5000B addresses a specific TCM code issue.
When a 2011 Chevrolet Volt experiences power loss or warning indicators, the likely culprits are the engine control module (ECM) or the powertrain control module (PCM). Understanding what these computers do, how they are accessed, and what steps follow replacement can help you decide whether to repair or replace them. This guide outlines the essential information you need to evaluate the job and its implications for your vehicle.
What the PCM Does in a 2011 Chevrolet Volt
The ECM and PCM in the 2011 Chevrolet Volt act as the vehicle’s central processors, regulating fuel injection, ignition timing, and hybrid system coordination. They continuously monitor sensor data to keep the engine and electric drivetrain operating within design limits. A malfunction can lead to reduced performance, unexpected shutdowns, or illumination of the malfunction indicator lamp. Proper operation is critical for meeting emissions standards and ensuring smooth transitions between electric and gasoline power. The modules are integral to the car’s overall control strategy, and replacement engine modules for the Volt are often the most reliable way to restore full functionality.

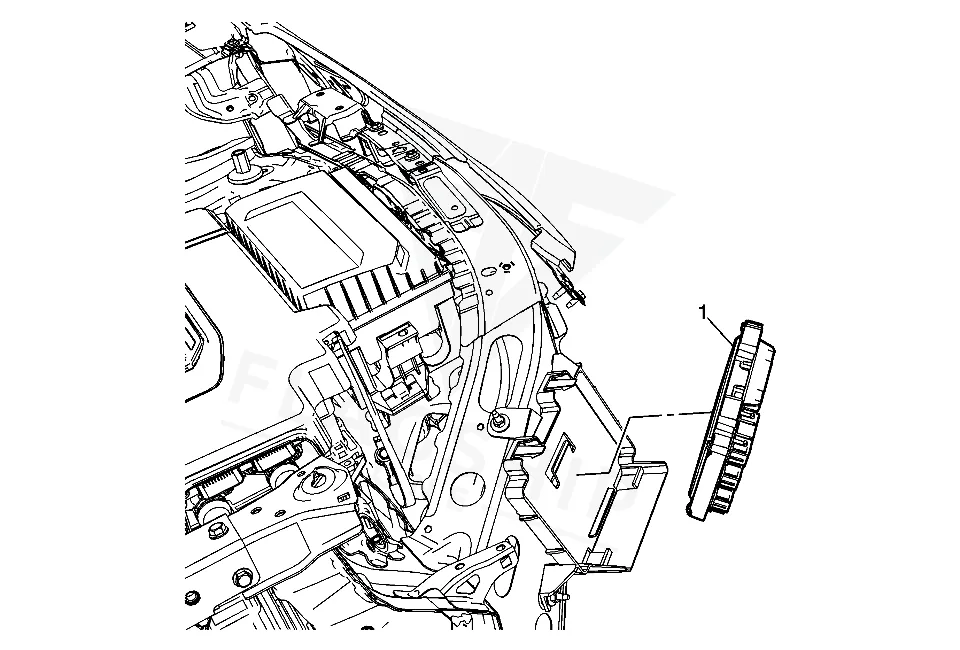

Where the PCM Is Located and What Replacement Involves
Both the ECM and PCM reside within the engine compartment, attached to the vehicle’s wiring harness. Removing either unit typically involves disconnecting the battery, unfastening mounting brackets, and unplugging electrical connectors. The factory book time lists 1.9 hours for the removal and reinstallation of each module, followed by a 0.5‑hour relearn procedure to synchronize the new unit with the vehicle’s control networks. Access may require removal of surrounding components to reach the mounting points, but no additional torque specifications are provided in the source data.
How to Reach the PCM on the 2011 Chevrolet Volt
- Remove the front bumper fascia.
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.9 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM or PCM, the factory mandates a reprogramming step that uses specialized equipment and the correct calibration data for the 2011 Chevrolet Volt. Flagship One supplies units that arrive already programmed to the vehicle’s VIN, so the required a VIN-programmed replacement unit eliminates the need for separate reprogramming in most cases.
Symptoms of a Failing PCM
Typical signs of a failing ECM or PCM include intermittent loss of power, rough idle, or the engine refusing to start. You may also notice the vehicle shifting erratically or displaying a warning light while the scan tool reports a fault such as processor failure. These symptoms often accompany a loss of communication between the diagnostic equipment and the control modules.
Module Trouble Codes on the 2011 Chevrolet Volt
The following trouble codes are documented for the 2011 Chevrolet Volt and relate directly to the internal operation of its control modules:
Factory Service Bulletins Worth Knowing
Service bulletin PIP5000B, dated September 12, 2013, provides diagnostic guidance for MIL illumination linked to TCM code P0797 on the extended-range electric vehicle system.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | (EREV) MIL DTC P0797 Set In The TCM Diagnostic Tips – (Sep 12, 2013) | — |
Protecting the PCM in Your 2011 Chevrolet Volt
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and clean all ground points and connector contacts regularly.
- Avoid exposing the vehicle to high‑voltage spikes from jump‑starts.
- Address any diagnostic trouble codes promptly to prevent escalation.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What are the labor hours for replacing the ECM in a 2011 Chevrolet Volt?
The factory labor guide estimates about 1.9 hours for removal and installation, plus an additional 0.5 hour for the relearn process.
Do I need special equipment to reprogram the PCM after replacement on my Volt?
Yes, the manufacturer requires specific tools and calibration data, but a VIN‑programmed replacement from Flagship One typically eliminates that step.
Which service bulletin covers a TCM code issue for the 2011 Volt?
Bulletin PIP5000B, released on September 12, 2013, addresses the MIL DTC P0797 condition for the vehicle’s hybrid system.
When the ECM or PCM fails in your 2011 Chevrolet Volt, you can either have the original unit repaired or choose a refurbished replacement. Both approaches aim to restore the vehicle’s control functions, but a refurbished unit may arrive pre‑programmed, reducing the need for additional calibration work.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2011 Chevrolet Volt with a lifetime warranty, free shipping and no core charge. The full Chevrolet Volt module lineup covers other engine configurations as well.
Final Thoughts
Replacing the engine or powertrain control module in a 2011 Chevrolet Volt can return your car to normal operation. Consider the labor time, programming requirements, and available replacement options before proceeding.
