2012 Chevrolet Traverse 3.6L ECM Replacement and Programming Guide
The Engine Control Module (ECM) in your 2012 Chevrolet Traverse manages fuel injection, ignition timing, and emissions. Failure can cause no-start, stalling, or trouble codes like P0601. It is mounted on a bracket in the engine compartment and requires careful handling to avoid electrostatic damage.
Quick Summary
- Labor time for ECM removal and installation is 0.9 hours, plus 0.5 hours for a relearn procedure if a new module is installed.
- Before removing the ECM, use a scan tool to capture the module’s data to preserve settings.
- A new ECM must be reprogrammed with the correct program and calibration using special equipment.
- Factory cautions warn against touching connector pins to prevent electrostatic discharge damage.
- Service bulletins #PIP4933D and #PIP4653D address part restrictions and internal trouble codes for this vehicle.
If your 2012 Chevrolet Traverse with the 3.6L engine is experiencing drivability issues such as stalling, no-start conditions, or a persistent check engine light, the Engine Control Module (ECM) may be at fault. The ECM is the central computer that governs engine performance, and when it fails, the vehicle may become unreliable or undrivable. This guide provides a thorough overview of the ECM’s role in your Traverse, the factory-recommended replacement procedure, and the programming requirements that follow installation. You will learn about the specific labor times involved, the critical steps to avoid damaging the new module, and how aftermarket solutions can simplify the process. Understanding these details helps you make an informed decision about repairing or replacing the ECM, saving time and avoiding common pitfalls. Whether you are a DIY owner or working with a shop, this information equips you with the knowledge needed to address ECM issues effectively.
What the PCM Does in a 2012 Chevrolet Traverse
The Engine Control Module (ECM) in your 2012 Chevrolet Traverse is a sophisticated computer that continuously monitors and adjusts engine operation. It receives data from sensors measuring oxygen levels, throttle position, coolant temperature, and crankshaft speed, then calculates the optimal fuel mixture, ignition timing, and variable valve timing for the 3.6L engine. The ECM also communicates with the transmission control module (TCM) to coordinate shift points and torque management. When the ECM functions correctly, the Traverse delivers smooth power, good fuel economy, and low emissions. However, if the module develops internal faults—such as memory errors or voltage regulation issues—it can trigger diagnostic trouble codes like P0601, P0603, or P062F. These codes indicate that the ECM itself is compromised, often requiring replacement rather than repair. The ECM is a sealed unit; internal failures typically cannot be fixed by cleaning or reflashing. When the ECM fails, you may need to consider replacement ECMs for the Traverse that are pre-programmed to match your vehicle’s VIN and calibration. Choosing a properly prepared module ensures that the engine runs correctly without the need for extensive dealer programming.
Flagship One keeps Chevrolet Traverse replacement engine computers in stock for exactly this failure pattern.

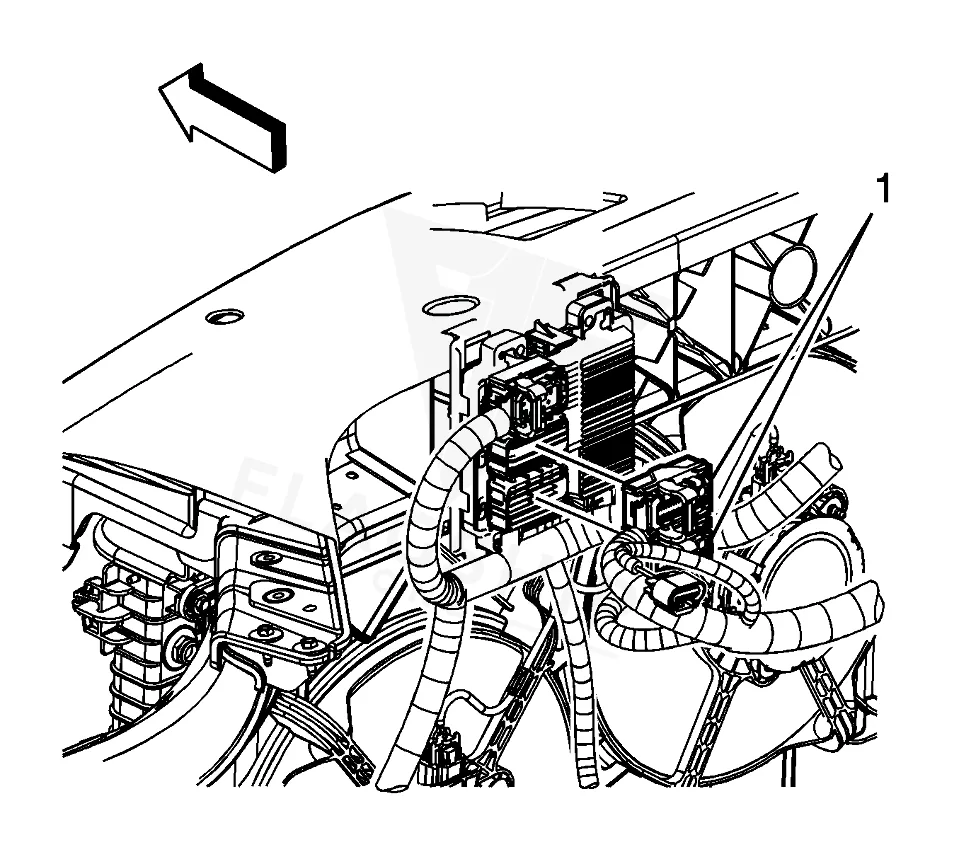

Where the PCM Is Located and What Replacement Involves
The ECM in the 2012 Chevrolet Traverse is located in the engine compartment, mounted on a bracket near the air cleaner assembly. To access it, you may need to remove the air intake duct and any covers that obstruct the module. The factory service procedure cautions against touching the connector pins to prevent electrostatic discharge damage. You should gently lift the retaining tab (1) and then lift the ECM up and out of the support brackets on the ECM bracket. The book labor time for ECM removal and installation is 0.9 hours. This time accounts for the access steps, disconnecting the electrical connectors, and carefully handling the module. After installation, the connectors must be fully seated and the retaining tab locked. No specific torque values are provided for the bracket fasteners, but they should be tightened securely. The process is straightforward for an experienced technician, but the electrostatic discharge caution is critical—static electricity can damage the sensitive electronics inside the ECM.
How to Reach the PCM on the 2012 Chevrolet Traverse
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the engine wiring harness middle and lower electrical connectors from.
- Disconnect the engine wiring harness upper electrical connector from the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the ECM in your 2012 Chevrolet Traverse, the factory procedure requires several steps. First, before removing the old module, you should use a scan tool to capture the ECM data, which preserves learned values and configuration. If a new ECM is installed, it must be reprogrammed with the correct program and calibration for the vehicle. This reprogramming requires special equipment, such as a factory-level scan tool, and access to the latest software files. The book time for an ECM relearn is 0.5 hours, but this only covers the basic procedure; if additional programming is needed, the time may increase. By choosing a VIN-programmed replacement unit from Flagship One, you eliminate the need for dealer-level programming. The module arrives with the correct software already loaded, so you can install it and perform only the simple relearn steps. This saves significant time and ensures the ECM is ready to communicate with your Traverse’s other modules.
Symptoms of a Failing PCM
A failing ECM in the 2012 Chevrolet Traverse can produce a range of symptoms that affect drivability and reliability. The most common signs include a no-start condition where the engine cranks but does not fire, intermittent stalling while driving, or rough idle and misfires. The check engine light may illuminate with codes that point to internal ECM faults. You might also experience poor acceleration, reduced fuel economy, or the transmission shifting erratically because the ECM cannot properly communicate with the TCM. In some cases, the scan tool may fail to communicate with the ECM entirely, indicating a dead module. If you encounter a internal ECM fault code, it indicates a memory error within the module. Other codes such as P0602, P0603, P0604, P0606, P060A, P062F, and P1621 are also documented for this vehicle and suggest various internal failures. Addressing these codes promptly is important because a faulty ECM can cause secondary damage to sensors or actuators.
Module Trouble Codes on the 2012 Chevrolet Traverse
The following diagnostic trouble codes are documented for the 2012 Chevrolet Traverse 3.6L ECM. These codes indicate internal module faults that typically require ECM replacement rather than repair.
Factory Service Bulletins Worth Knowing
Two service bulletins are relevant to the 2012 Chevrolet Traverse ECM. Bulletin #PIP4933D, dated July 11, 2012, addresses a part restriction for the E39 ECM, meaning that certain replacement modules may have limited availability or require special ordering. Bulletin #PIP4653D, dated June 20, 2012, covers diagnostic trouble codes P0601, P0603, P0604, P062F, or P1621 that are stored in the transmission control module (TCM). This suggests that ECM faults can affect TCM operation, leading to transmission-related symptoms. Both bulletins emphasize the importance of using the correct replacement parts and following proper diagnostic procedures.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | PQC Part Restriction – E39 ECM – (Jul 11, 2012) | — |
| — | DTC’s P0601 P0603 P0604 P062F Or P1621 (Stored in the TCM) – (Jun 20, 2012) | — |
Protecting the PCM in Your 2012 Chevrolet Traverse
- Maintain the charging system in good condition; a failing alternator can send voltage spikes that damage the ECM.
- Keep all engine ground connections clean and tight to ensure stable voltage reference for the module.
- Avoid jump-starting the vehicle with reversed polarity or using a fast charger that may produce voltage surges.
- Address any diagnostic trouble codes promptly, especially those related to the ECM, to prevent further issues.
- Inspect the ECM connector seals and wiring harness for corrosion or damage; replace any compromised components.
- When working on the electrical system, disconnect the battery negative cable to reduce the risk of short circuits.
Frequently Asked Questions
What are the most common symptoms of a bad ECM in a 2012 Chevrolet Traverse?
Common symptoms include no-start, stalling, rough idle, check engine light with internal fault codes like P0601, and loss of communication with the scan tool. The transmission may also shift poorly because the ECM and TCM share data.
Can I replace the ECM in my 2012 Traverse myself, or do I need a professional?
Replacing the ECM is a straightforward mechanical job that a skilled DIYer can handle, but you must follow the electrostatic discharge precautions. The main challenge is programming; if you use a VIN-programmed unit, you can avoid dealer visits.
What does the factory relearn procedure involve after ECM replacement?
The factory relearn takes about 0.5 hours and typically involves using a scan tool to reset the ECM and perform a crank relearn. If a new module is installed, it must be reprogrammed with the correct calibration, which requires special equipment.
Why does the service bulletin mention trouble codes stored in the TCM?
Bulletin #PIP4653D indicates that ECM internal faults can cause codes like P0601 to be stored in the TCM. This happens because the ECM and TCM communicate over the CAN bus; a faulty ECM can corrupt data, leading to transmission-related symptoms.
How do I know if my 2012 Traverse needs a new ECM or just a software update?
If the trouble codes are internal to the ECM (P0601, P0602, etc.), the module is likely defective and needs replacement. A software update may help if the codes are related to calibration issues, but internal memory errors usually require a new unit.
When your 2012 Chevrolet Traverse needs an ECM replacement, you have two main options: repair the existing module (which is rarely possible for internal faults) or install a refurbished or new unit. A refurbished ECM that has been tested and pre-programmed to your VIN offers a reliable, cost-effective solution. For the Traverse 3.6L, choosing a module that arrives ready to install saves the time and expense of dealer programming.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Chevrolet Traverse with a lifetime warranty, free shipping and no core charge.
Final Thoughts
The ECM in your 2012 Chevrolet Traverse 3.6L is a critical component that controls engine performance. When it fails, symptoms like no-start, stalling, and trouble codes such as P0601 are common. Replacement involves 0.9 hours of labor plus a 0.5-hour relearn, but using a VIN-programmed unit from Flagship One eliminates the need for dealer programming. This approach gets your Traverse back on the road quickly and reliably.
