2015 Chevrolet Traverse 3.6L Powertrain Control Module Replacement
The Powertrain Control Module in a 2015 Chevrolet Traverse 3.6L directs engine and transmission operation. When it fails, the vehicle can experience misfires, stalling, or loss of power, and diagnostic trouble codes may appear.
Quick Summary
- Replacement requires 0.9 hours of labor for the PCM.
- The ECM must be handled with care to avoid electrostatic discharge.
- A scan tool should capture data before removal.
- Flagship One units are VIN‑programmed, eliminating post‑install reprogramming.
- Relevant TSBs warn against reprogramming without updated calibration.
You may notice your 2015 Chevrolet Traverse 3.6L struggling to start, stalling at idle, or showing unexplained warning lights. These symptoms often point to the Powertrain Control Module, the central computer that manages engine and transmission functions. Replacing this module can restore smooth operation and prevent further damage. In this guide you’ll learn where the PCM sits, how to remove it safely, what the factory reprogramming steps involve, and how to recognize the warning signs of a failing unit. By understanding the process and the common failure modes, you can decide whether a repair or a refurbished replacement is the best path for your vehicle.
What the PCM Does in a 2015 Chevrolet Traverse
The Powertrain Control Module (PCM) in a 2015 Chevrolet Traverse 3.6L is the brain that coordinates fuel injection, ignition timing, and transmission shifts. It receives input from sensors such as throttle position, engine temperature, and wheel speed, then calculates the optimal operating parameters. replacement engine computers for the 2015 Chevrolet Traverse 3.6L The PCM’s reliability is critical; a malfunction can lead to engine misfires, stalling, or a loss of power. When the module’s firmware becomes corrupted or its internal electronics fail, the vehicle may fail to start or may run erratically, and diagnostic trouble codes like P0601 can be logged. Maintaining the PCM’s health ensures consistent performance and protects the vehicle’s other systems from cascading failures.
Flagship One keeps Chevrolet Traverse replacement engine computers in stock for exactly this failure pattern.
Where the PCM Is Located and What Replacement Involves

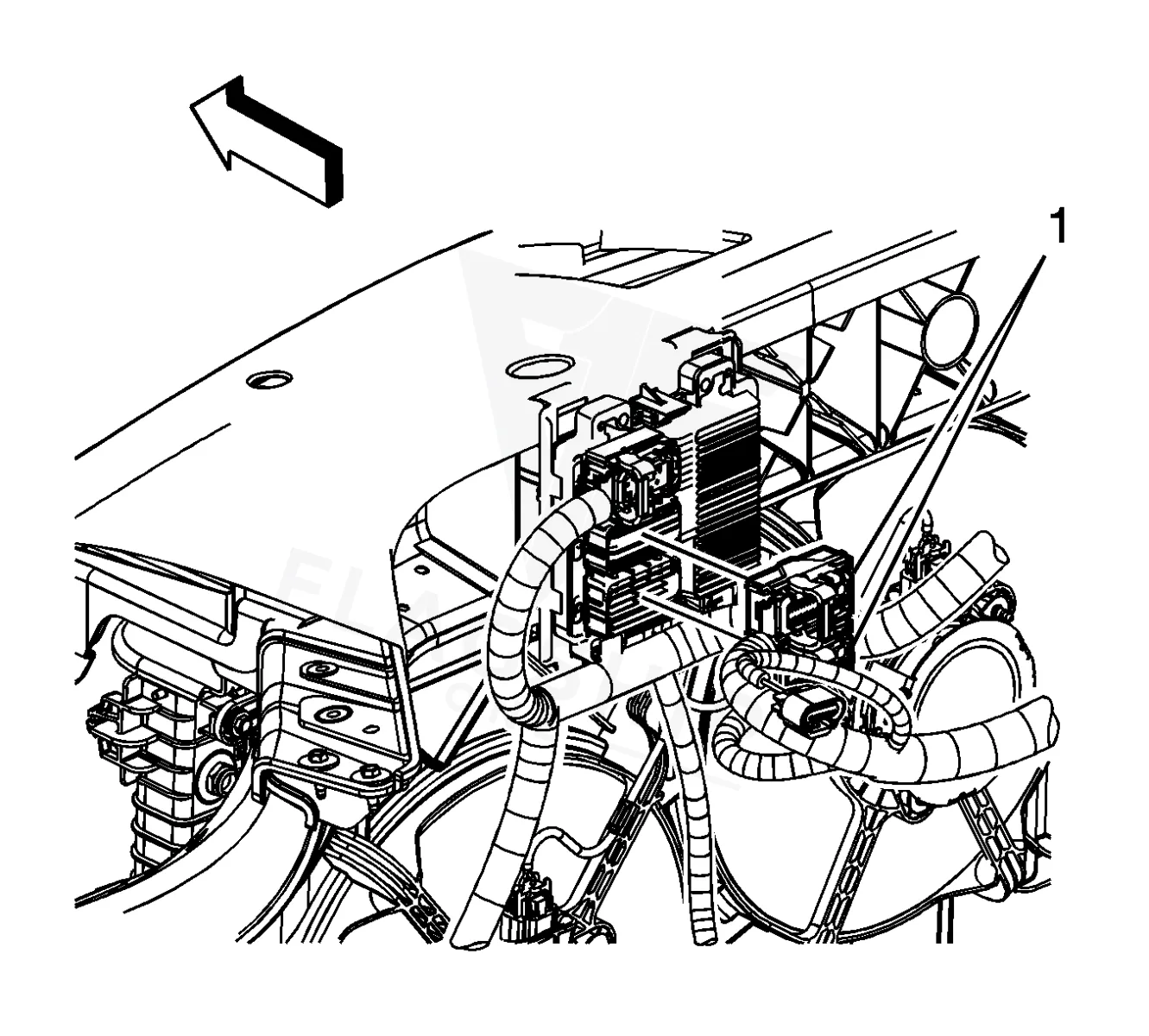

The Powertrain Control Module is mounted within the engine bay, directly behind the radiator support. To replace it, you first lift the retaining tab labeled (1) and gently raise the ECM out of its brackets. The removal takes approximately 0.9 hours of labor. When installing a new unit, you must align the connector pins carefully, avoid touching them, and secure the module in place. No torque specifications are provided, but the procedure follows the standard installation steps for this model.
How to Reach the PCM on the 2015 Chevrolet Traverse
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the engine wiring harness middle and lower electrical connectors from.
- Disconnect the engine wiring harness upper electrical connector from the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Symptoms of a Failing PCM
When the PCM in a 2015 Chevrolet Traverse 3.6L begins to fail, you may notice a variety of symptoms. Common issues include the engine failing to start, stalling when idling, and irregular acceleration. The vehicle may also display a check engine light and log internal codes such as Powertrain Control Module Programming Error that indicate a communication or programming fault. Other signs are rough idle, loss of power during acceleration, and abnormal transmission shifting. If you experience any of these problems, a PCM diagnostic is warranted.
Module Trouble Codes on the 2015 Chevrolet Traverse
The following table lists the internal trouble codes that can be generated by the Powertrain Control Module in a 2015 Chevrolet Traverse 3.6L. These codes help technicians identify specific faults within the module itself.
Factory Service Bulletins Worth Knowing
Service Bulletin #17-NA-242 (Jul 24 2017) warns against reprogramming a module with its current calibration and advises caution during calibration changes. Bulletin #PIT5436A (Nov 24 2014) provides a diagnostic tip for enabling OnStar WIFI after a VCIM replacement or reprogramming event.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Information on Changes to SPS that Warn/Prohibit Reprogramming a Module With Its Current Calibr | — |
| — | Diagnostic Tip: OnStar WIFI Enable After VCIM Replacement Or Reprogramming Event – (Nov 24, 201 | — |
Protecting the PCM in Your 2015 Chevrolet Traverse
- Keep the battery charging system in good condition to prevent voltage spikes.
- Ensure all ground connections to the PCM are clean and secure.
- Avoid exposing the module to high static electricity by using a grounded tool.
- Address diagnostic trouble codes promptly to prevent further damage.
- Verify that connector seals remain intact to protect against moisture.
- Use a quality scan tool to capture ECM data before removal.
Frequently Asked Questions
What should I expect if my 2015 Chevrolet Traverse 3.6L PCM is replaced?
A replacement PCM will restore normal engine and transmission operation. The module is installed in the engine bay behind the radiator support, and the labor time is about 0.9 hours. No additional reprogramming is required because the unit is VIN‑programmed.
How can I tell if my PCM is the problem rather than a sensor issue?
If the vehicle displays codes like P0601 and experiences stalling or misfires that are not resolved by sensor checks, the PCM is likely at fault. A thorough diagnostic scan will confirm if the module is generating internal errors.
Are there any risks to handling the PCM during replacement?
Yes. The ECM contains sensitive electronics; touching the connector pins can cause electrostatic discharge damage. The removal procedure instructs you to lift the retaining tab and gently lift the ECM out of its brackets.
Will a refurbished PCM work the same as a new one?
A refurbished PCM that is fully tested and VIN‑programmed can perform just as well as a new unit, provided it is installed correctly and no other components are damaged.
Do I need to update the firmware after installation?
No. Flagship One units come pre‑programmed with the correct firmware for the 2015 Chevrolet Traverse 3.6L, so the factory reprogramming step is unnecessary.
Choosing between a professional repair and a refurbished replacement depends on your vehicle’s condition and your budget. A certified mechanic can remove and install a new PCM in under an hour, while a refurbished unit offers a cost‑effective alternative that still meets OEM standards. Both options will restore your 2015 Chevrolet Traverse 3.6L to reliable operation.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2015 Chevrolet Traverse with a lifetime warranty, free shipping and no core charge.
Final Thoughts
If you own a 2015 Chevrolet Traverse 3.6L and are facing PCM‑related issues, you have proven solutions that keep the engine running smoothly. Consider a replacement PCM or a refurbished unit that’s already VIN‑programmed for hassle‑free installation.
