2011 Hyundai Sonata Hybrid ECM and PCM Replacement Guide
In the 2011 Hyundai Sonata Hybrid, the engine control module (ECM) and powertrain control module (PCM) manage fuel delivery, ignition timing, and hybrid system coordination. Failure of either unit can interrupt communication, trigger fault codes, and prevent the vehicle from starting or shifting properly.
Quick Summary
- ECM removal is accessed beside the air cleaner assembly.
- Factory reinstall torque for ECM bolts is 9.8 to 11.8 N·m.
- ECM replacement typically requires 0.4 hours of labor.
- PCM replacement also needs about 0.4 hours of labor.
- A post‑install relearn of 0.5 hours is standard for each module.
When a 2011 Hyundai Sonata Hybrid experiences powertrain glitches, the engine and powertrain control modules often become the focus of diagnosis. Understanding how these computers function, where they sit, and what steps follow a swap helps you decide between a new OEM unit and a refurbished alternative. This overview equips you with the essential facts to assess labor, torque, and programming requirements for a successful replacement.
What the PCM Does in a 2011 Hyundai Sonata Hybrid
The ECM and PCM in the 2011 Hyundai Sonata Hybrid act as the vehicle’s electronic brain, interpreting sensor data to control fuel injection, ignition timing, and hybrid power distribution. Their coordination ensures smooth acceleration, efficient fuel use, and proper gear shifts. Maintaining accurate data flow is critical because any disruption can trigger fault codes or loss of driveability. 2011 Hyundai Sonata Hybrid ECM plays a central role in both engine and hybrid system management.

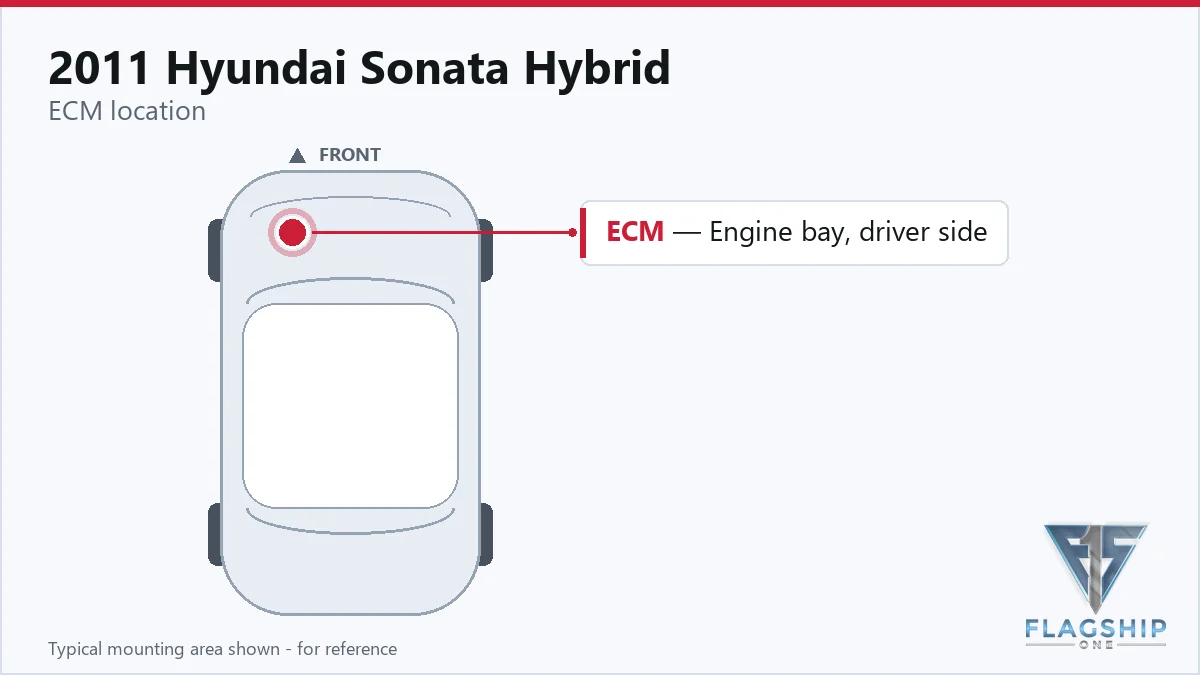

Where the PCM Is Located and What Replacement Involves
The factory removal procedure reaches the control module positioned next to the air cleaner assembly. To replace the ECM, you disconnect the electrical connector, remove the mounting bolts, and install the new unit using a torque range of 9.8 to 11.8 N·m. The PCM follows a similar access path and bolt pattern. Labor time for each removal and reinstall is listed as 0.4 hours, with an additional 0.3 hours for a reset or 0.5 hours for a relearn after installation.
How to Reach the PCM on the 2011 Hyundai Sonata Hybrid
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Disconnect the ECM Connector.
- Remove the air cleaner assembly.
- Remove the mounting bolts/nut, and then remove the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Powertrain Control Module R&R | All configurations | 0.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the ECM or PCM is installed, the factory process calls for a relearn routine that takes about 0.5 hours to complete. Flagship One units arrive already VIN‑programmed, so that step is already satisfied. a VIN-programmed replacement unit eliminates the need for the technician to perform the relearn manually.
Symptoms of a Failing PCM
Typical signs of a failing ECM or PCM in the 2011 Hyundai Sonata Hybrid include a no‑start condition, rough idle, unexpected stalling, and loss of hybrid system engagement. Diagnostic scans often reveal communication failures such as communication fault or related powertrain codes, and you may notice delayed gear shifts or erratic throttle response.
Module Trouble Codes on the 2011 Hyundai Sonata Hybrid
The following internal trouble codes are documented for the 2011 Hyundai Sonata Hybrid when the control modules encounter issues:
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Factory Service Bulletins Worth Knowing
Technical Service Bulletin #04-36-019 addresses fuel system concerns during ECM and PCM replacement, noting that VIN and PCM data must be written correctly to avoid post‑repair drivability problems.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-36-019 | TSB • Fuel System • [04-36-019] 2005MY ECM AND PCM VIN WRITING DURING CONTROL MODULE REPLACEMEN | — |
Protecting the PCM in Your 2011 Hyundai Sonata Hybrid
- Maintain a healthy charging system to supply stable voltage.
- Inspect and clean all module grounds and connector pins regularly.
- Avoid high‑voltage spikes from jump‑starts or accessory misuse.
- Promptly address any diagnostic codes that appear.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What labor is required to replace the ECM on a 2011 Hyundai Sonata Hybrid?
Factory book time lists 0.4 hours for removal and reinstall, plus 0.5 hours for the required relearn procedure.
Do I need special tools to torque the ECM bolts on the 2011 Hyundai Sonata Hybrid?
The ECM bolts should be tightened within a range of 9.8 to 11.8 N·m, which can be achieved with a standard torque wrench.
Can a refurbished ECM be used in place of an OEM unit for the 2011 Hyundai Sonata Hybrid?
A refurbished unit that is VIN‑programmed meets the same post‑install requirements as a new OEM part, provided it passes functional testing.
When the control module fails, you can choose a new OEM replacement or a Flagship One refurbished unit that arrives VIN‑programmed and ready for installation. Both options require the same labor steps, but the refurbished choice often reduces cost while still meeting the factory‑specified torque and programming standards for the 2011 Hyundai Sonata Hybrid.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2011 Hyundai Sonata Hybrid with a lifetime warranty, free shipping and no core charge. The full Hyundai Sonata Hybrid module lineup covers other engine configurations as well.
Final Thoughts
Replacing the ECM or PCM in your 2011 Hyundai Sonata Hybrid restores essential engine and hybrid functions. Consider a Flagship One refurbished module to balance reliability and value, and follow the documented procedures for a successful repair.
